Oil Level Indicator And Tube Removal/Installation - 2.3L

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

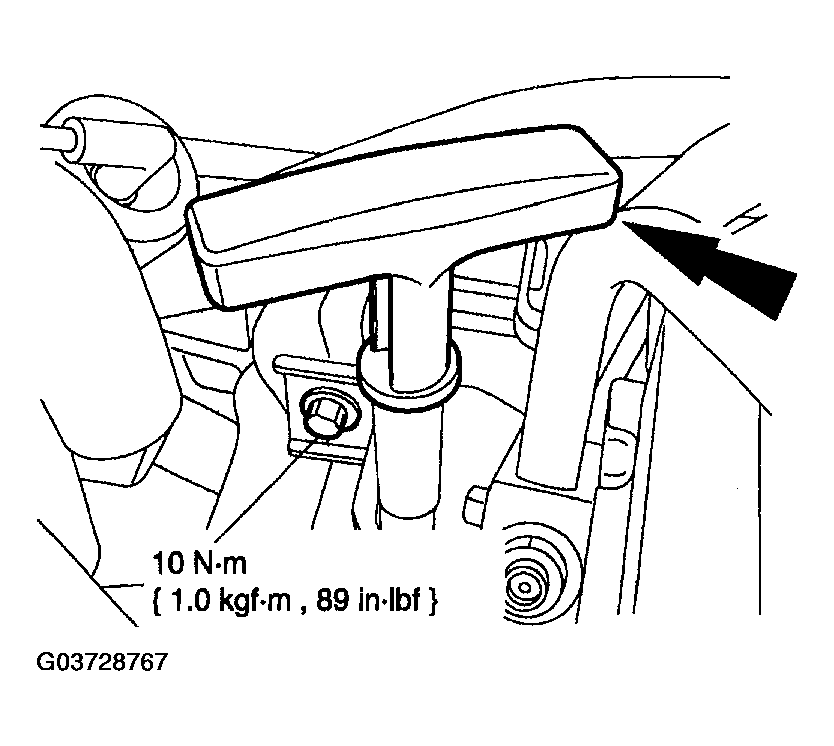

Fig 1: Removing Oil Level Indicator (2.3L) - With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Remove the oil level indicator and the upper retaining bolt.
Raise the vehicle on a hoist. See LIFTING .

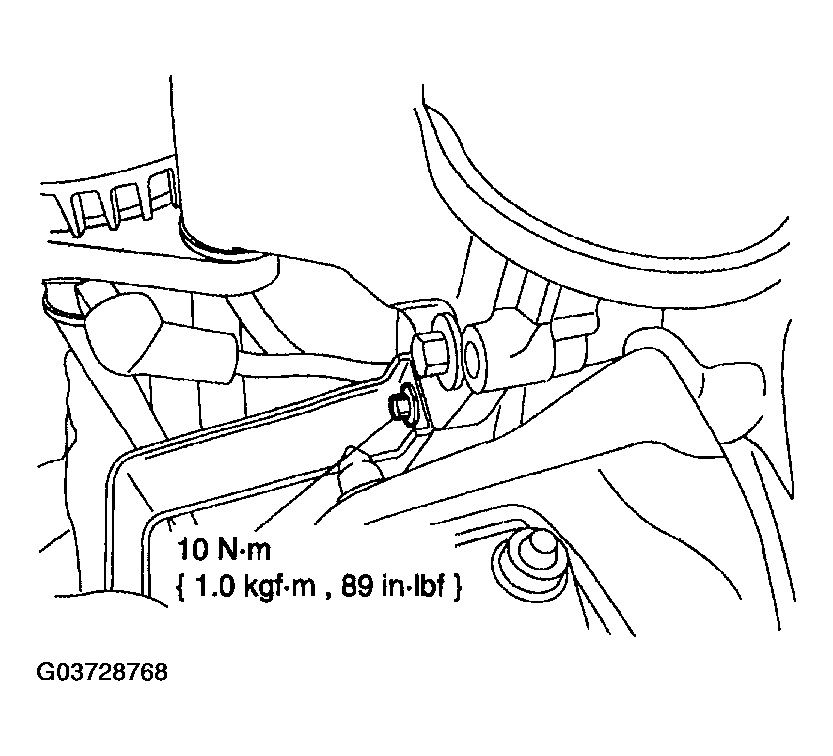

Fig 2: Removing Oil Level Indicator Tube - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the oil level indicator tube.
- Remove the bolt.
- Remove the oil level indicator tube.

  Fig 3: Removing O-Ring From Indicator Ring
  Courtesy of MAZDA MOTORS CORP.
Remove the O-ring from the indicator ring.
NOTE:
- Apply clean engine oil to the O-ring before installation of the indicator tube.
To install, reverse the removal procedure.
