Valve Cover (RH) Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

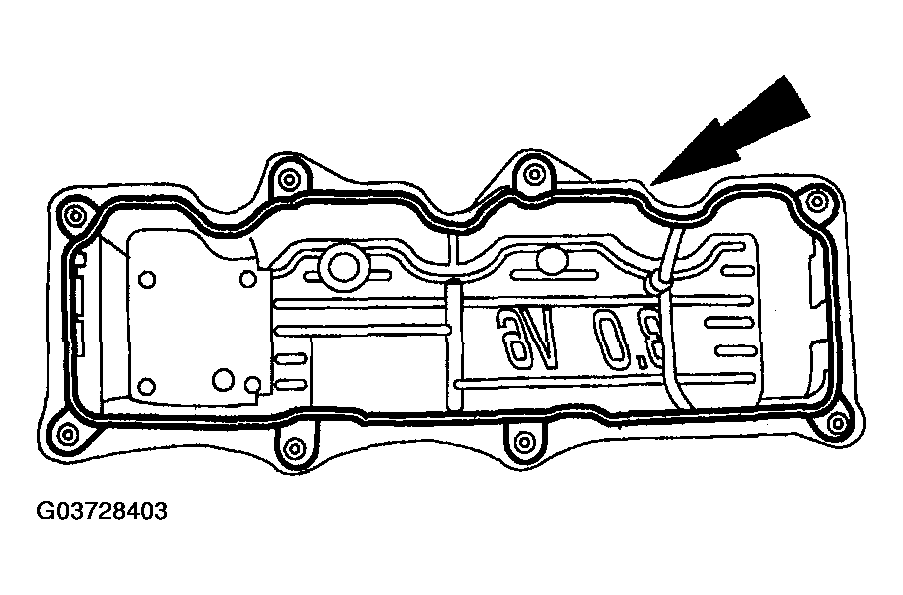

Fig 1: Identifying Valve Cover (RH) Gasket
Courtesy of MAZDA MOTORS CORP.

Clean all the mating surfaces.

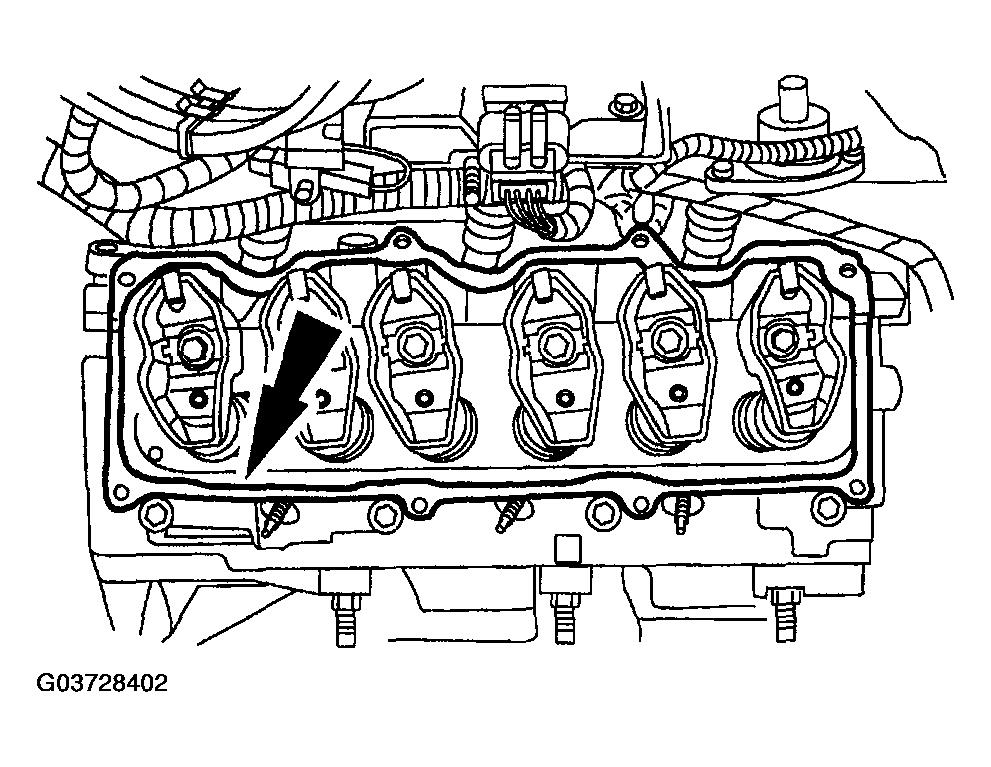

Fig 2: Cleaning All Mating Surfaces
Courtesy of MAZDA MOTORS CORP.
Install the valve cover gasket if removed.

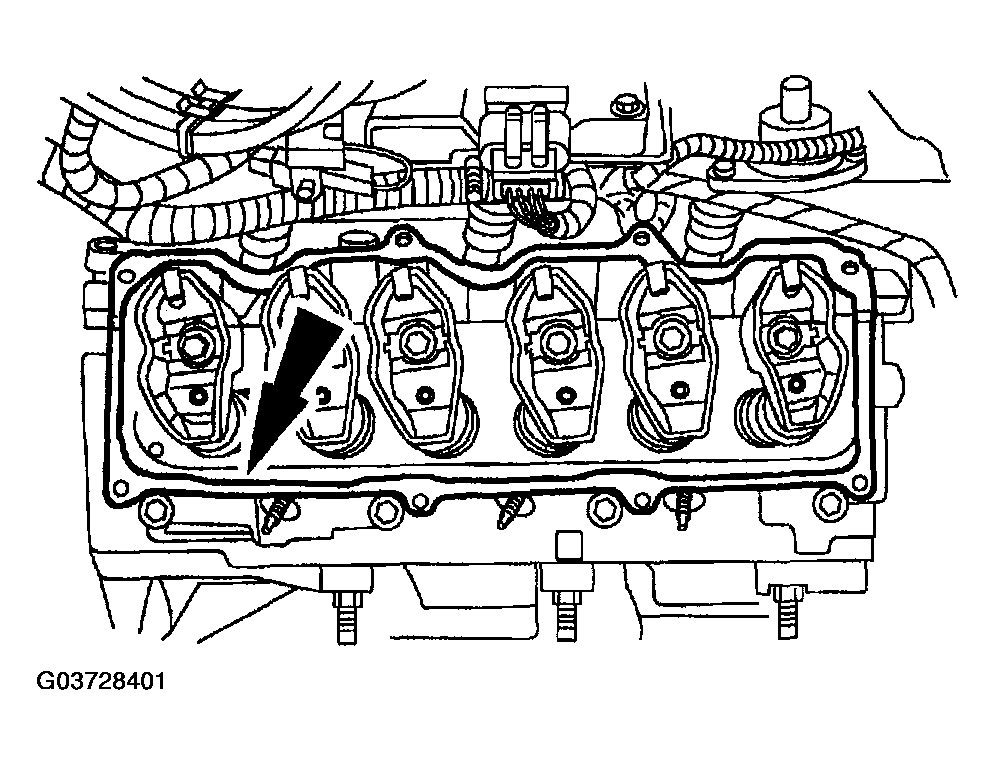

Fig 3: Installing Valve Cover Gasket
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If the valve cover is not installed within four minutes, remove the sealant and reapply.
Apply a bead of silicone in two places where the cylinder head and lower intake manifold meet.

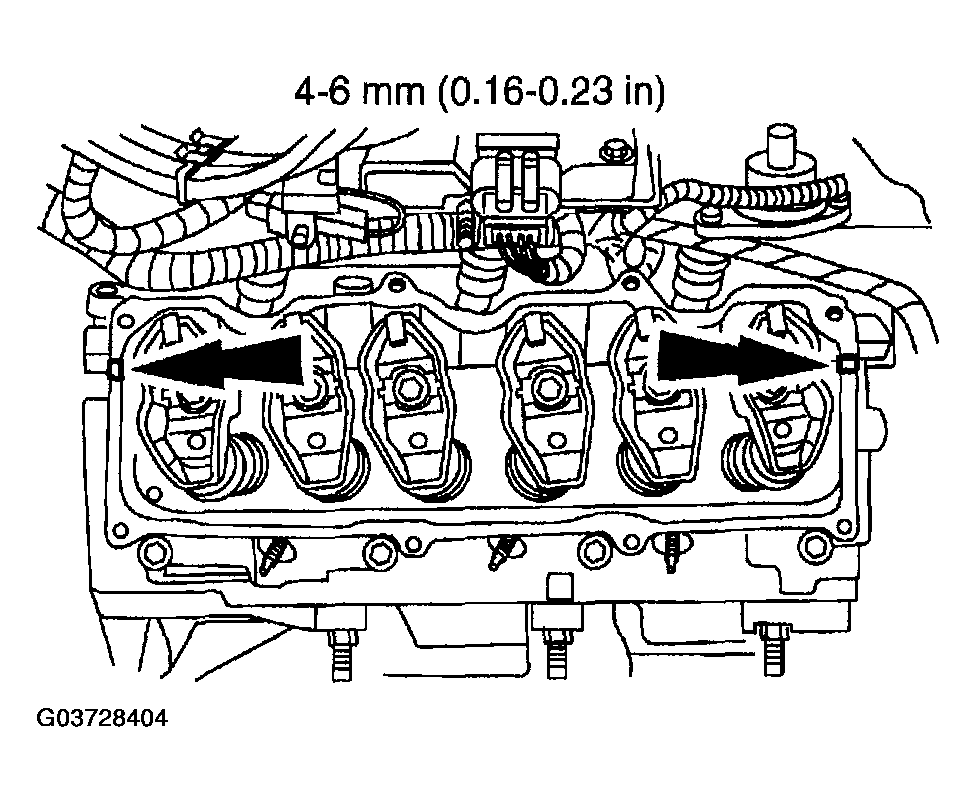

Fig 4: Applying Bead Of Silicone In Two Places
Courtesy of MAZDA MOTORS CORP.
Install the valve cover.
- Position the valve cover.
- Tighten the eight bolts in the sequence shown.

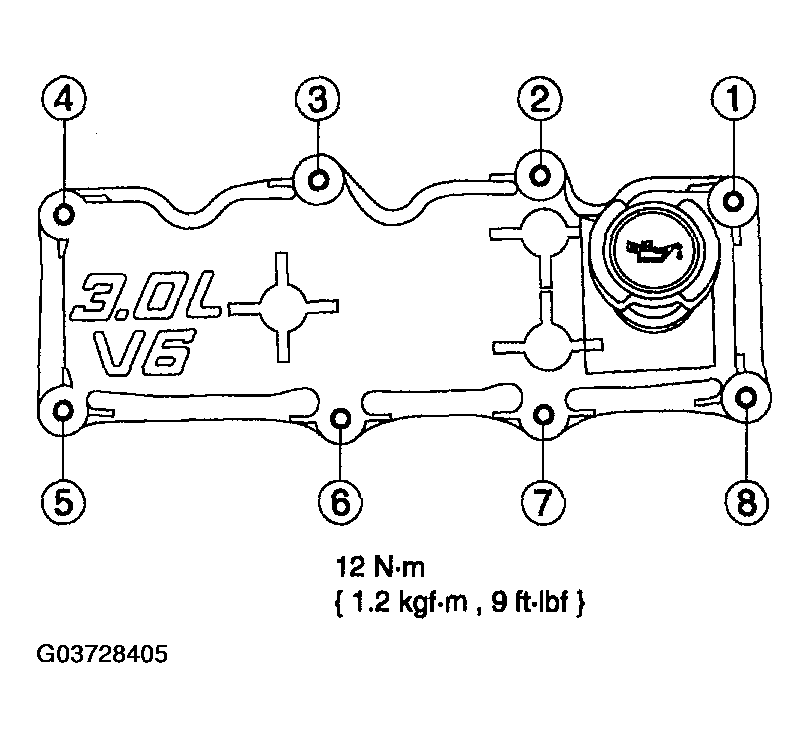

  Fig 5: Installing Valve Cover Bolts In Sequence - With Torque Specifications
  Courtesy of MAZDA MOTORS CORP.
