Valve Cover - (LH) Removal/Installation - 3.0L: Notes

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper intake manifold. See INTAKE MANIFOLD UPPER REMOVAL/INSTALLATION - 3.0L .
Disconnect the left hand spark plug wireholders.

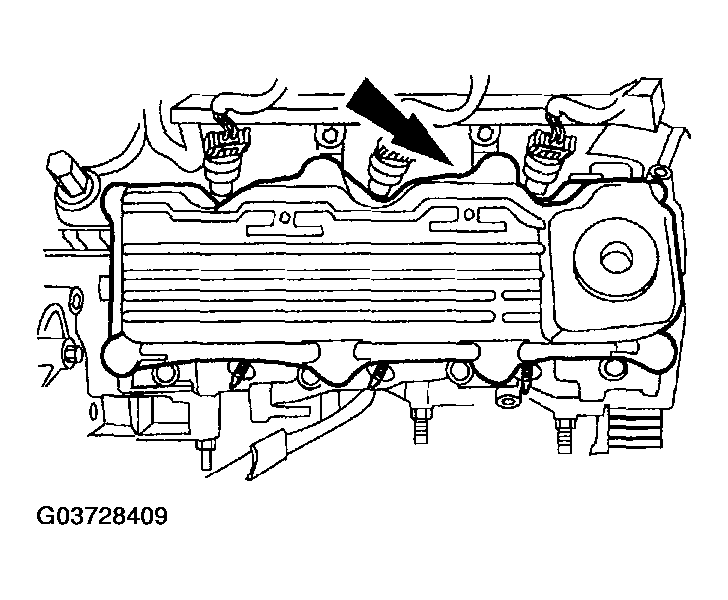

Fig 1: Disconnecting Left Hand Spark Plug Wireholders
Courtesy of MAZDA MOTORS CORP.
Disconnect the engine control harness from the valve cover.

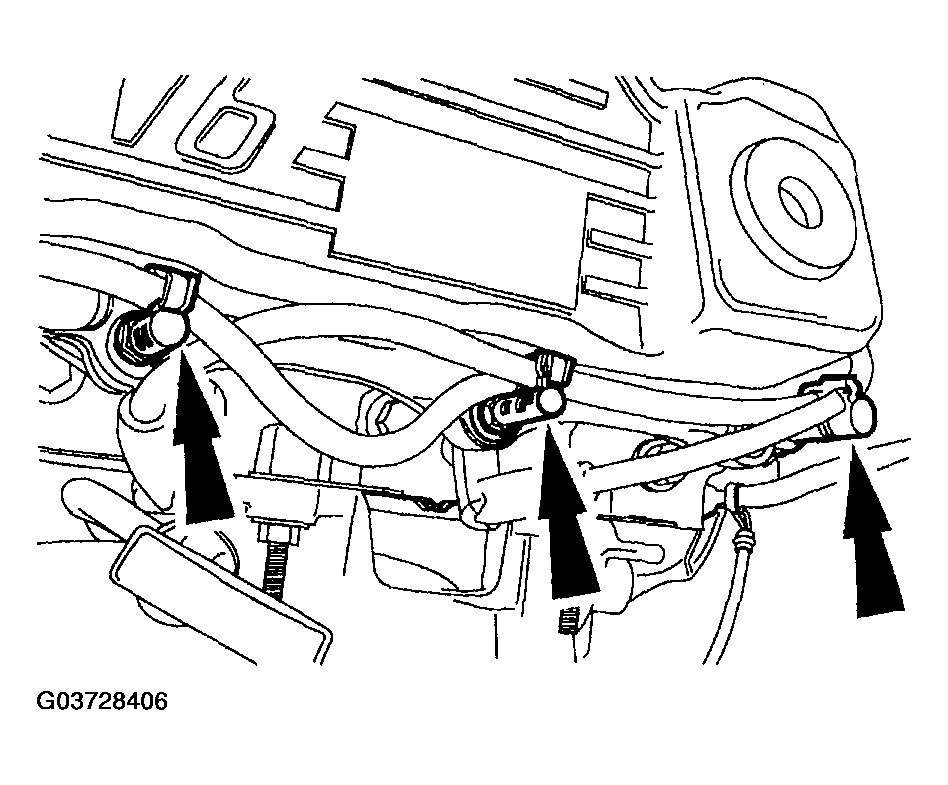

Fig 2: Disconnecting Engine Control Harness From Valve Cover
Courtesy of MAZDA MOTORS CORP.
Remove the three bolts and the five stud bolts.

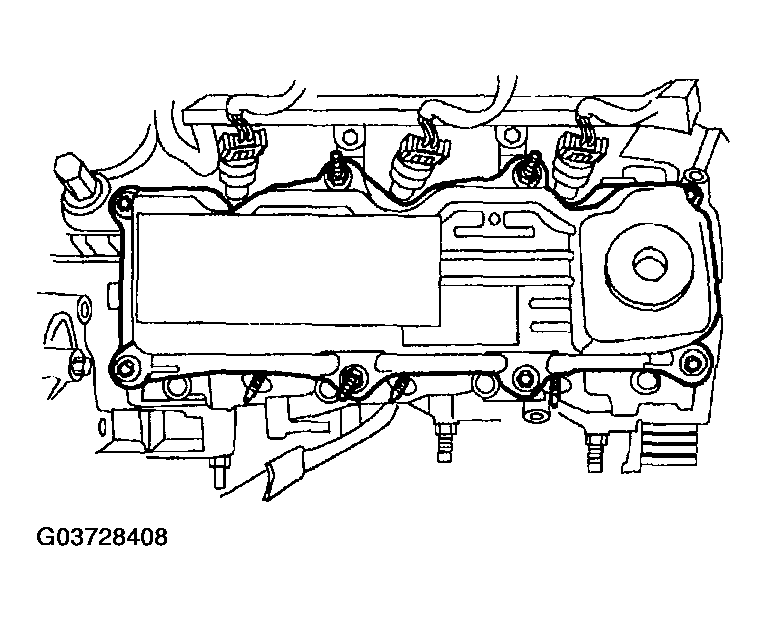

Fig 3: Removing Bolts & Stud Bolts
Courtesy of MAZDA MOTORS CORP.
NOTE:
- To prevent stretching the valve cover gasket, loosen silicone gasket and sealant from the cylinder head by sliding a flat knife between the valve cover gasket and cylinder head.
Remove the valve cover.

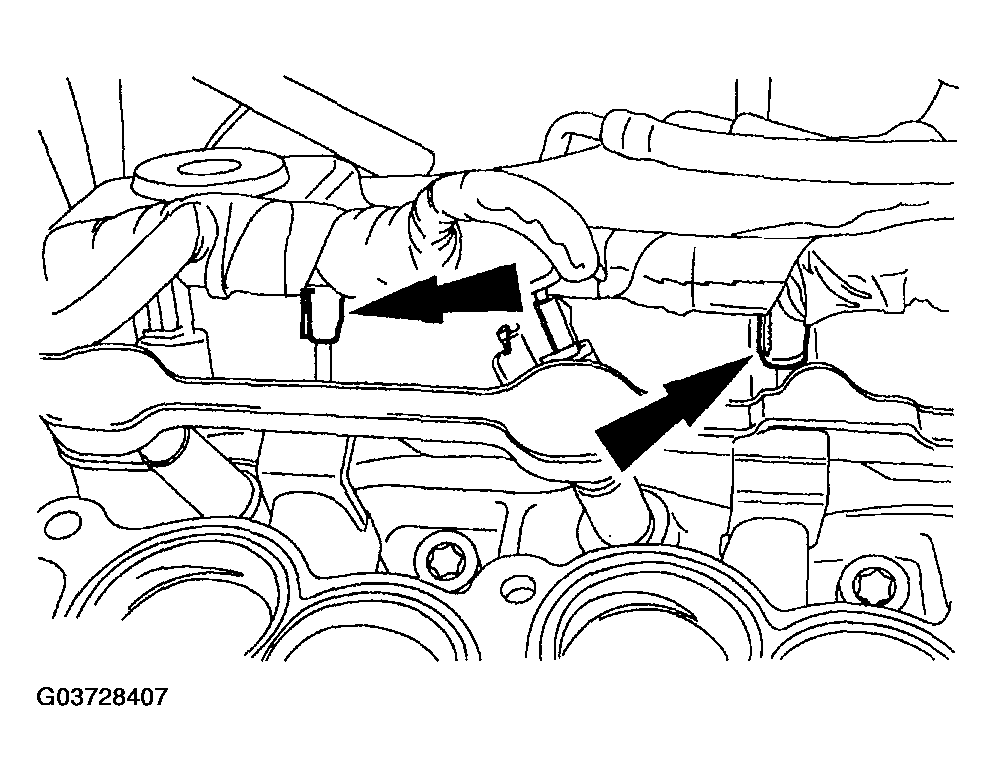

Fig 4: Removing Valve Cover
Courtesy of MAZDA MOTORS CORP.
Remove the valve cover gasket, if required.

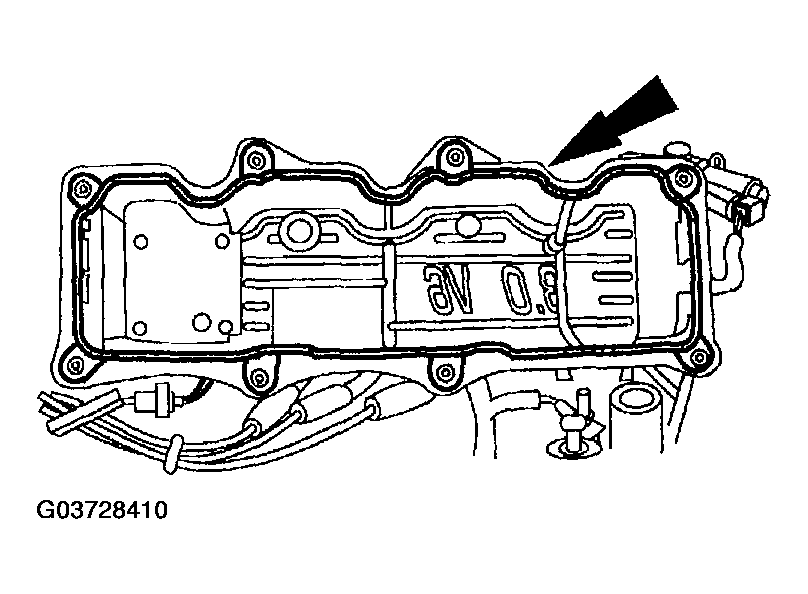

Fig 5: Removing Valve Cover Gasket
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
