Timing Chain Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the timing marks.

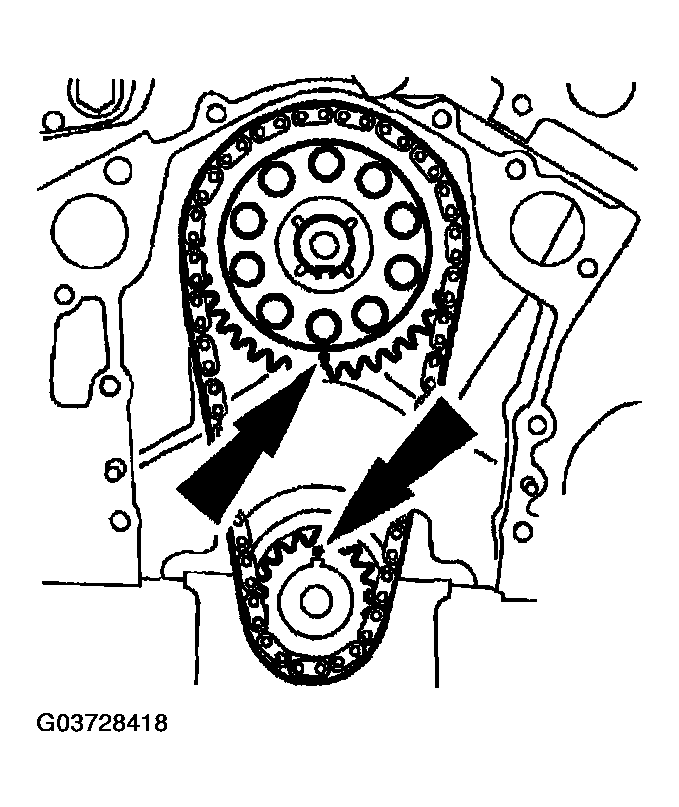

    Fig 1: Aligning Timing Marks
    G03728418Courtesy of MAZDA MOTORS CORP.
  2. Install the timing chain, camshaft sprocket and crankshaft sprocket as an assembly.
  3. Install the bolt.

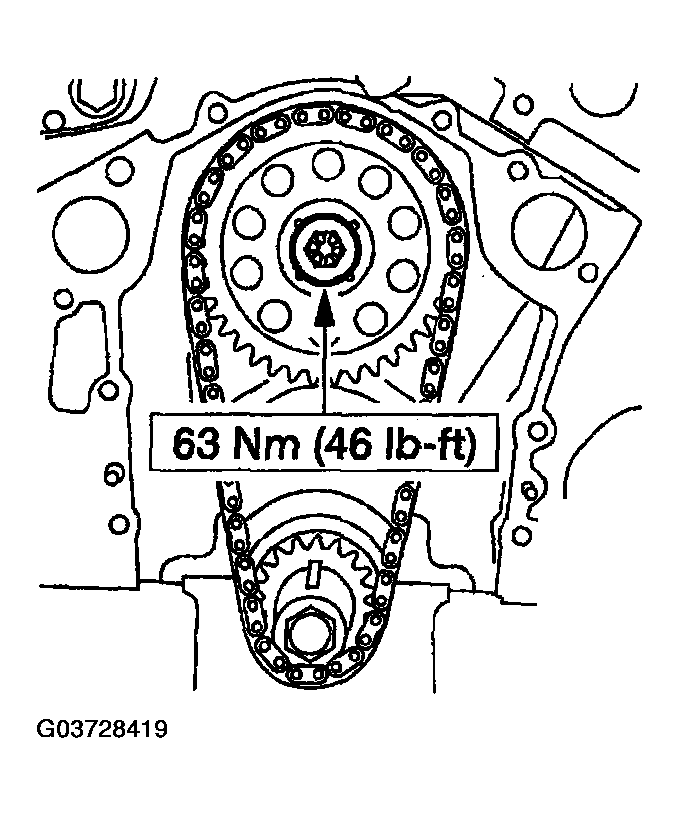

    Fig 2: Installing Bolt - With Torque Specification
    G03728419Courtesy of MAZDA MOTORS CORP.
