Timing Chain Removal/Installation - 3.0L: Notes

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front cover. See ENGINE FRONT COVER REMOVAL/INSTALLATION - 3.0L .
  3. Rotate the crankshaft and align the timing marks.

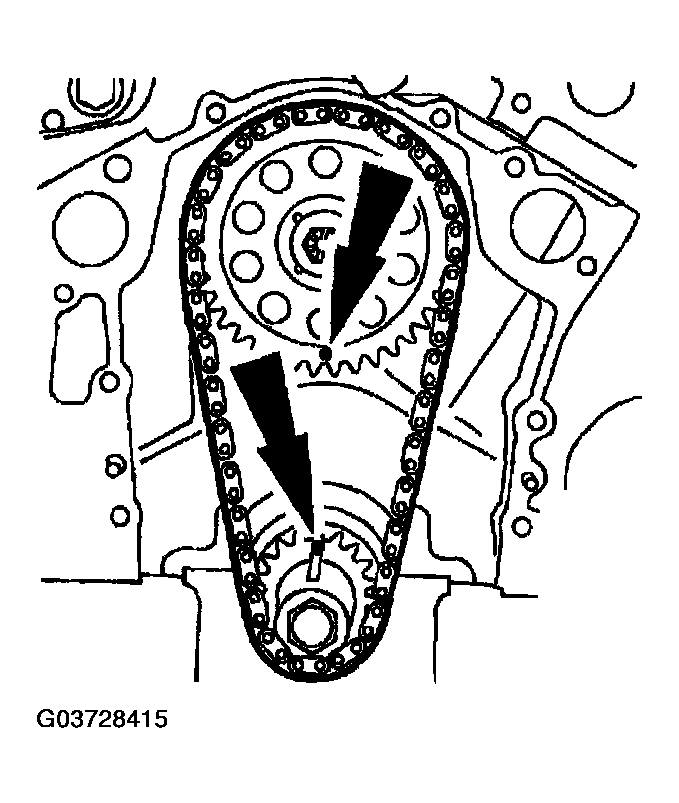

    Fig 1: Aligning Timing Marks
    G03728415Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.

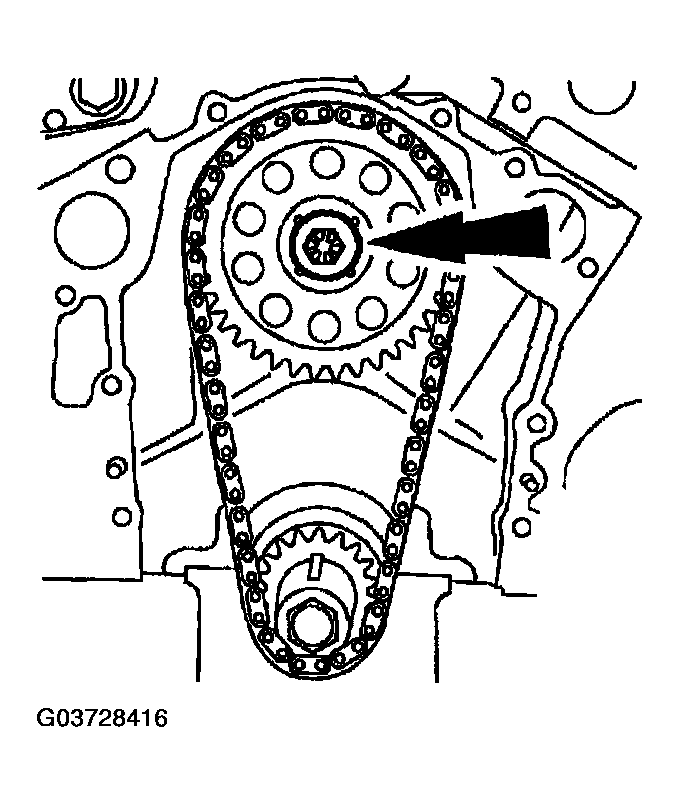

    Fig 2: Removing Bolt
    G03728416Courtesy of MAZDA MOTORS CORP.
  5. Remove the timing chain, camshaft sprocket and crankshaft sprocket as an assembly.

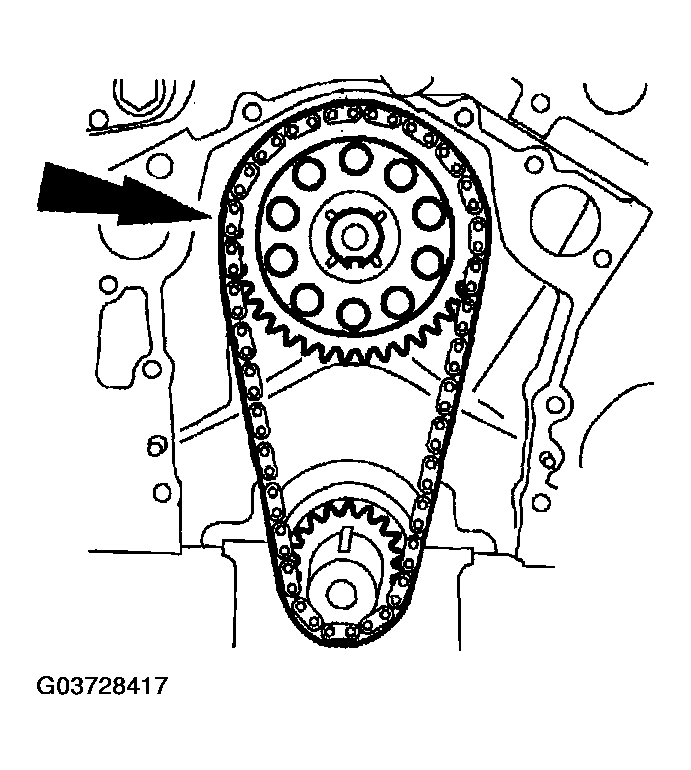

    Fig 3: Removing Timing Chain, Camshaft Sprocket And Crankshaft Sprocket
    G03728417Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
