Flywheel Removal/Installation - 3.0L: Removal

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch. See CLUTCH DISC AND COVER REMOVAL/INSTALLATION .
  2. Remove the flywheel bolts.

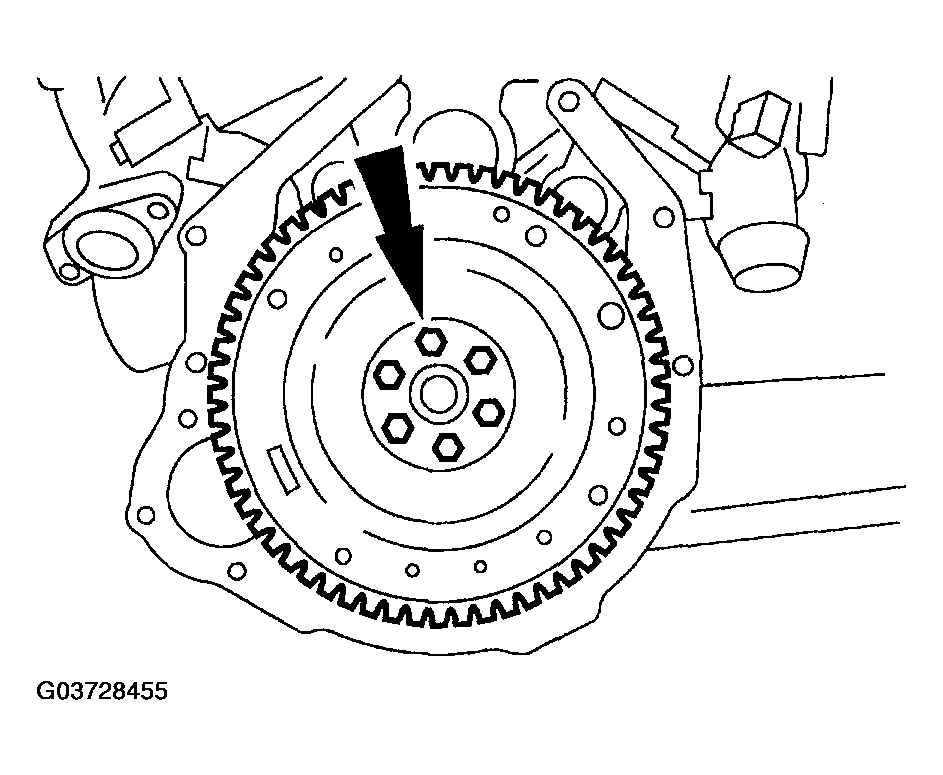

    Fig 1: Removing Flywheel Bolts
    G03728455Courtesy of MAZDA MOTORS CORP.
  3. Remove the flywheel.
  4. Clean and inspect the flywheel. See FLYWHEEL INSPECTION .
