Flywheel Removal/Installation - 3.0L: Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel.

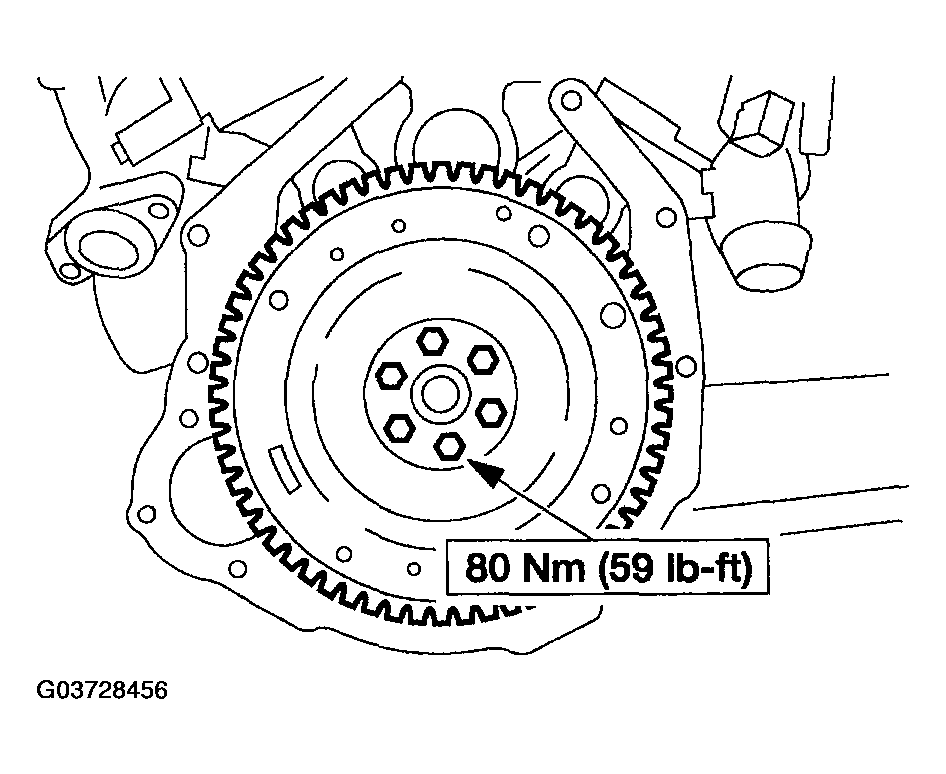

    Fig 1: Installing Flywheel Bolts - With Torque Specification
    G03728456Courtesy of MAZDA MOTORS CORP.
    • Install the six bolts. Tighten the bolts is a crisscross pattern.
  2. Install the clutch. See CLUTCH DISC AND COVER REMOVAL/INSTALLATION .
