FLEXPLATE Removal/Installation - 3.0L: Removal

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .
  2. Remove the bolts and the flexplate.

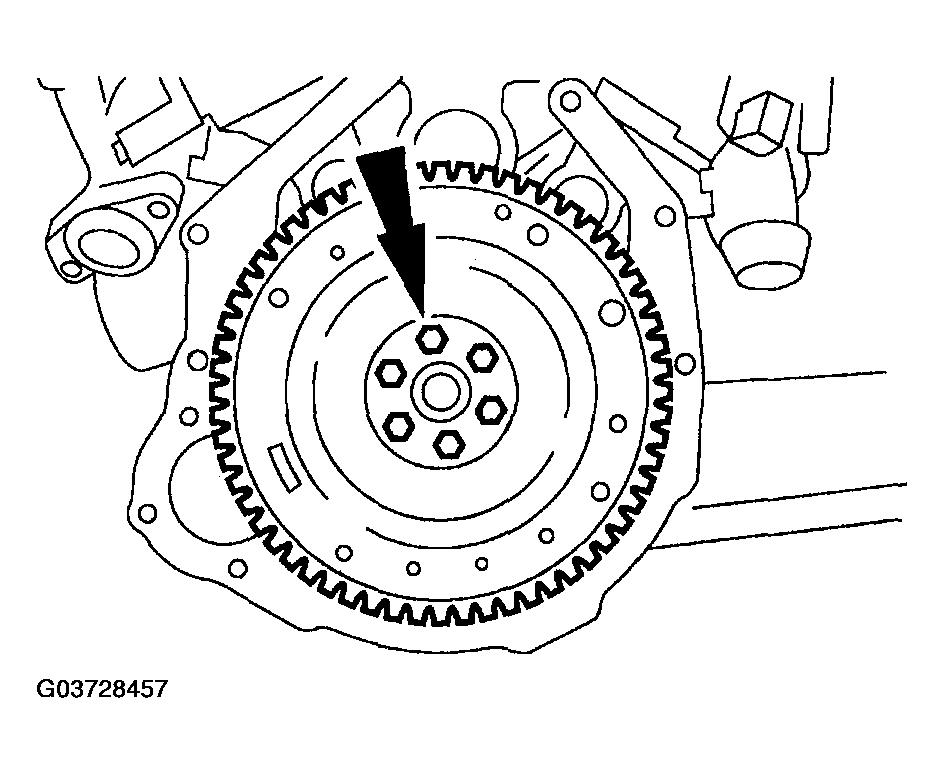

    Fig 1: Removing Flexplate Bolts
    G03728457Courtesy of MAZDA MOTORS CORP.
    • Inspect the flexplate for cracks or other damage. Install a new flexplate if necessary.
