FLEXPLATE Removal/Installation - 3.0L: Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Special bolts are used for installation; do not use standard bolts.
  1. Position the flexplate on the crankshaft and install the bolts.

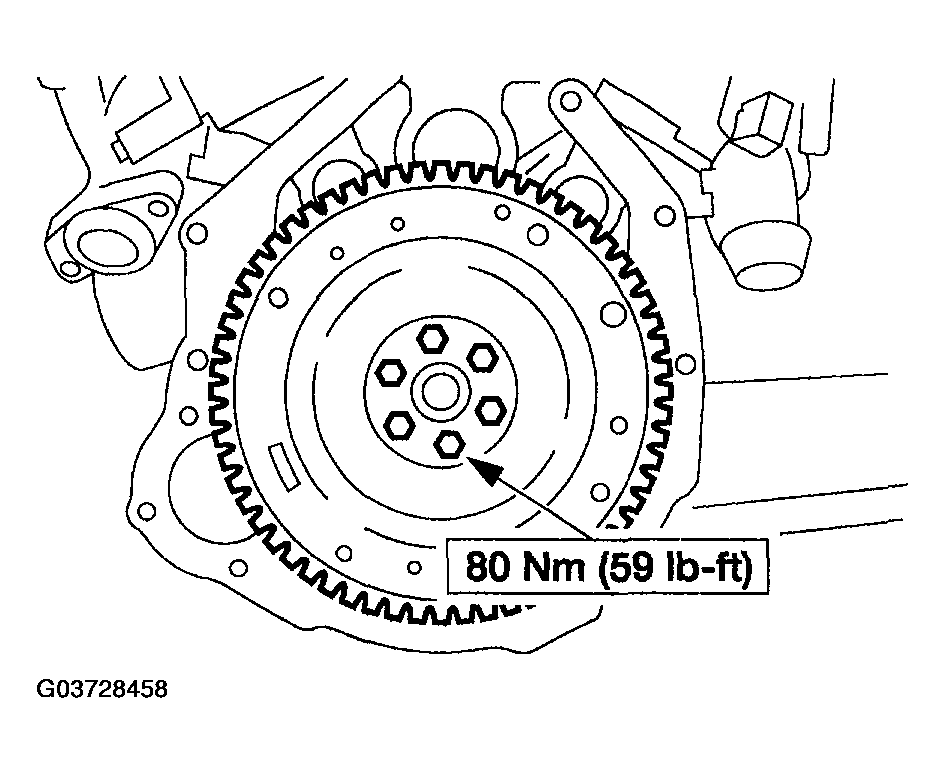

    Fig 1: Installing Flexplate Bolts - With Torque Specification
    G03728458Courtesy of MAZDA MOTORS CORP.
    • Tighten the bolts in a criss-cross pattern.
  2. Install the transmission. See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .
