Cylinder Head Gasket Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all the sealing surfaces.
  2. Check the cylinder head for flatness. See OVERHAUL - 3.0L .
    Fig 1: Checking Cylinder Head For Flatness
    G03728427Courtesy of MAZDA MOTORS CORP.
    NOTE:

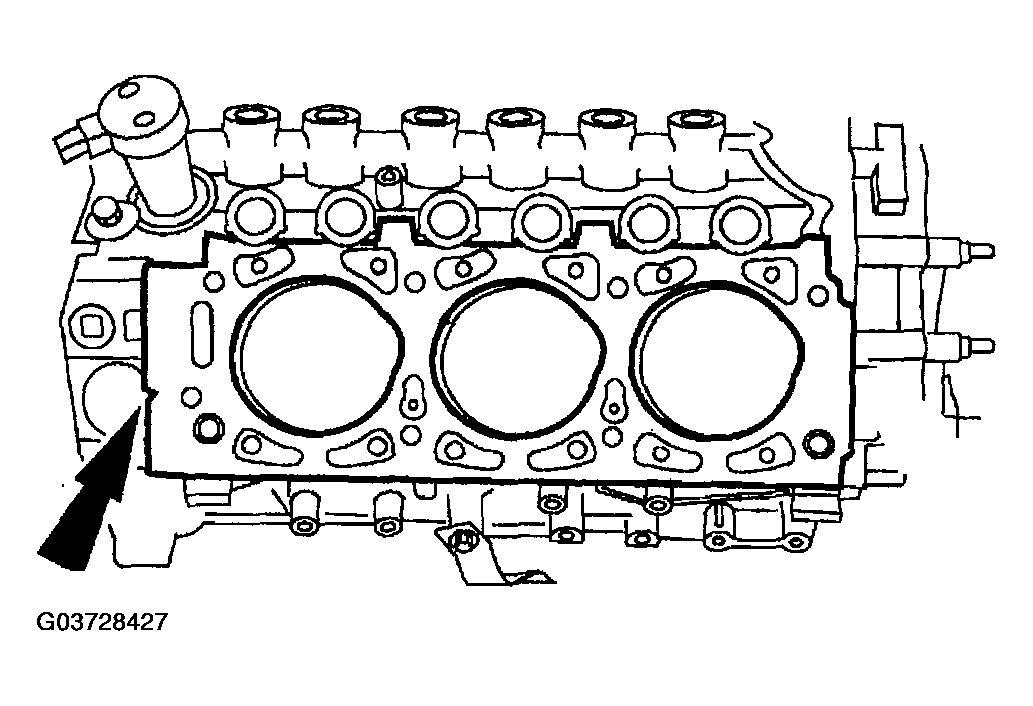

    • The "V" notch in the cylinder head gasket faces the front of the engine on the left side and the rear of the engine on the right side.
  3. Install the head gasket.
