Rear Oil Seal Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the outer lips and the inner seal on the crankshaft rear oil seal with clean engine oil.
  2. Using the special tool (or equivalent), install the crankshaft rear oil seal. Alternate bolt tightening to correctly seat the crankshaft rear oil seal.

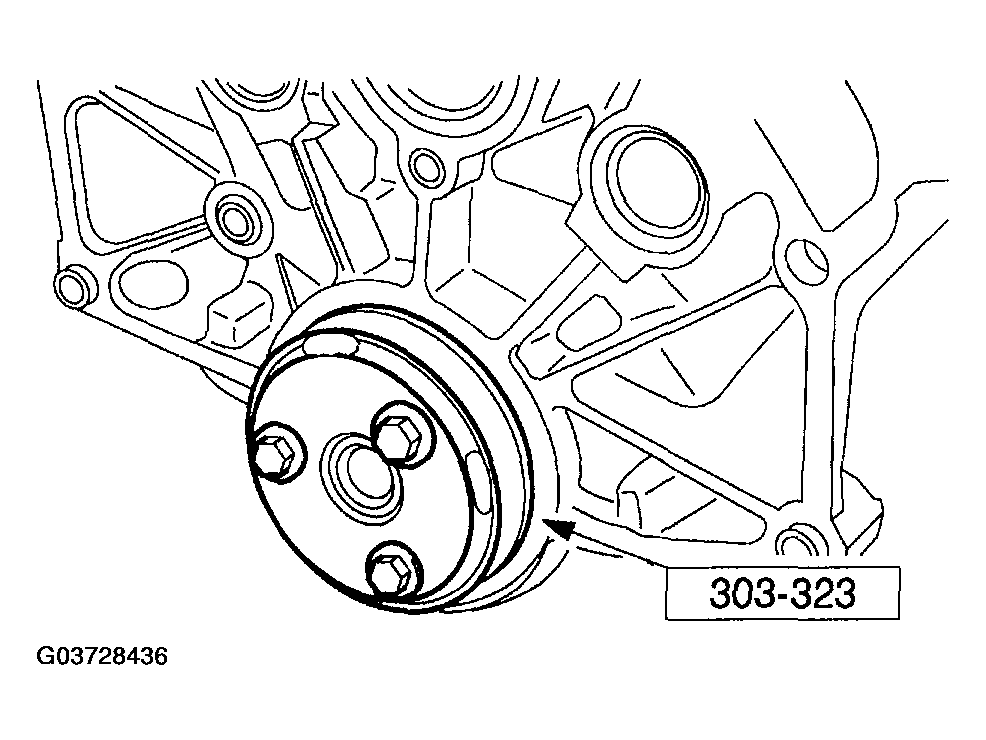

    Fig 1: Installing Crankshaft Rear Oil Seal
    G03728436Courtesy of MAZDA MOTORS CORP.
  3. Install the flywheel or flexplate. See FLYWHEEL REMOVAL/INSTALLATION - 3.0L .
