Crankshaft Rear Oil Seal Removal/Installation - 3.0L: Notes
WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the flywheel or flexplate. See FLYWHEEL REMOVAL/INSTALLATION - 3.0L .CAUTION: Use care to avoid scratching or damaging the oil seal surface or leakage may occur.
- Using a sharp awl, punch one hole into the crankshaft rear oil seal metal surface between the seal lip and the cylinder block.

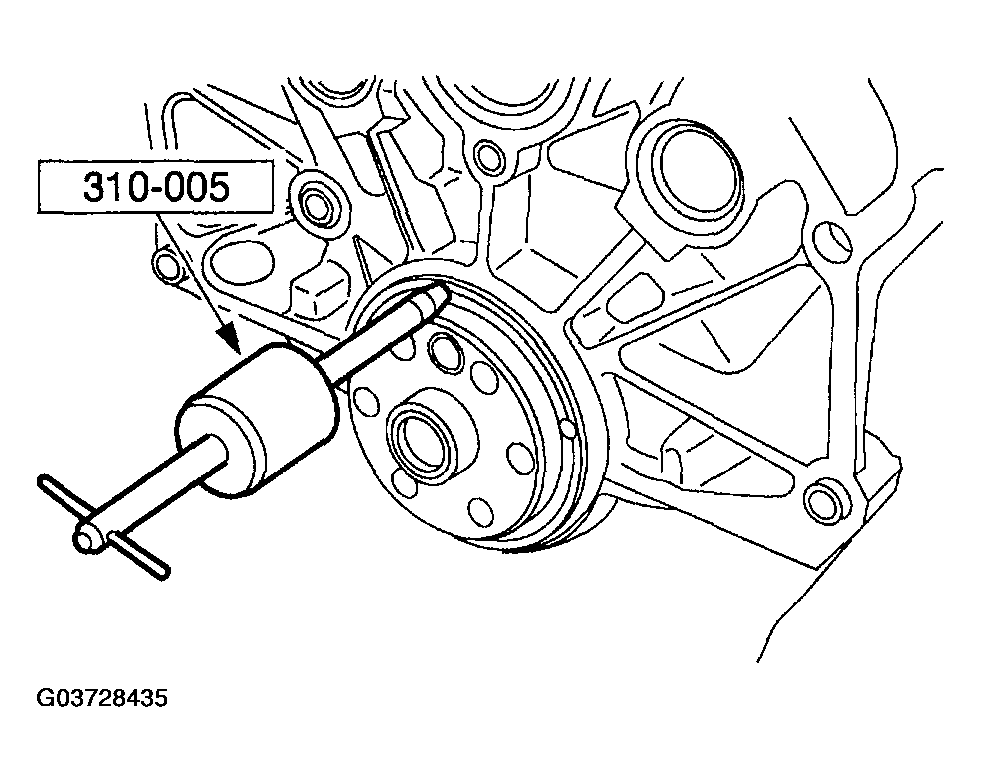

- Screw the threaded end of the special tool into the oil seal. Use the special tool (or equivalent) to remove the crankshaft rear oil seal.
- Install in the reverse order of removal.
