Crankshaft Pulley Installation

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Using Vibration Damper and Seal Replacer ST 303-175 (T82L-6316-A) or equivalent, install the crankshaft damper.

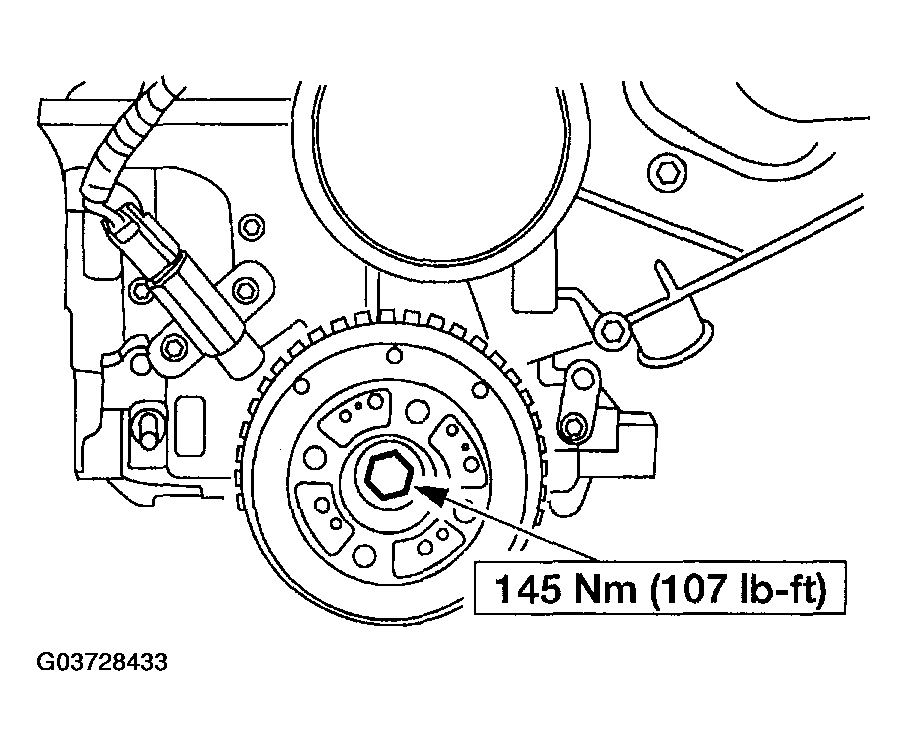

Fig 1: Installing Crankshaft Damper - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
- Coat the sealing surfaces of the crankshaft damper with clean engine oil.
- Coat the crankshaft damper keyway with silicone.
- Install the crankshaft damper.
Install the crankshaft pulley.

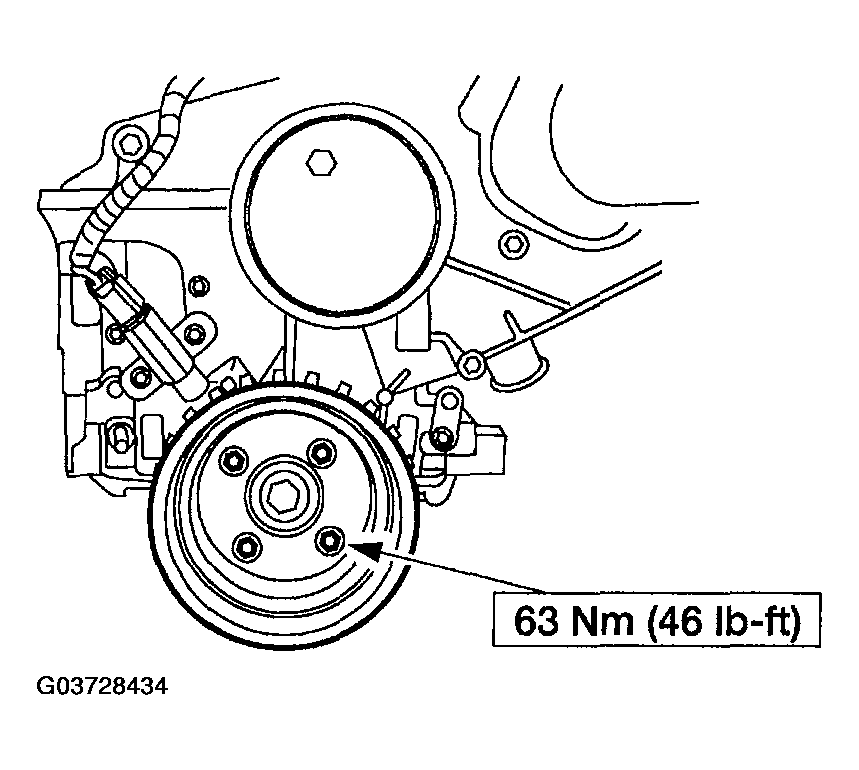

Fig 2: Installing Crankshaft Pulley - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
