Crankshaft - End Play

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.

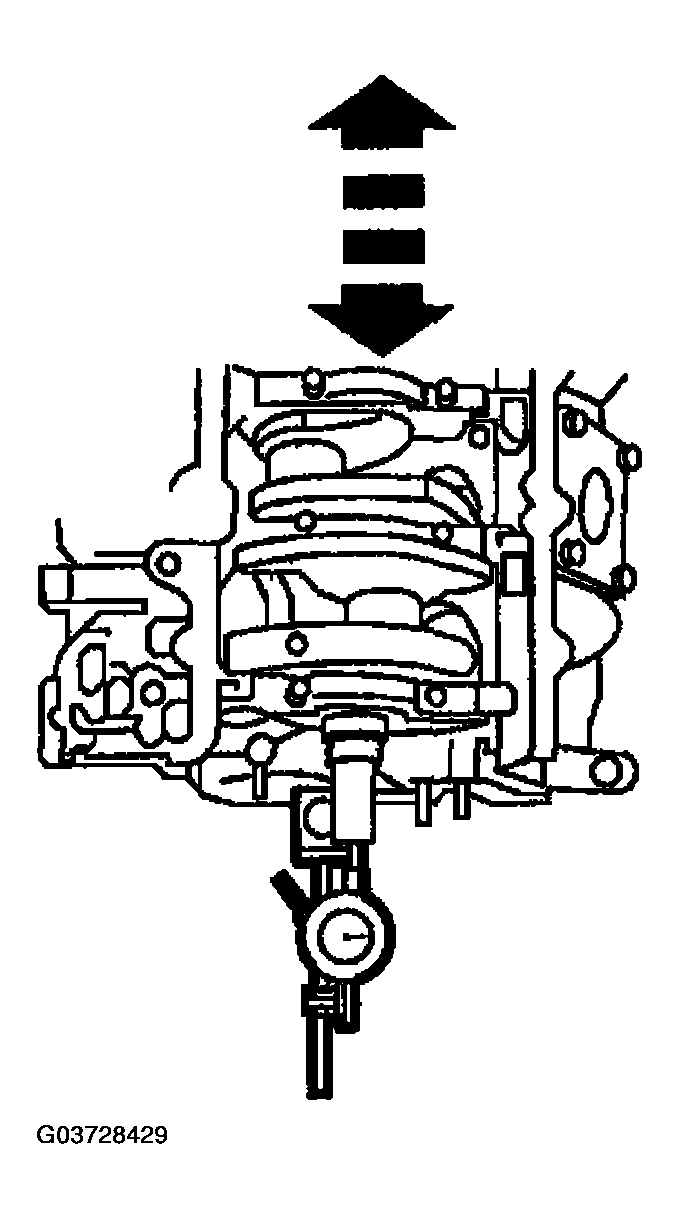

    Fig 1: Measuring Crankshaft End Play
    G03728429Courtesy of MAZDA MOTORS CORP.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play. See ENGINE SPECIFICATIONS - 3.0L .
    • If crankshaft end play exceeds specifications, install a new engine short block.
