Valve Cover Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Install new valve cover gaskets, if removed.

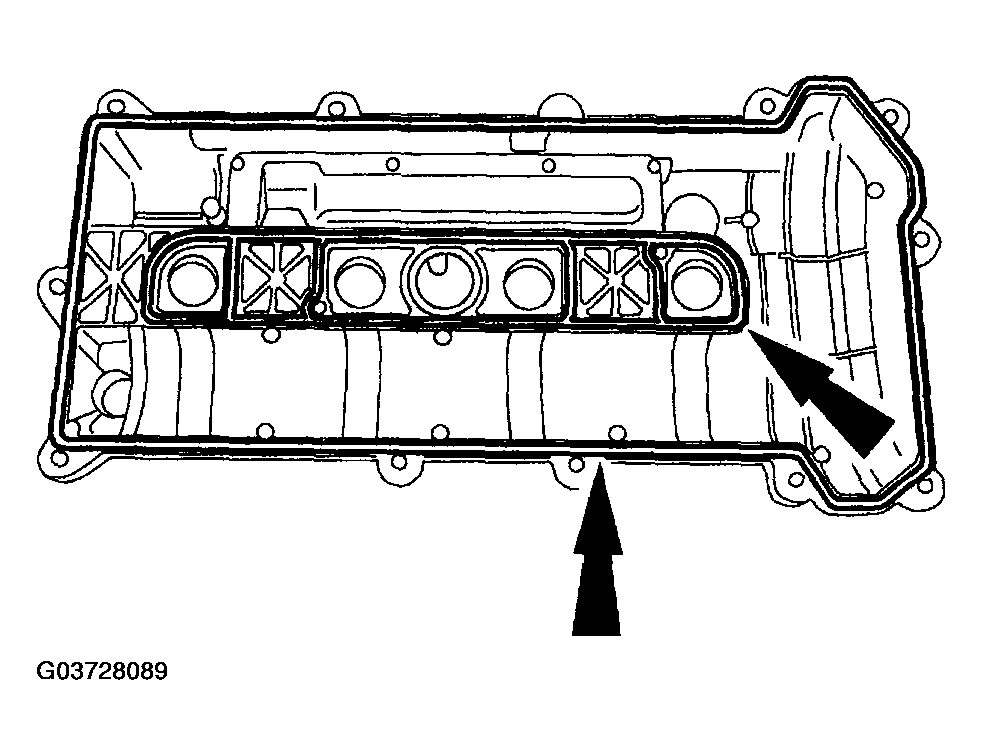

Fig 1: Installing New Valve Cover Gaskets
Courtesy of MAZDA MOTORS CORP.
Install the valve cover and bolts. Tighten the bolts in the sequence shown to 10 N.m {1 kgf.m, 7 lbf}.

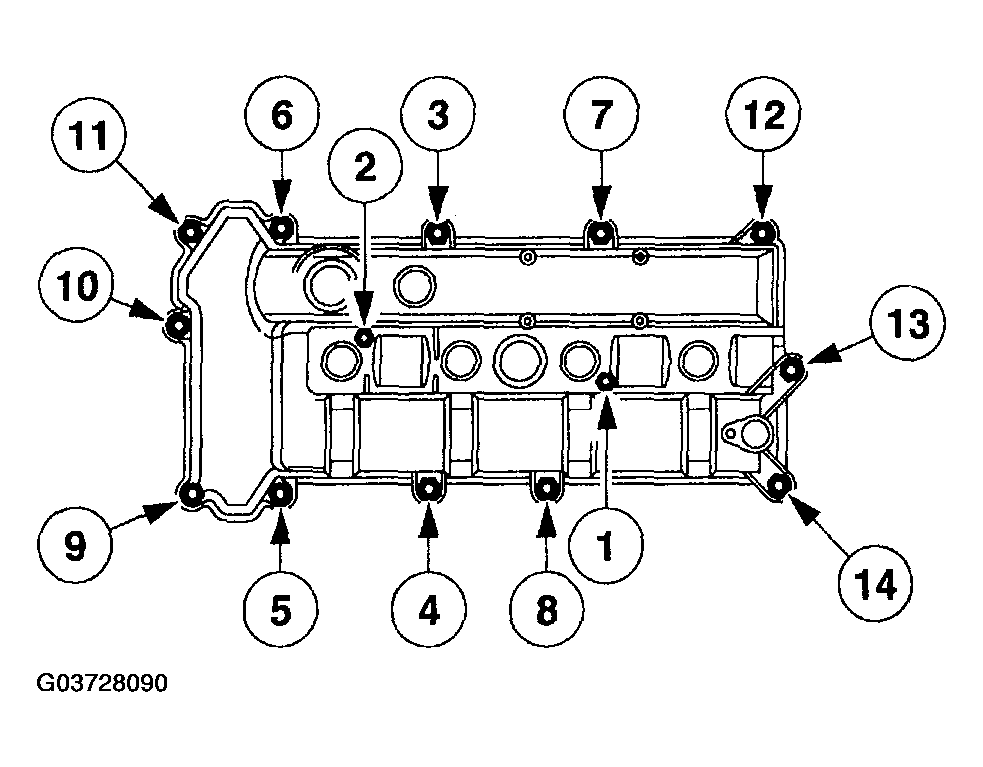

Fig 2: Installing Valve Cover Bolts In Sequence
Courtesy of MAZDA MOTORS CORP.
Install the crankcase ventilation tube.

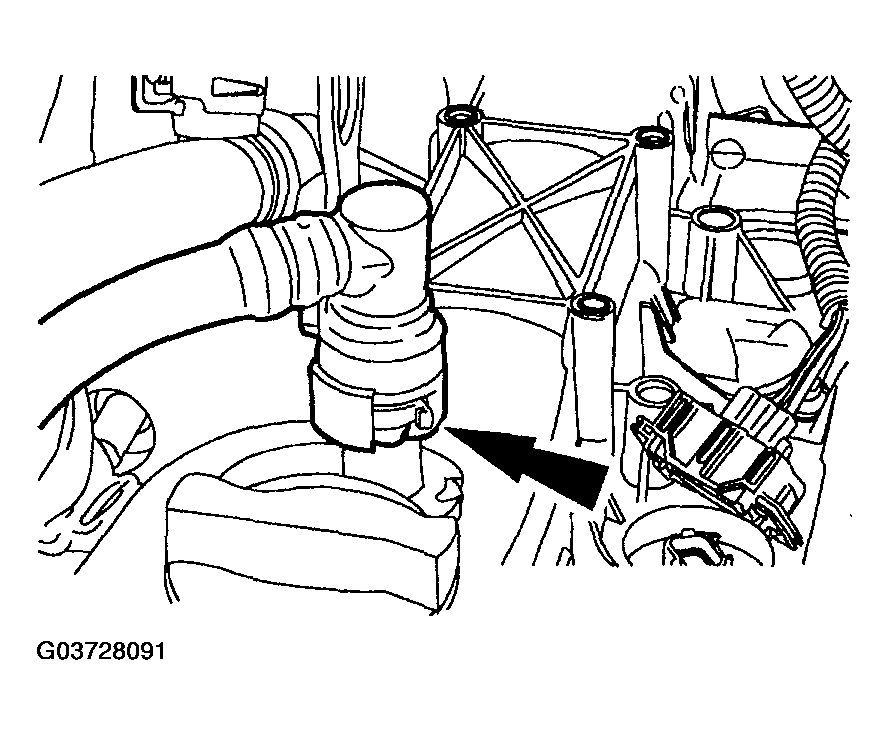

Fig 3: Installing Crankcase Ventilation Tube
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Apply clean engine oil to the O-ring to aid in installation.

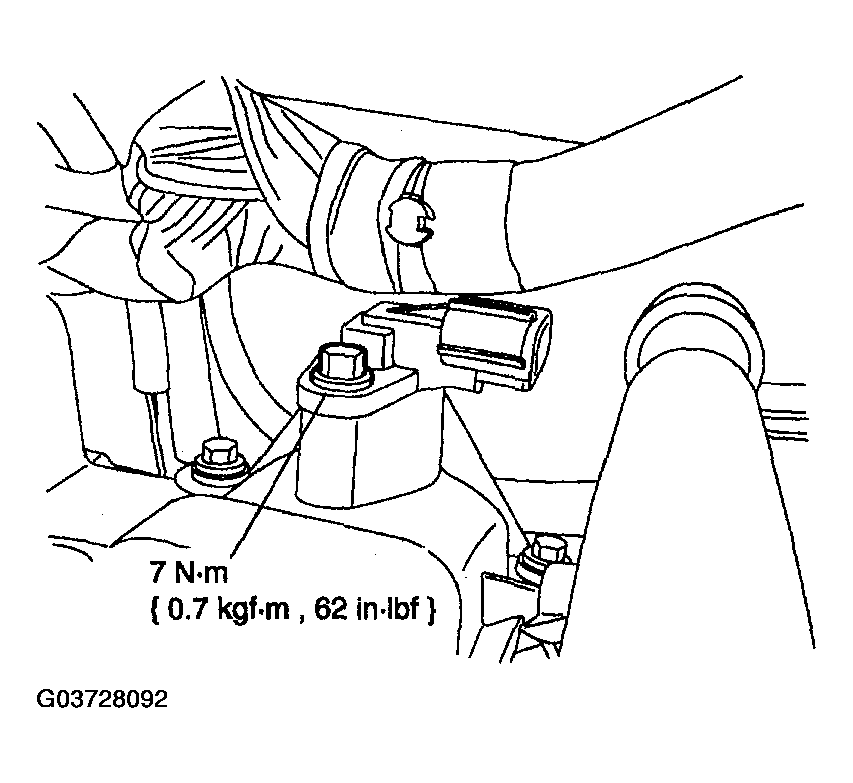

Install the camshaft position sensor.

Fig 4: Installing Camshaft Position Sensor
Courtesy of MAZDA MOTORS CORP.
Connect the camshaft position sensor.

Fig 5: Connecting Camshaft Position Sensor
Courtesy of MAZDA MOTORS CORP.
Install the ignition coil and bolts.

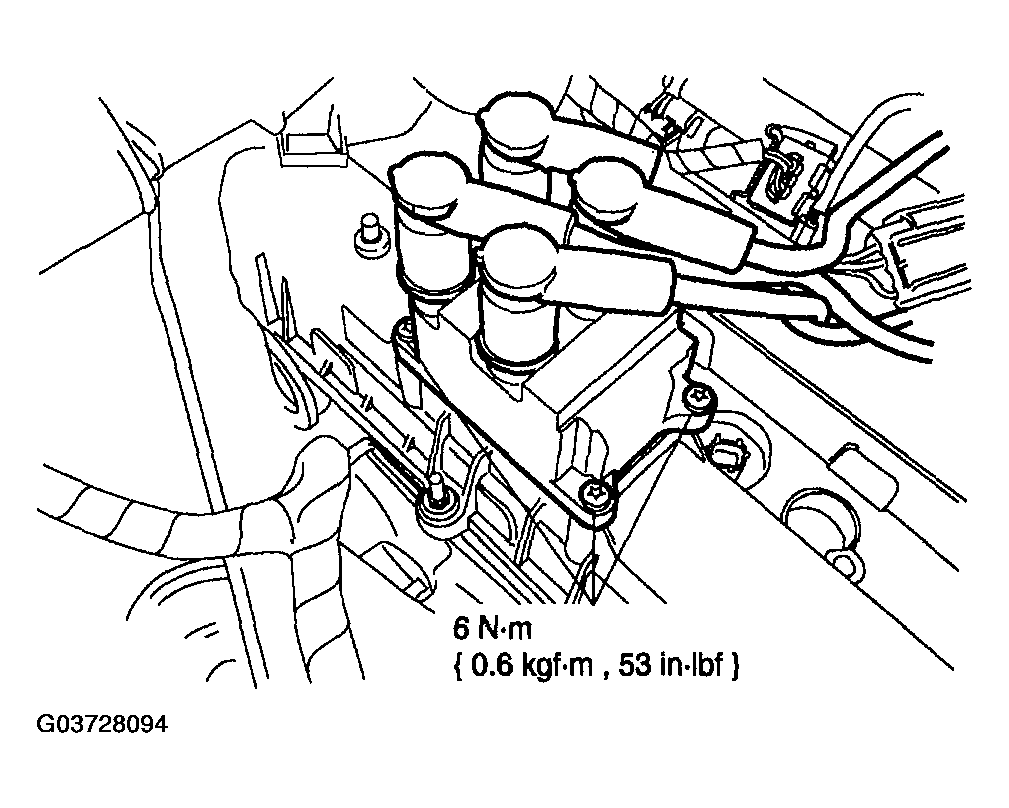

Fig 6: Installing Ignition Coil Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Connect the ignition coil electrical connector.

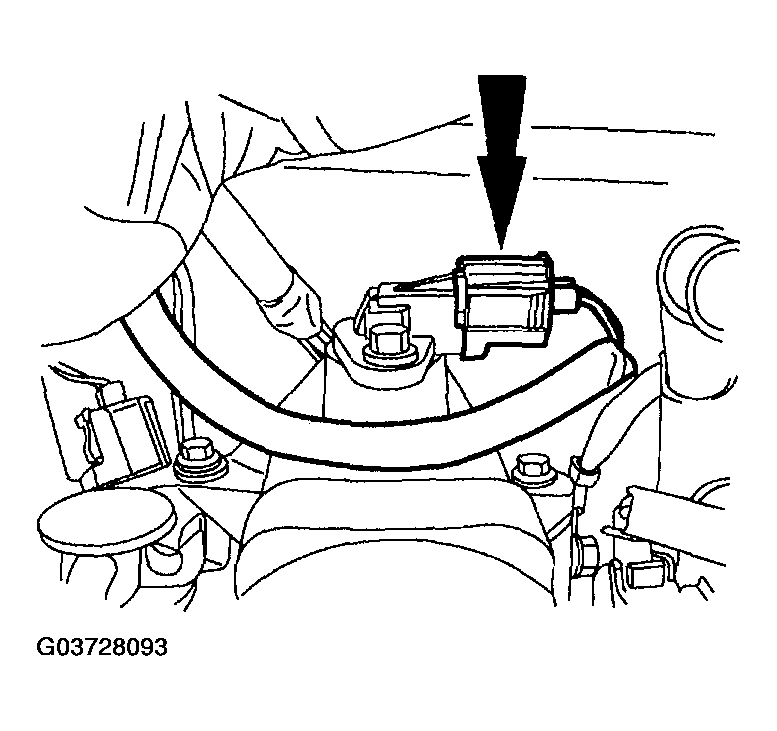

Fig 7: Connecting Ignition Coil Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Install the spark plug wires. See SPARK PLUG WIRE REMOVAL/INSTALLATION - 2.3L/3.0L/4.0L .
Install the engine wiring harness onto the valve cover studs.

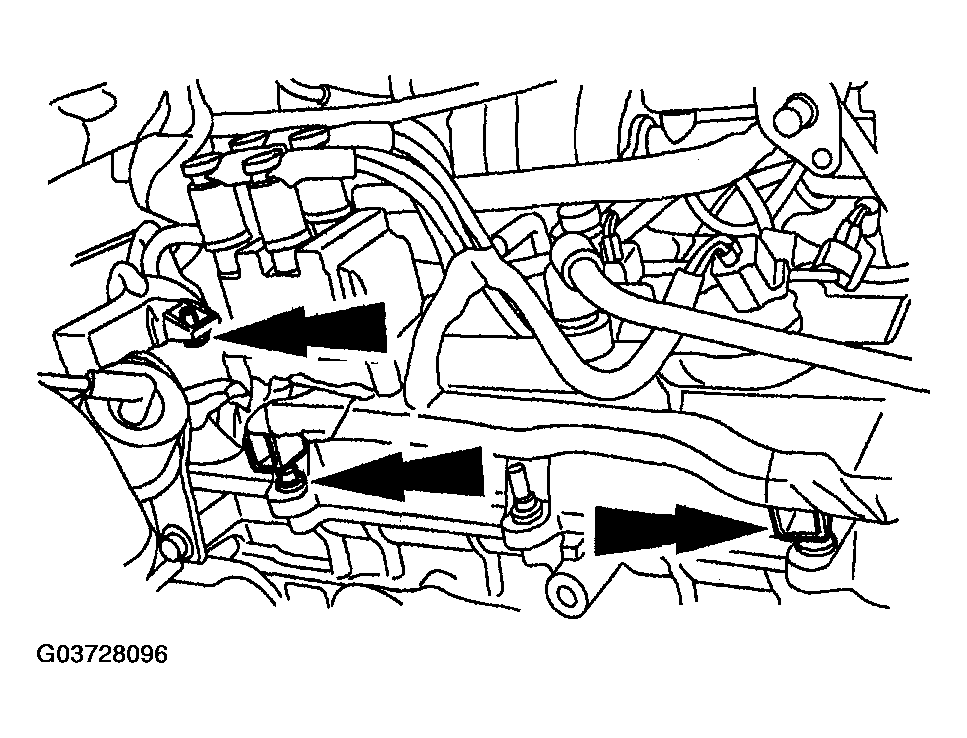

Fig 8: Installing Engine Wiring Harness Onto Valve Cover Studs
Courtesy of MAZDA MOTORS CORP.

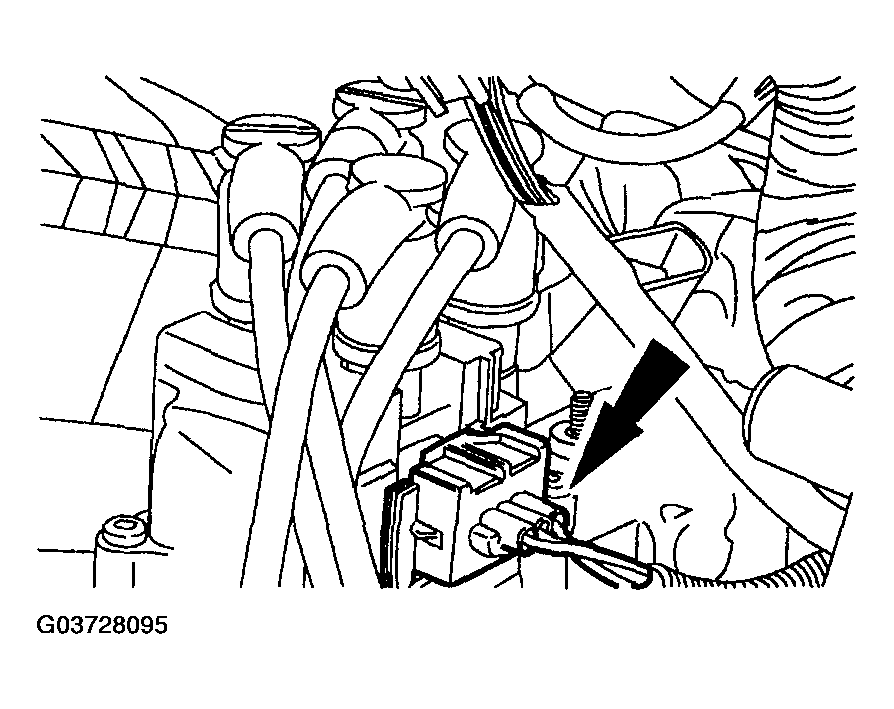

Connect the CHT sensor electrical connector.

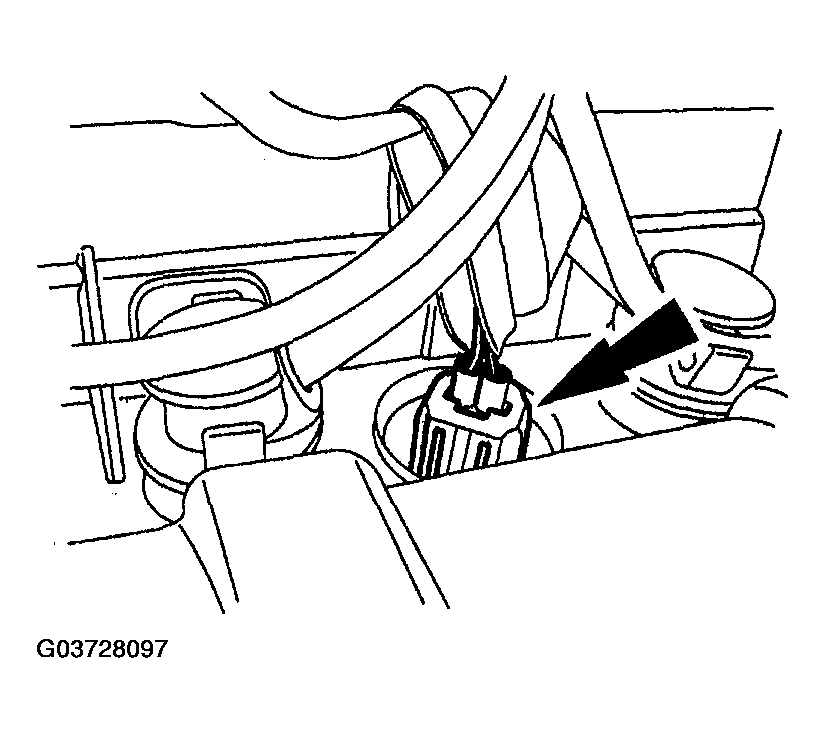

Fig 9: Connecting CHT Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Position back the CHT sensor boot.

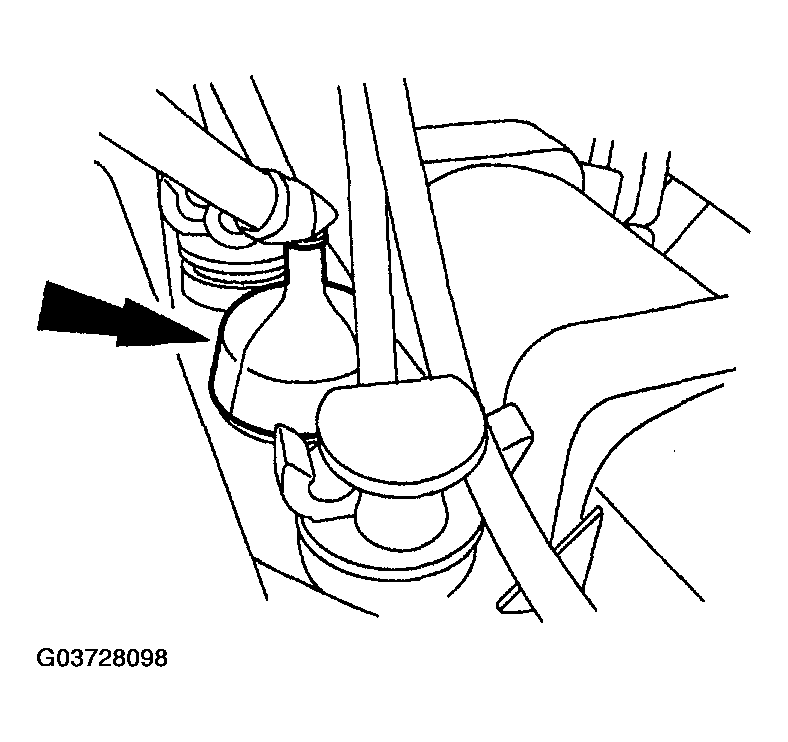

Fig 10: Installing CHT Sensor Boot
Courtesy of MAZDA MOTORS CORP.
Install the intake manifold. See INTAKE MANIFOLD REMOVAL/INSTALLATION - 2.3L .
