Timing Chain Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the special tool.

Fig 1: Removing Special Tool
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not rotate the camshafts. Damage to the valves and pistons can occur.

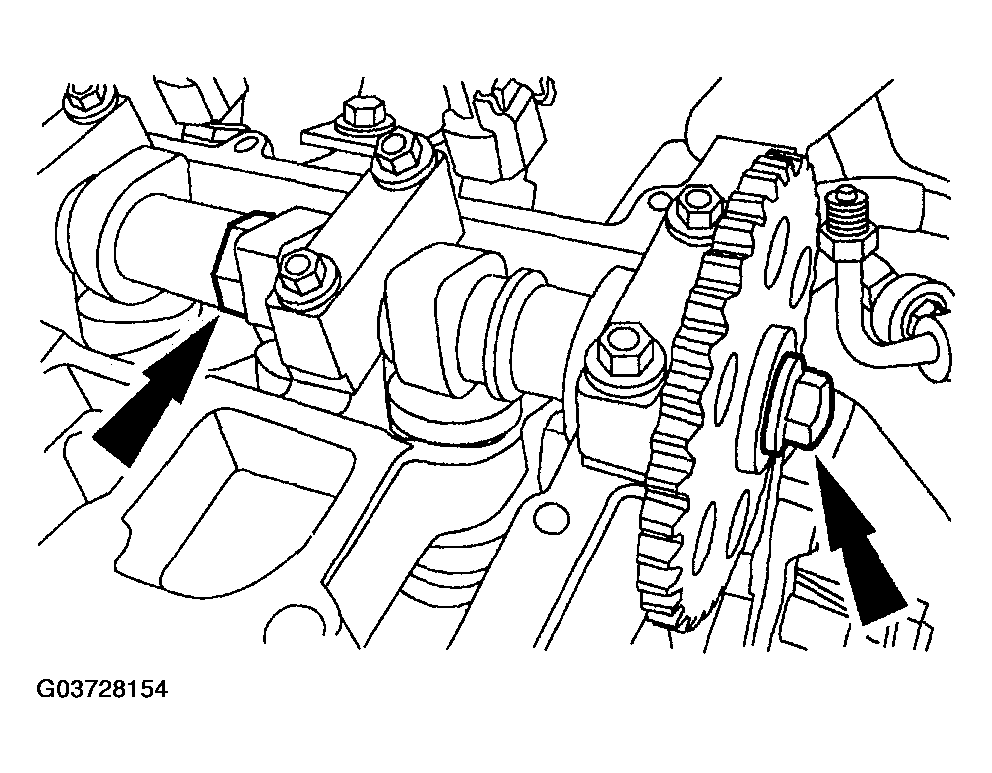

If the camshaft sprockets were not removed, use the flats on the camshafts to prevent camshaft rotation and loosen the sprocket bolts.

Fig 2: Loosening Sprocket Bolts
Courtesy of MAZDA MOTORS CORP.

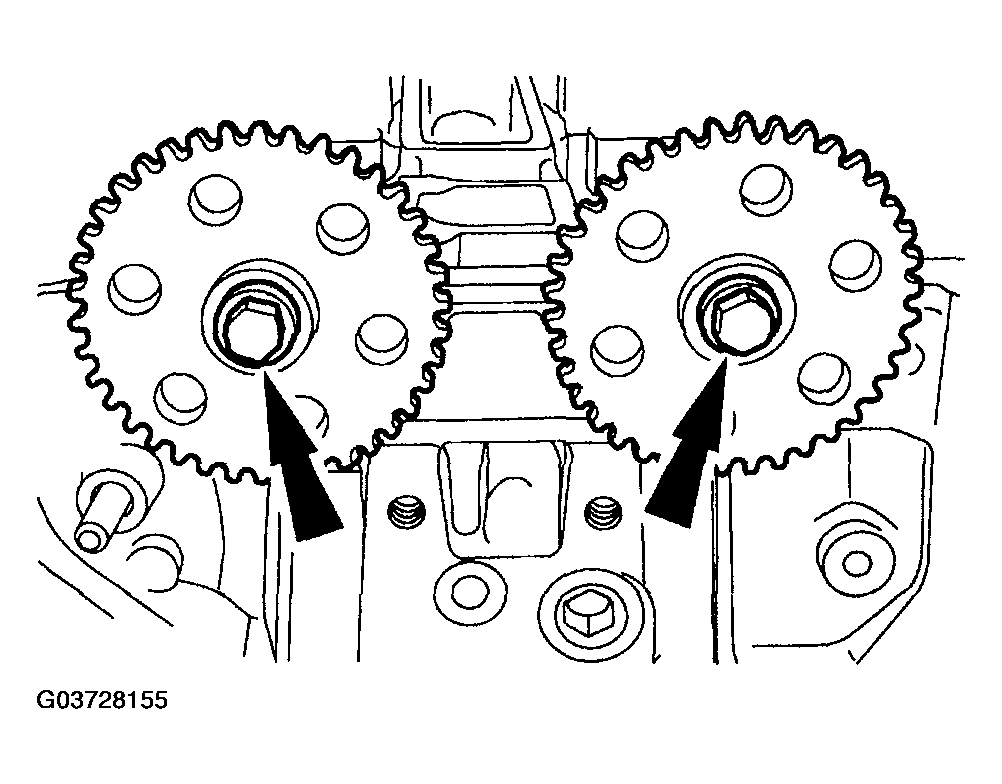

If removed, install the camshaft sprockets and the bolts. Do not tighten the bolts at this time.

Fig 3: Installing Camshaft Sprocket Bolts
Courtesy of MAZDA MOTORS CORP.

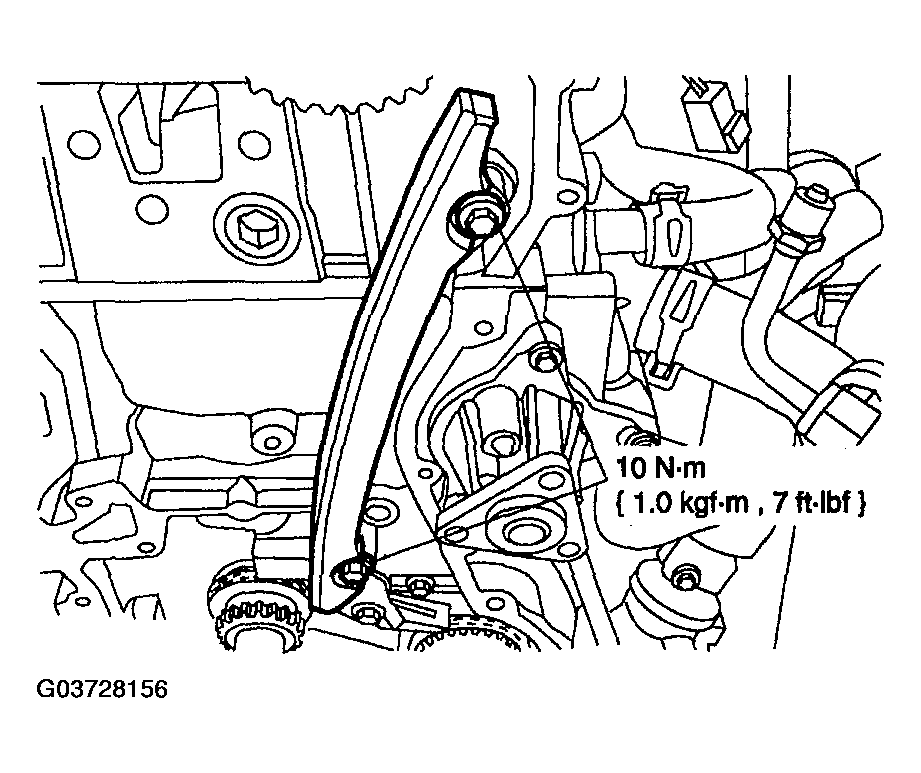

Install the left-hand timing chain guide and bolts.

Fig 4: Installing Left-Hand Timing Chain Guide - With Torque Specification
Courtesy of MAZDA MOTORS CORP.

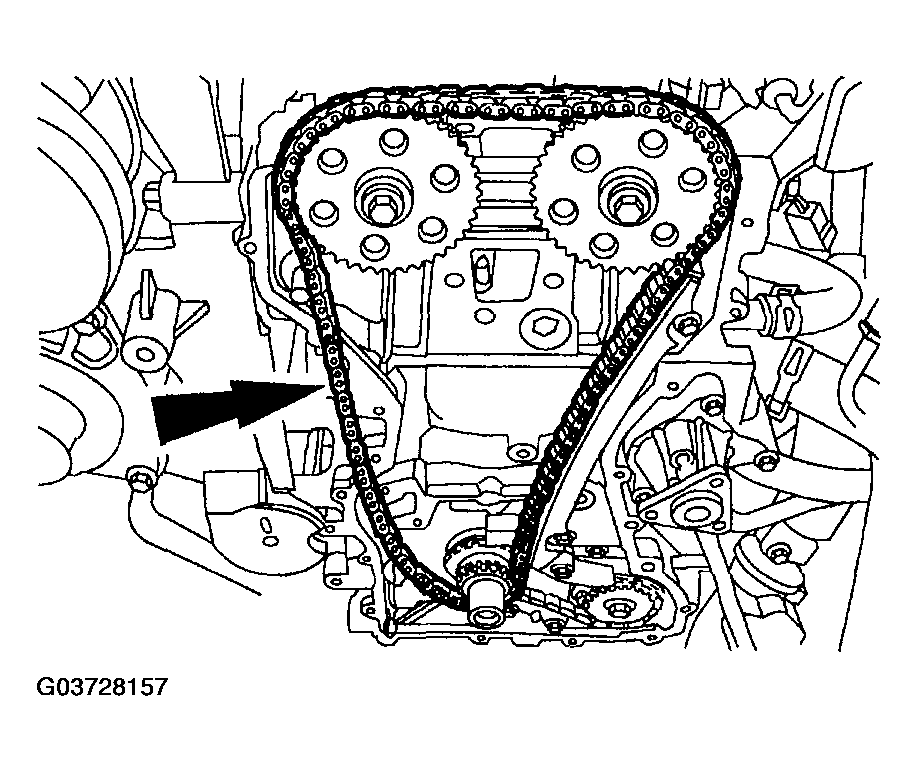

Install the timing chain.

Fig 5: Installing Timing Chain
Courtesy of MAZDA MOTORS CORP.

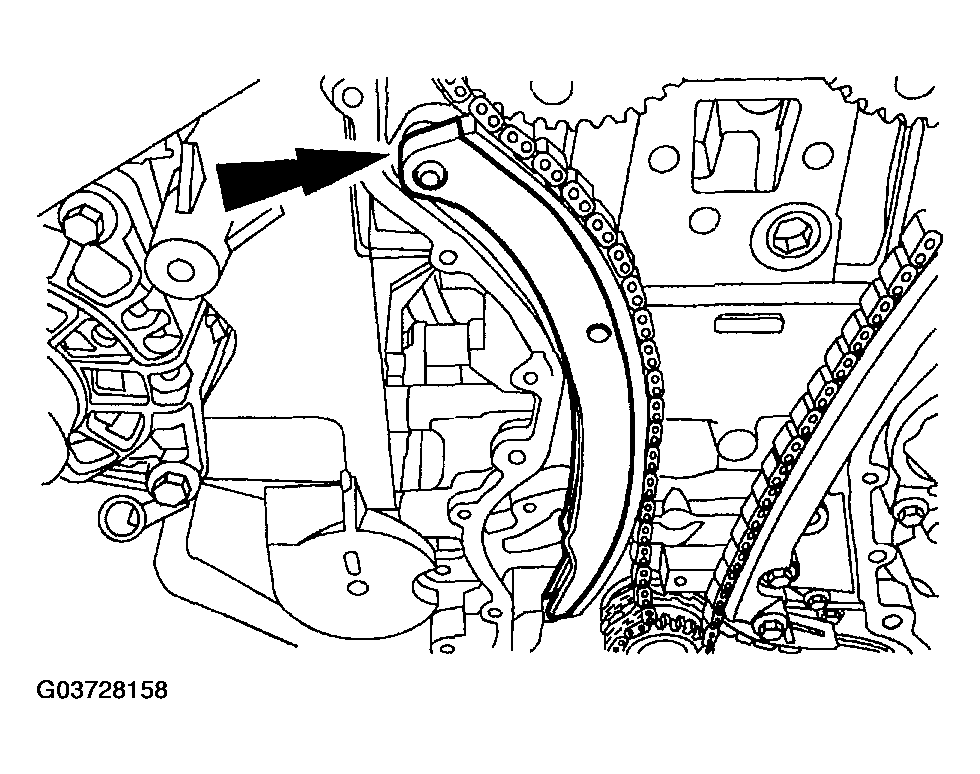

Install the right-hand timing chain guide.

Fig 6: Installing Right-Hand Timing Chain Guide
Courtesy of MAZDA MOTORS CORP.

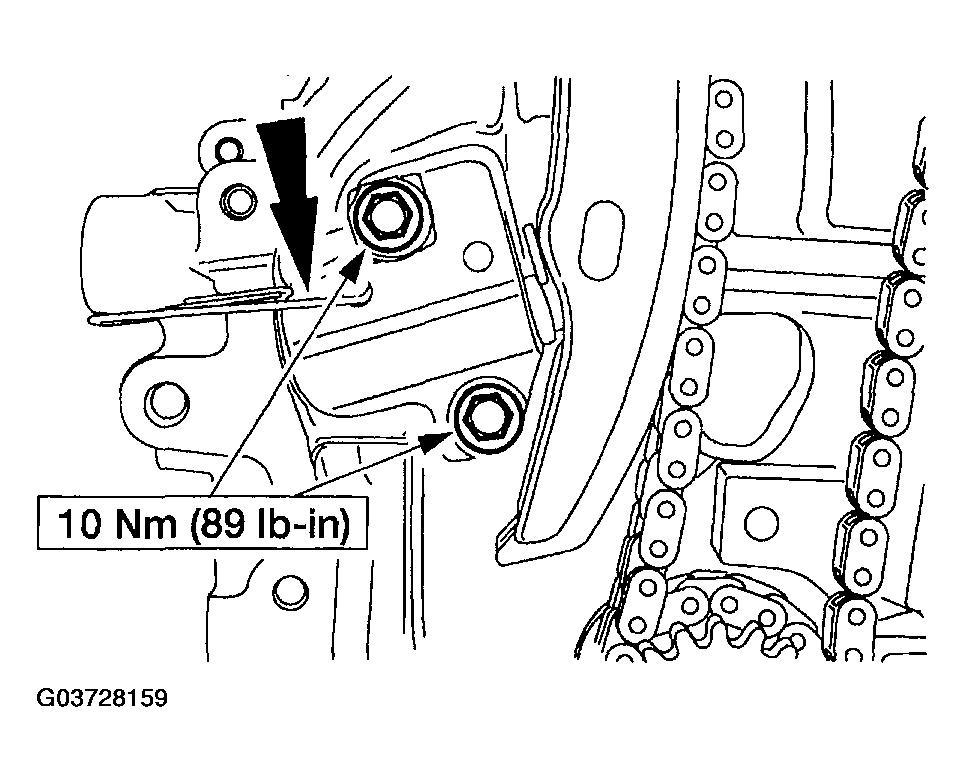

Install the timing chain tensioner and the bolts. Remove the paper clip to release the piston.

Fig 7: Installing Timing Chain Tensioner Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.

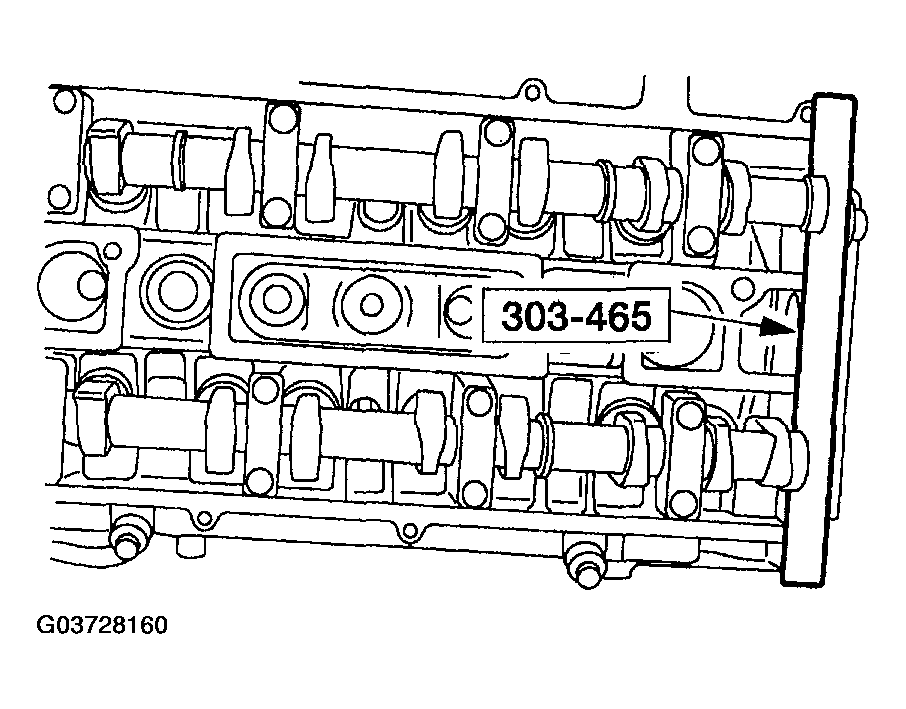

Install the special tool.

Fig 8: Installing Special Tool
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not rely on the Camshaft Alignment Plate to prevent camshaft rotation. Damage to the tool or the camshafts can result.

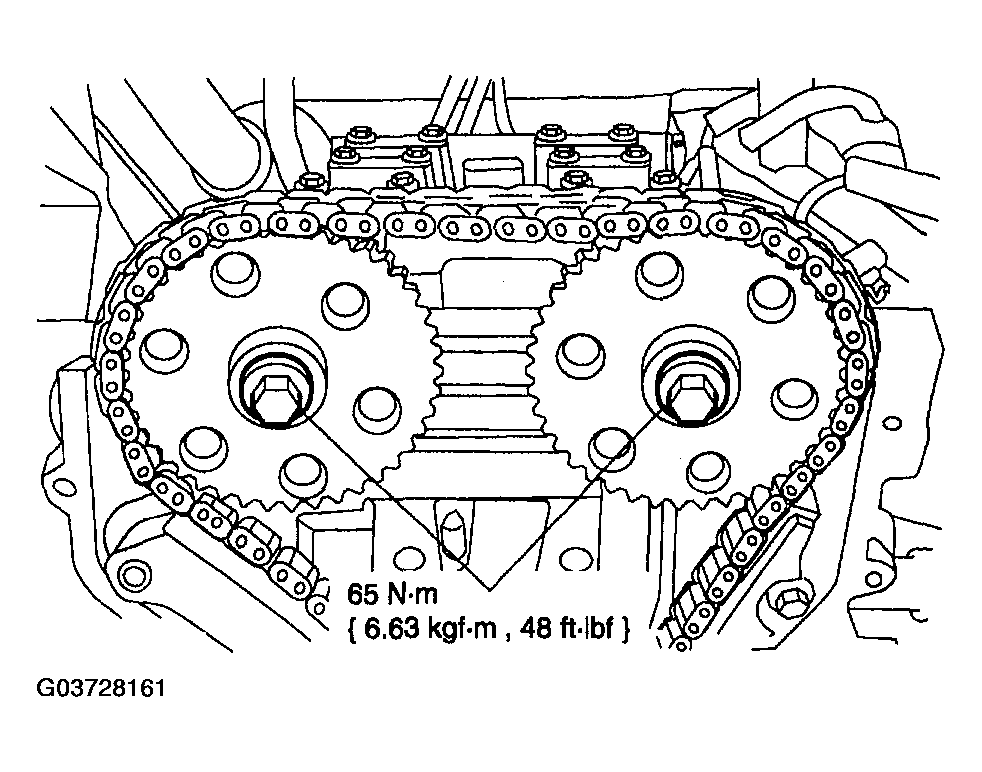

Using the flats on the camshafts to prevent camshaft rotation, tighten the bolts.

Fig 9: Tightening Camshafts Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the front cover. See ENGINE FRONT COVER REMOVAL/INSTALLATION - 2.3L .
