Fly-Wheel/FLEXPLATE Removal/Installation - 2.3L: Removal

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION or MANUAL TRANSMISSION REMOVAL/INSTALLATION .
  2. Remove the clutch, if so equipped. See CLUTCH DISC AND COVER REMOVAL/INSTALLATION .
  3. Install the special tool and remove the bolts and the flywheel or flexplate.

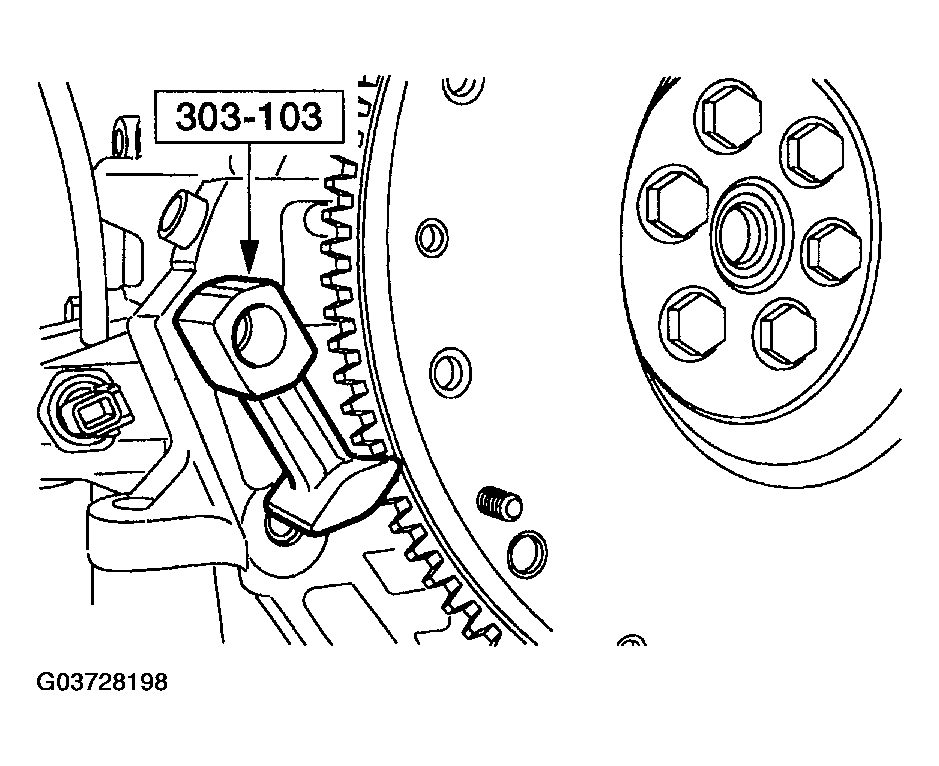

    Fig 1: Installing Special Tool
    G03728198Courtesy of MAZDA MOTORS CORP.
