Fly-Wheel/FLEXPLATE Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Engine balancing is not required. Balance weights should not be installed on the new flywheel.
NOTE:
  • Special bolts are used for installation. Do not use standard bolts.
  1. Inspect the pilot bearing (manual transmission only). Install a new pilot bearing as necessary.
  2. Install the flywheel or flexplate.
  3. Install the special tool.

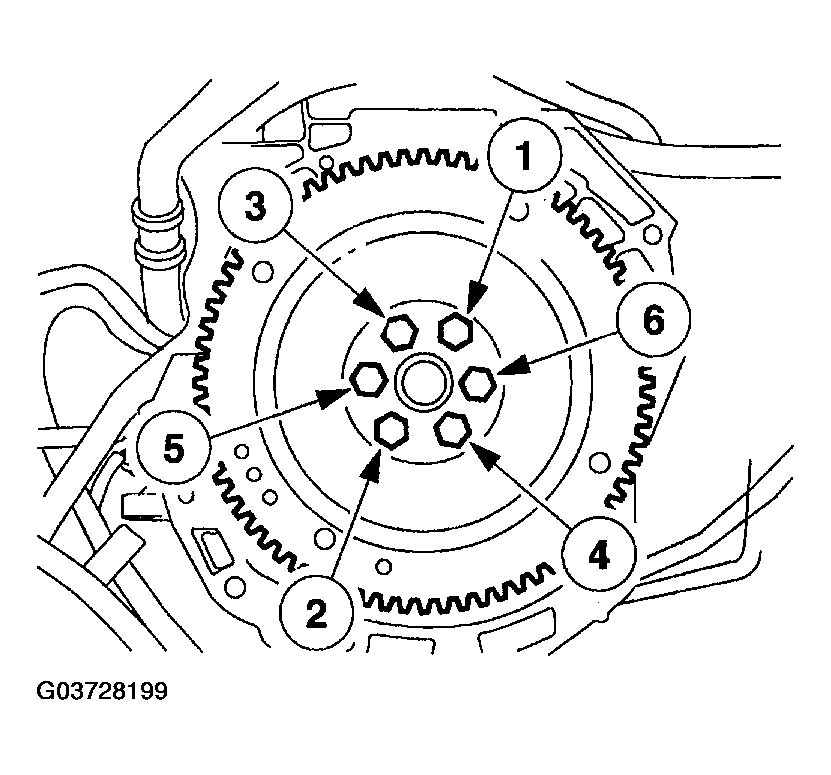

    Fig 1: Identifying Tightening Sequence Of Flywheel Bolts
    G03728199Courtesy of MAZDA MOTORS CORP.
  4. Tighten the bolts in the sequence shown in three stages.
    • Stage 1: Tighten to 50 N.m {5.1 kgf.m, 37 ft-lbf}.
    • Stage 2: Tighten to 80 N.m {8.16 kgf.m, 59 ft-lbf}.
    • Stage 3: Tighten to 112 N.m {11.42 kgf.m, 83 ft-lbf}.
  5. Install the clutch, if so equipped. See CLUTCH DISC AND COVER REMOVAL/INSTALLATION .
  6. Install the transmission. See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION or MANUAL TRANSMISSION REMOVAL/INSTALLATION (manual transmission).
