Crankshaft Front Oil Seal Removal/Installation - 2.3L: Installation

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Lubricate the oil seal with clean engine oil.

Using the special tool, install the crankshaft front oil seal.

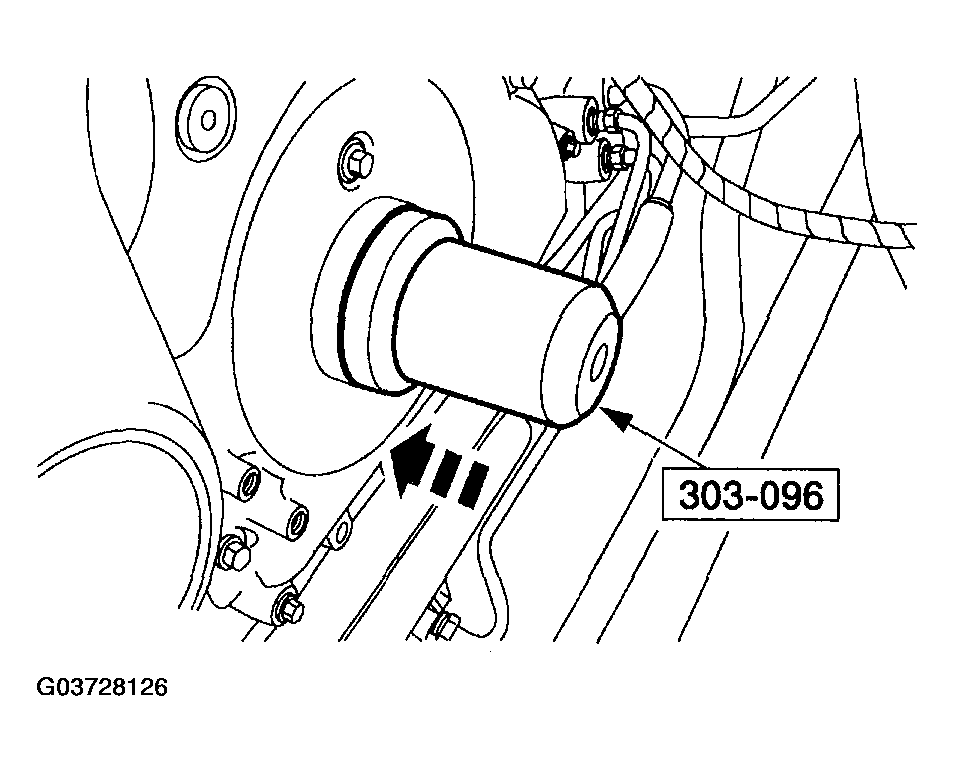

Fig 1: Installing Crankshaft Front Oil Seal
Courtesy of MAZDA MOTORS CORP.
Install the crankshaft pulley. See CRANKSHAFT PULLEY REMOVAL/INSTALLATION - 2.3L .
