Crankshaft - End Play

WARNING: This page is about a different car, the 2005 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the crankshaft end play. Use a Dial Indicator Gauge with Holding Fixture to measure crankshaft end play.

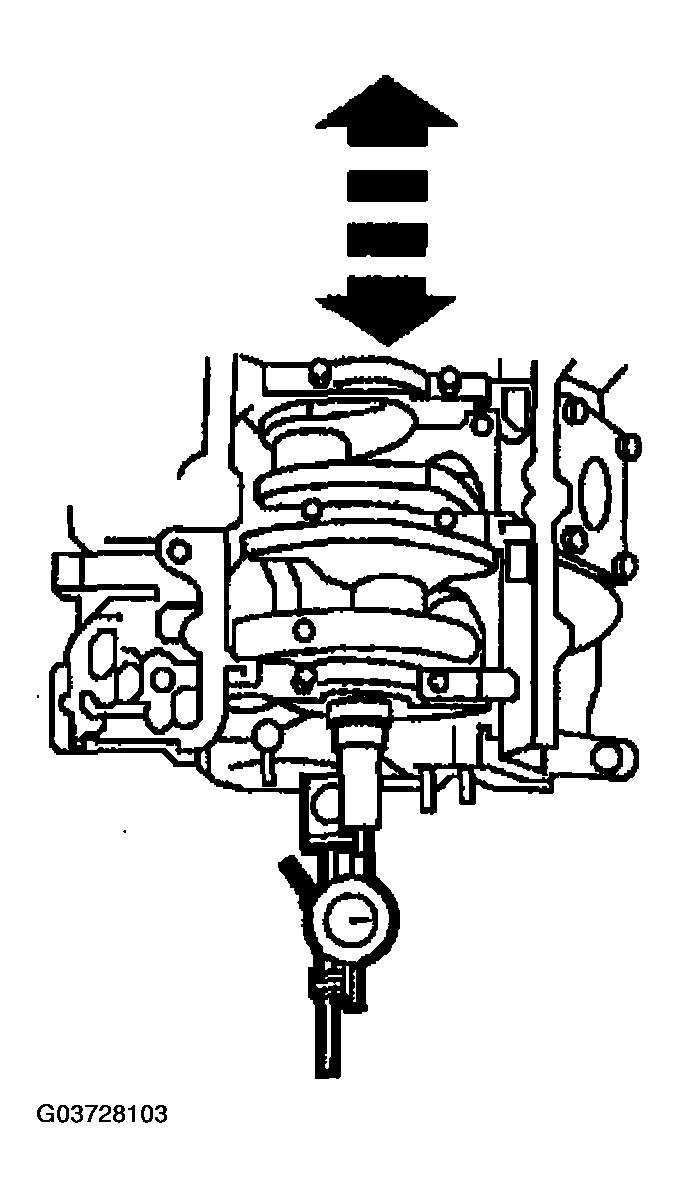

    2. Fig 1: Measuring Crankshaft End Play
    G03728103Courtesy of MAZDA MOTORS CORP.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play. See ENGINE SPECIFICATIONS - 2.3L .
    • If crankshaft end play exceeds specifications, install a new engine short block.
