Removal & Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support front of vehicle. Remove front wheel assemblies. Remove front disc brake caliper with brake hose connected. Remove the brake caliper anchor plate. See FRONT DISC BRAKE CALIPER  .
  2. Remove the rotor retaining clips (if equipped) and the rotor. See Fig 1 . Machine rotor if lateral runout exceeds specification. Replace rotor if measured thickness is less than specified minimum thickness. See DISC BRAKE SPECIFICATIONS  .
  3. To install, reverse the removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

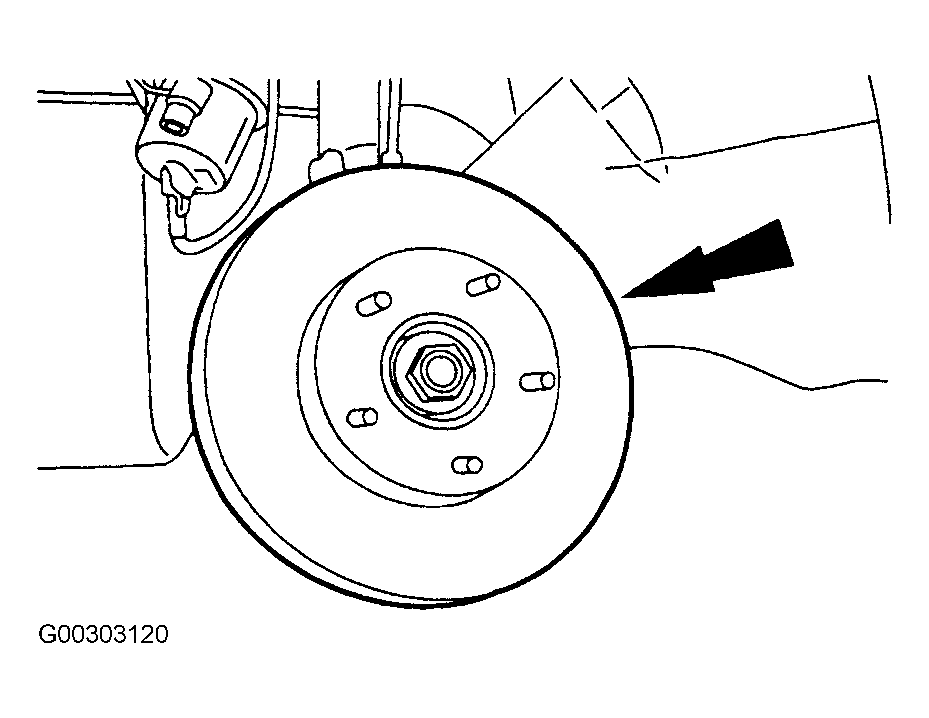

Fig 1: Removing Rotor
G00303120Courtesy of MAZDA MOTORS CORP.
