Drive Belt Removal/Installation - 4.0L

  1. Remove the air cleaner outlet tube.
  2. Remove the drive belt.
    1. Rotate the drive belt tensioner counterclockwise.
    2. Remove the drive belt.

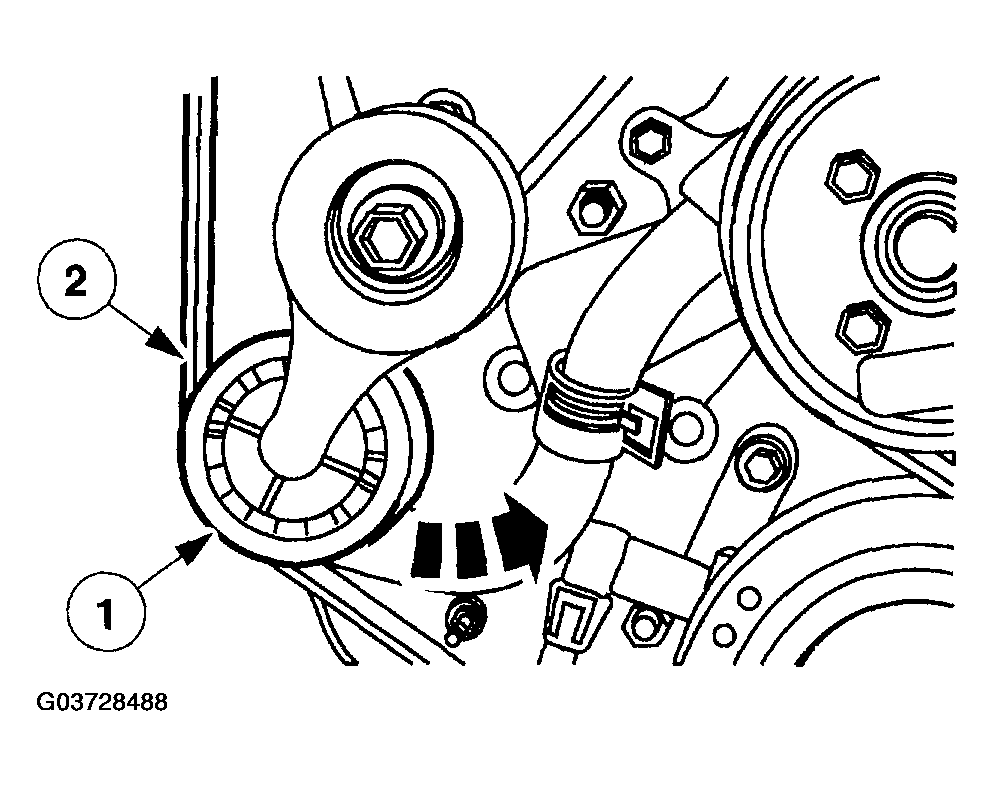

    Fig 1: Removing Drive Belt
    G03728488Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
