Air Cleaner Element Removal/Installation - 4.0L

Remove the air cleaner outlet tube from the mass air flow (MAF) sensor.

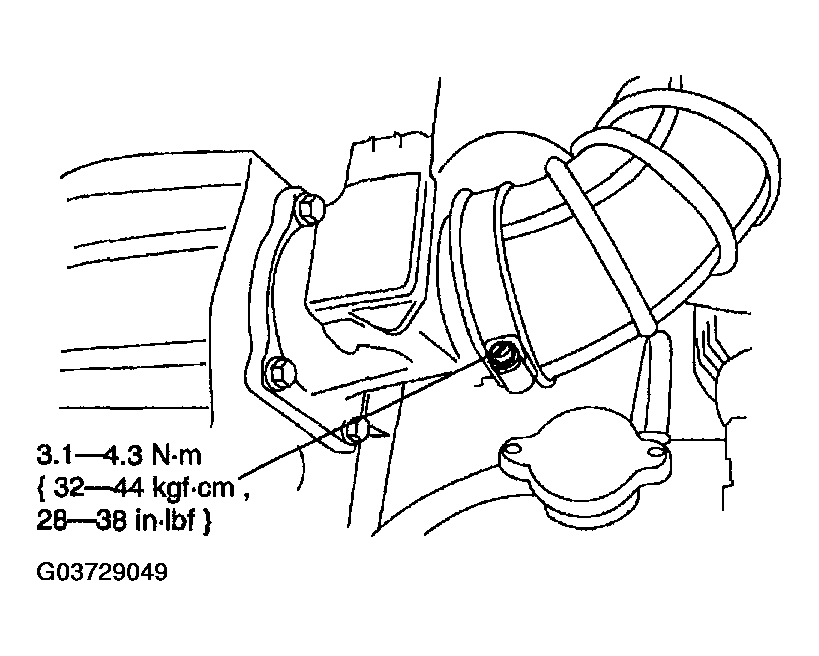

Fig 1: Removing Air Cleaner Outlet Tube From Mass Air Flow Sensor
Courtesy of MAZDA MOTORS CORP.
Disengage the two engine air cleaner snap clamps.

Fig 2: Disengaging Engine Air Cleaner Snap Clamps
Courtesy of MAZDA MOTORS CORP.
Lift the engine air cleaner cover.
Remove the air cleaner element.

Fig 3: Removing Air Cleaner Element
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Snap clamps must be engaged or damage to the engine air cleaner may occur.
Install in reverse order of removal.
