Axle Structural View Rear (Standard)

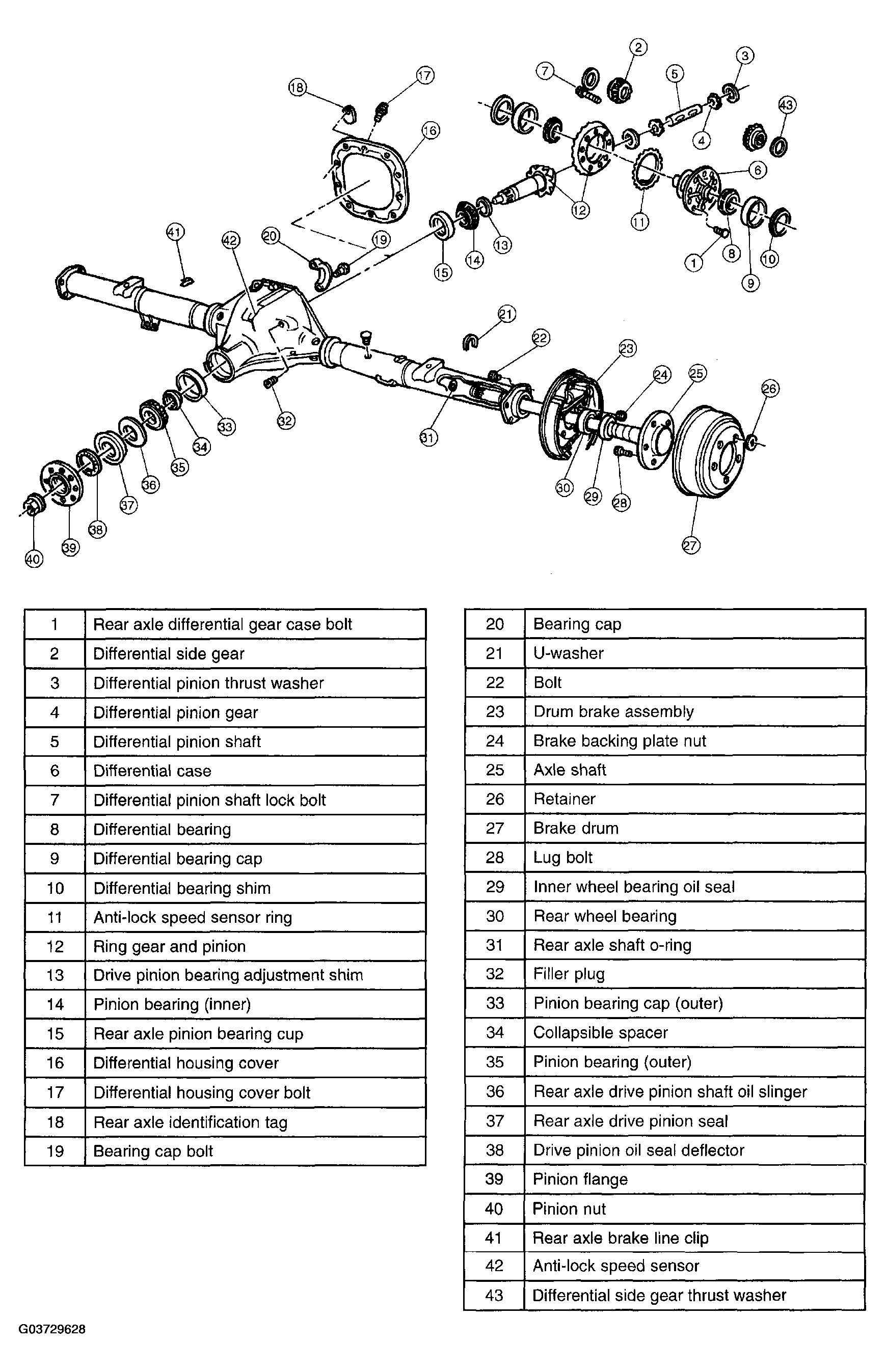

Fig 1: Exploded View Of Rear Axle Structure (Standard)

G03729628

Courtesy of MAZDA MOTORS CORP.
