Axle Structural View Rear (Limited Slip)
Axle Structural View Rear (Limited Slip)

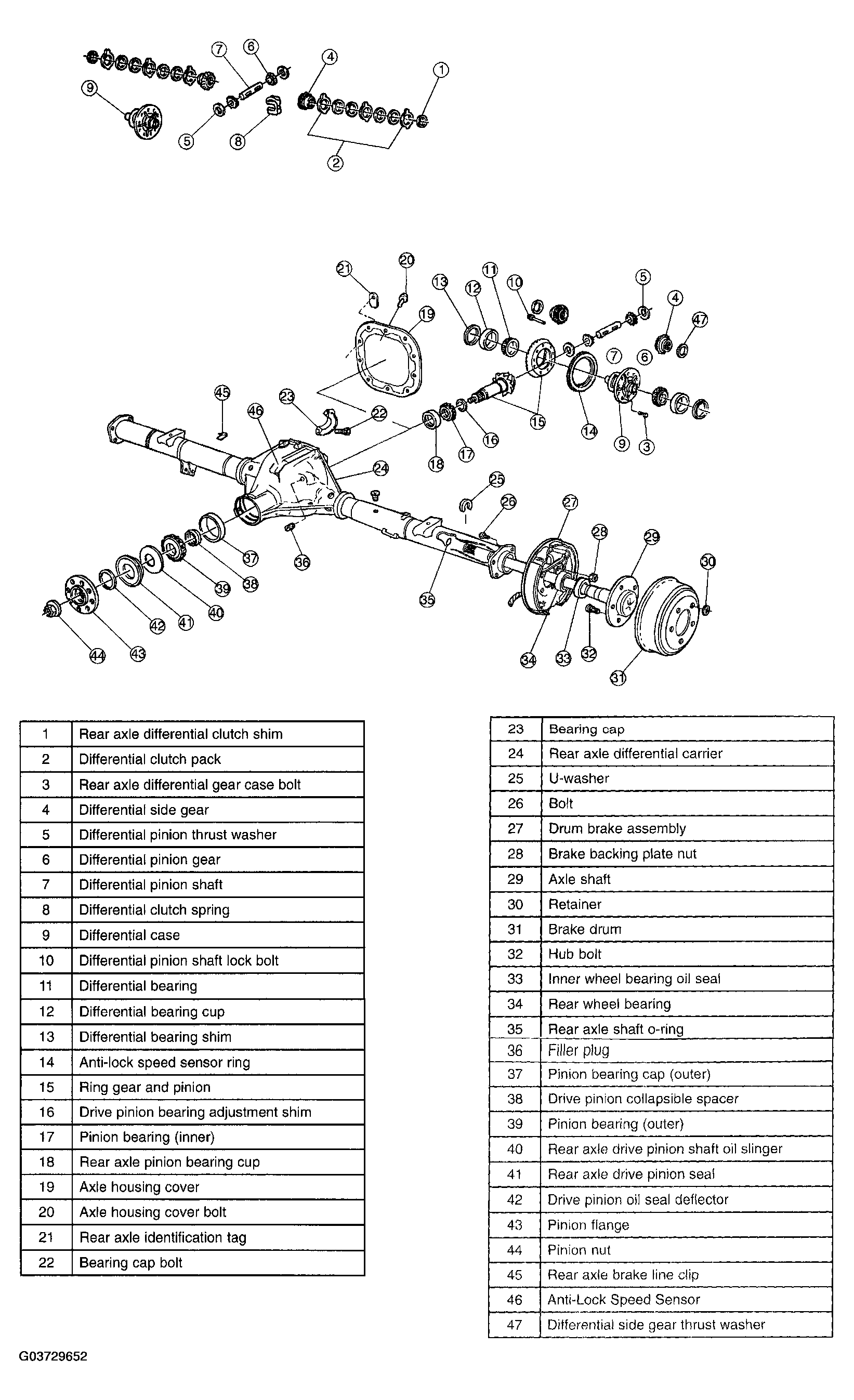

Fig 1: Exploded View Of Rear Axle Structure (Limited Slip)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
