Limited Slip Differential Bench Torque Test

  1. Check the torque required to rotate one differential side gear
    • Mount the differential case and Torque Tool ST  205-022 or equivalent in a vise
    • The initial minimum break-away torque, if original clutch plates are used, must be within specification. The minimum rotating torque required to keep the differential side gear turning with new clutch plates may vary.

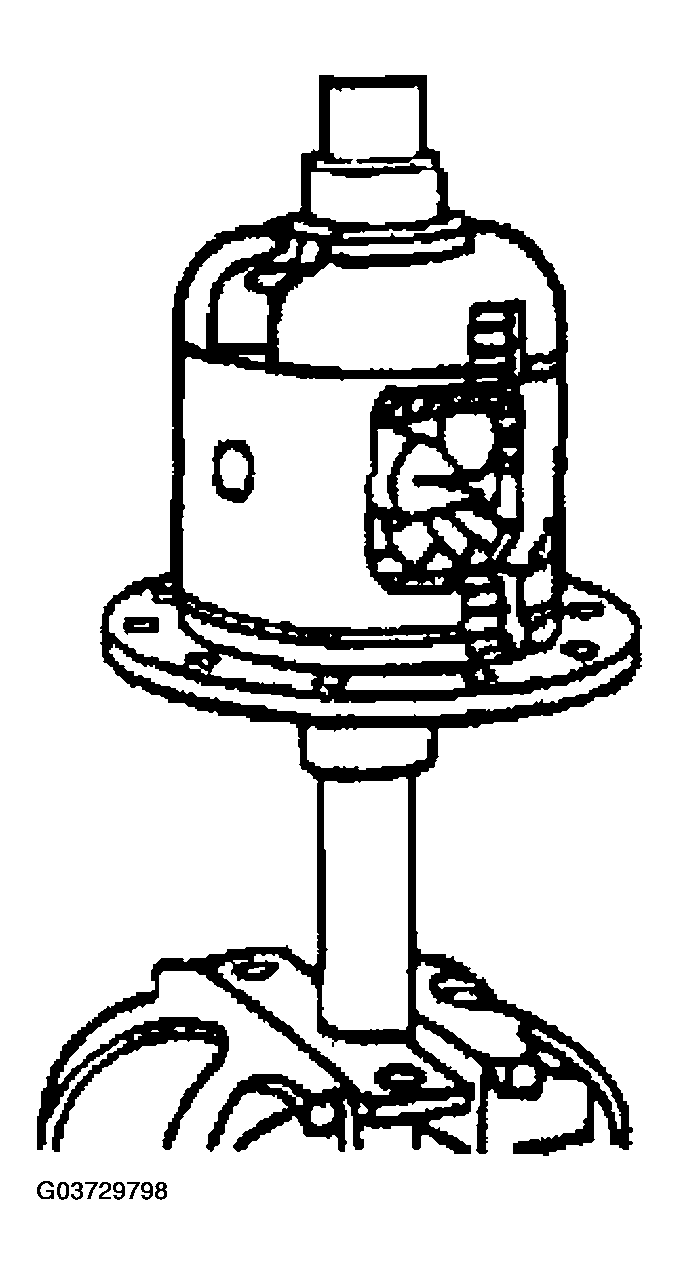

      Fig 1: Mounting Differential Case And Torque Tool
      G03729798Courtesy of MAZDA MOTORS CORP.
