Axle And Differential Structural View Rear (Standard)

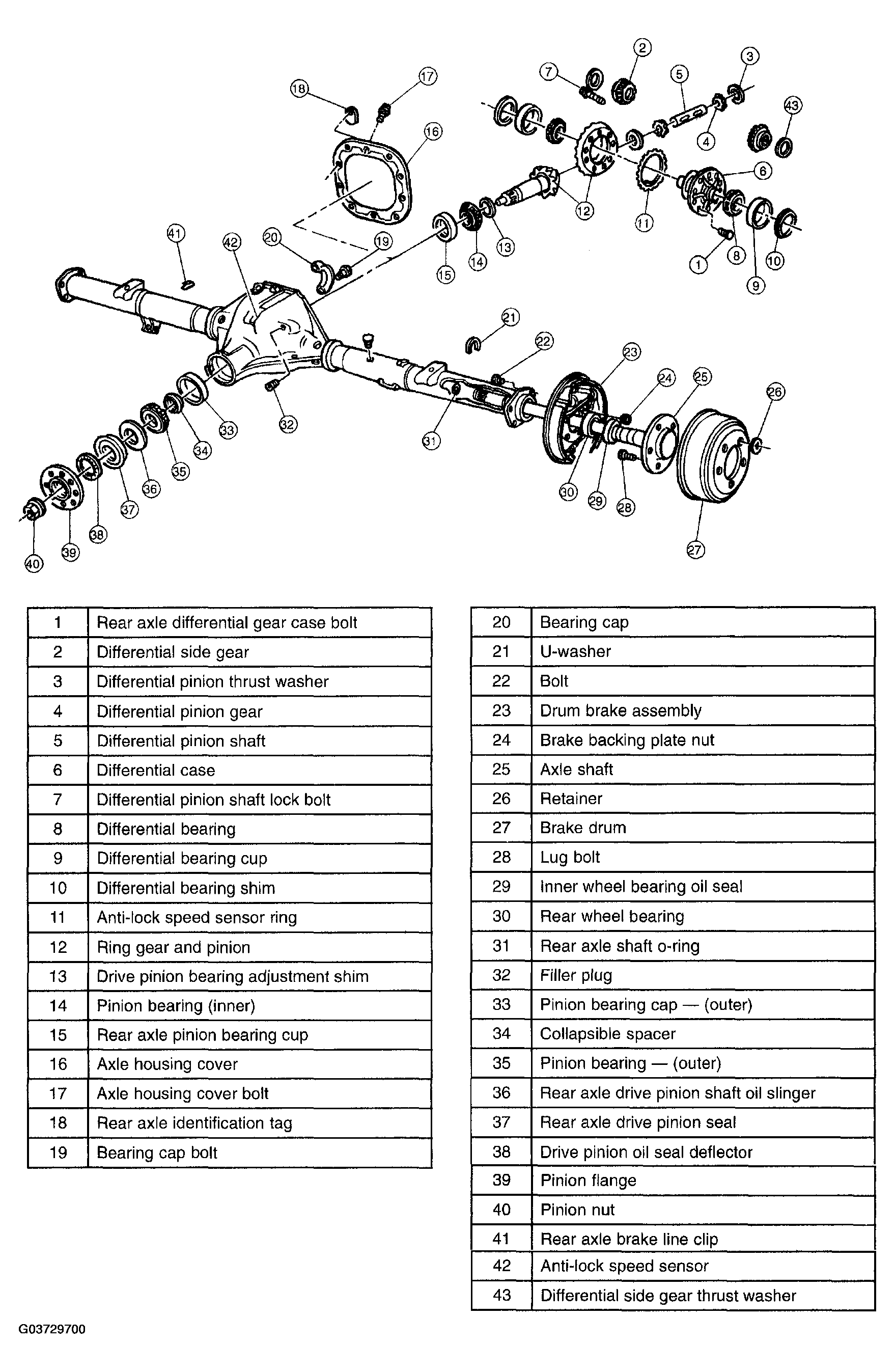

Fig 1: Exploded View Of Rear Axle And Differential (Standard)

G03729700

Courtesy of MAZDA MOTORS CORP.
