Brake Pedal (Manual Transmission) Removal/Installation

NOTE:

When removing the stoplight switch, retain the bushing and hairpin clip. They will be required for installation.

Disconnect the brake master cylinder push rod.
1. Remove the hairpin clip (1).
2. Separate the stoplight switch (2) and the brake booster push rod from the brake pedal pin.
3. Remove the brake booster push rod bushing (3).
Disconnect the clutch pedal position (CPP) switch electrical connector.

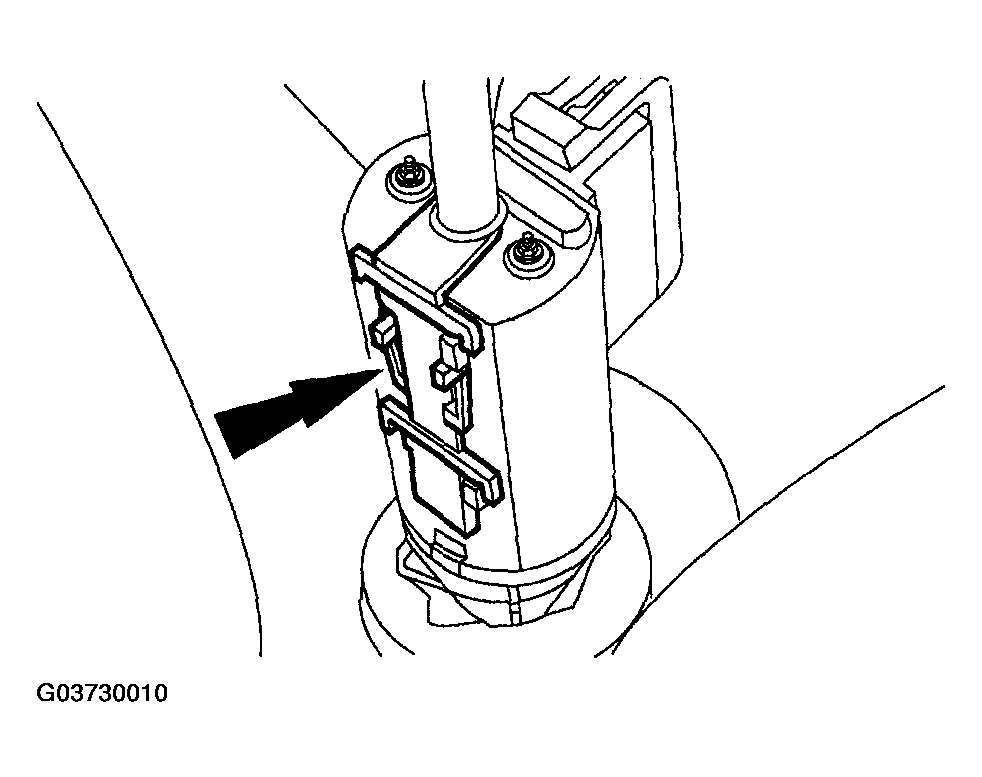

Fig 1: Disconnecting Clutch Pedal Position (CPP) Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the clutch pedal master cylinder rod.
Remove the bolts (4).
Remove the nuts (5).
Remove the brake and clutch pedal assembly (6).

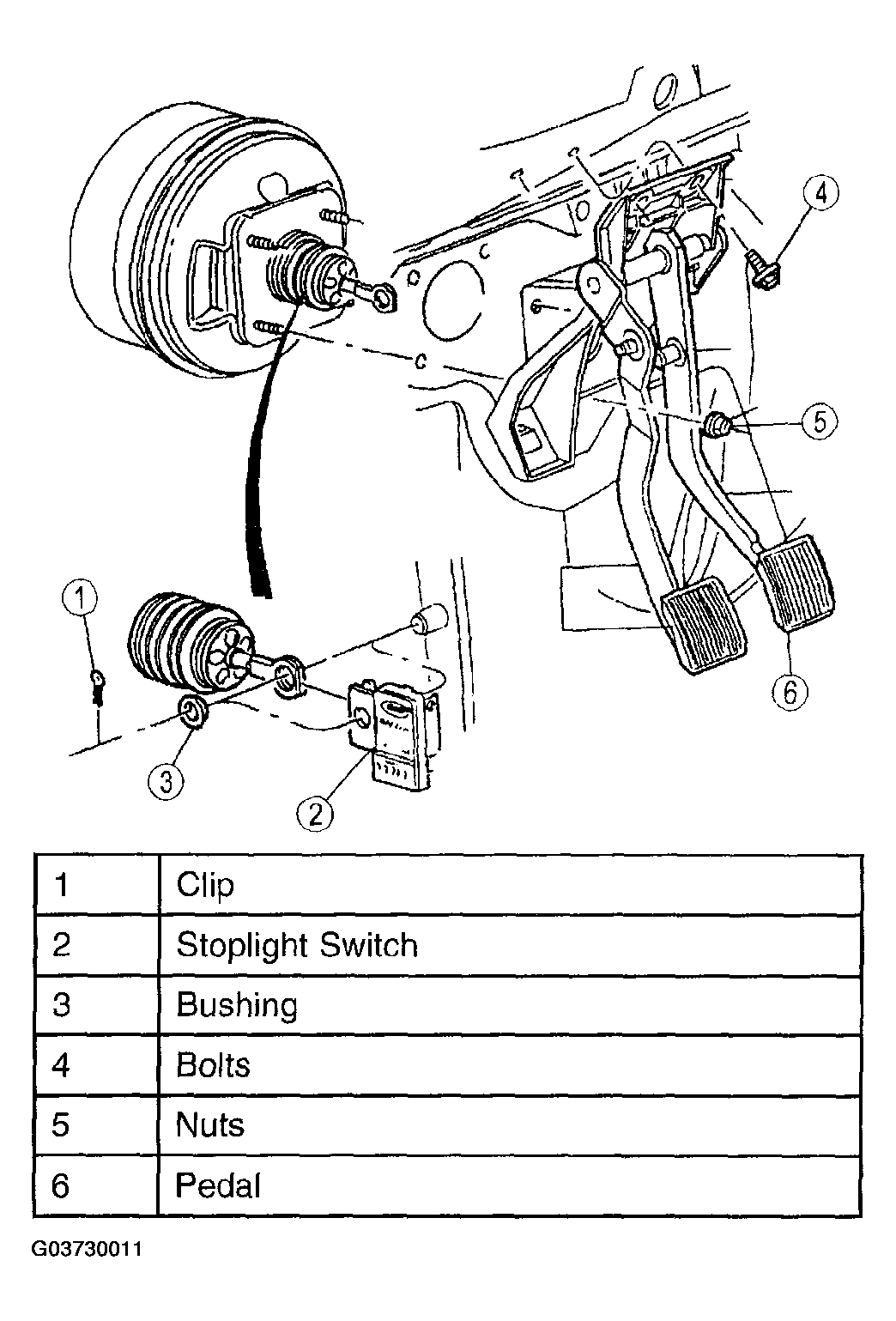

Fig 2: Removing Brake And Clutch Pedal Assembly
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
Tightening torque

Bolts and Nuts: 21-29 N.m {2.1-3 kgf.m, 15-21 ft.lbf}
