No Communication With The SJB

PINPOINT TEST 5 - NO COMMUNICATION WITH SJB

PINPOINT TEST 5		NO COMMUNICATION WITH THE SJB
STEP	INSPECTION		ACTION

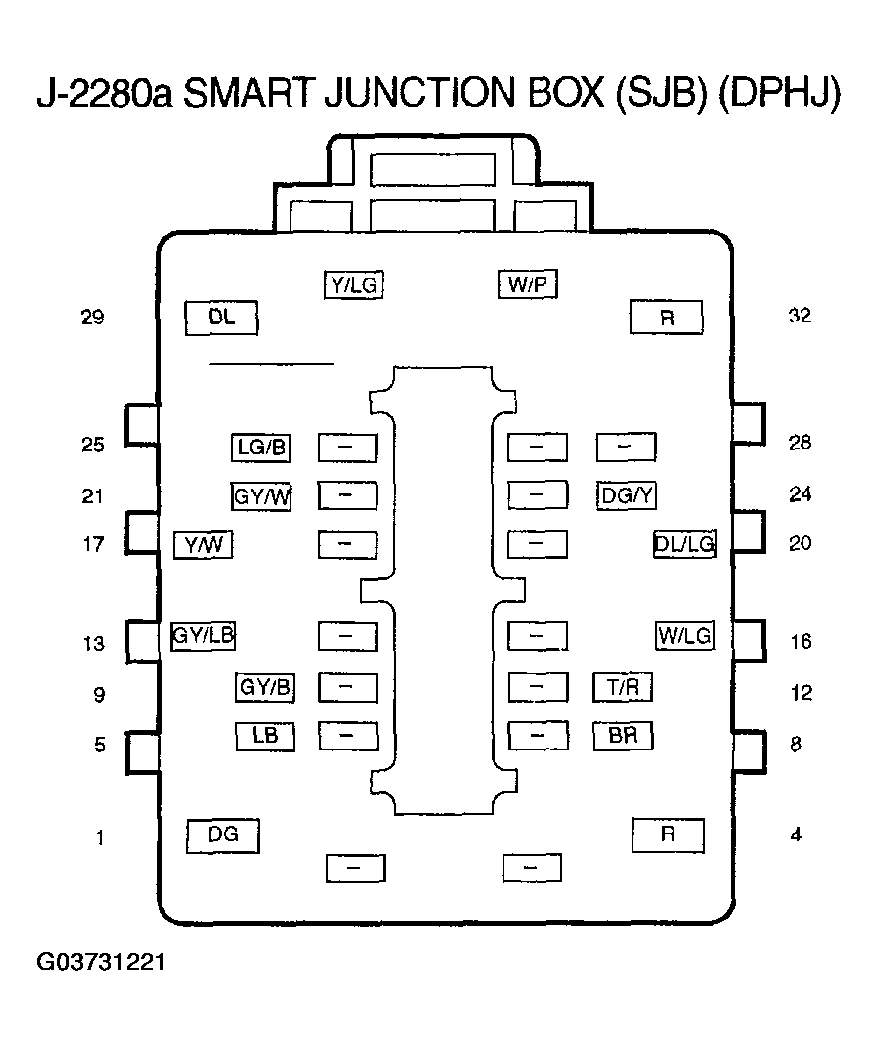

1	CHECK POWER TO THE SJB Key OFF. Disconnect SJB connector J-2280a. Key ON, engine OFF (KOEO). Measure the voltages between SJB connector J-2280a pins 1, circuit DG, 29, circuit DL, 32, circuit R and ground. Are all voltages 10 volts or more?	Yes	Go to step 2.
1		No	Repair the circuit or circuits in question. Test the system for normal operation.

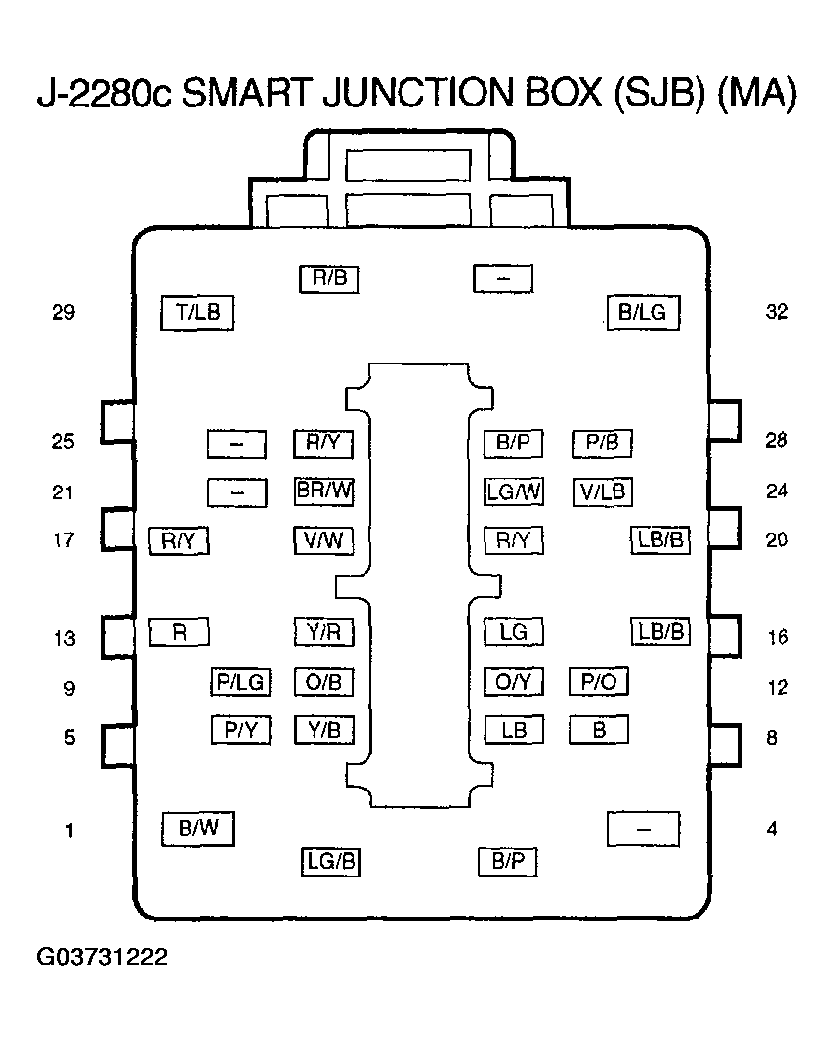

2	CHECK SJB GROUND CIRCUITS Key OFF. Disconnect SJB connector J-2280c. Measure the resistance between the SJB connector J-2280c pins 1, circuit B/W and 8, circuit B and ground. Is the resistance less than 5 ohms on both circuits?	Yes	Replace the SJB. See SMART JUNCTION BOX (SJB) REMOVAL/INSTALLATION . Test the system for normal operation.
2		No	Repair the circuit. Test the system for normal operation.
