Headlamps Are On Continuously

PINPOINT TEST 4 - HEADLAMPS ARE ON CONTINUOUSLY

PINPOINT TEST 4		HEADLAMPS ARE ON CONTINUOUSLY
STEP	INSPECTION		ACTION

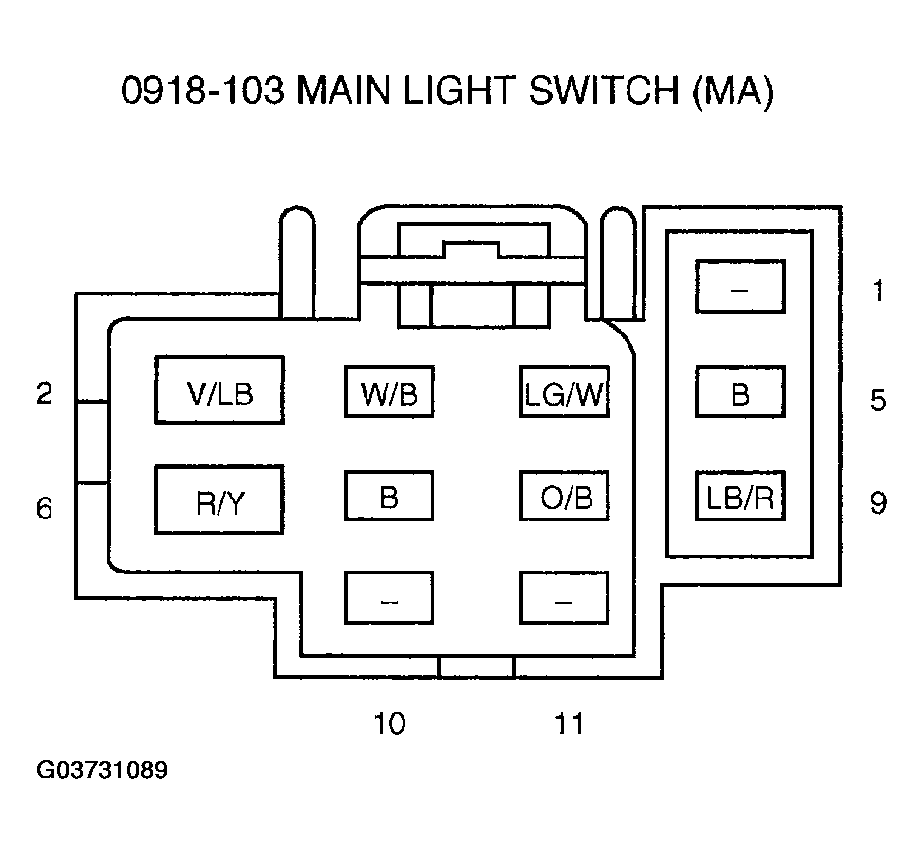

1	CHECK THE HEADLAMP SWITCH NOTE: Make sure the multifunction switch is in the low beam position Key OFF. Disconnect: Main Light Switch 0918-103. Do the headlamps continue to illuminate? Are the fuse(s) OK?	Yes	Go to step 2.
1		No	Install a new headlamp switch. See MAIN LIGHT SWITCH REMOVAL/INSTALLATION . Test the system for normal operation.
2	CHECK THE MULTIFUNCTION SWITCH Disconnect: Multifunction Switch 0918-105. Do the headlamps continue to illuminate?	Yes	If the high beams are illuminated, Go to step 6. If the low beams are illuminated, Go to step 4.
2		No	Go to step 3.
3	CHECK CIRCUIT V/LB FOR A SHORT TO POWER Measure the voltage between the multifunction switch 0918-105 pin 8, circuit V/LB, harness side and ground. Is any voltage present?	Yes	Repair the circuit. Test the system for normal operation.
3		No	Install a new multifunction switch. See MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION . Test the system for normal operation.

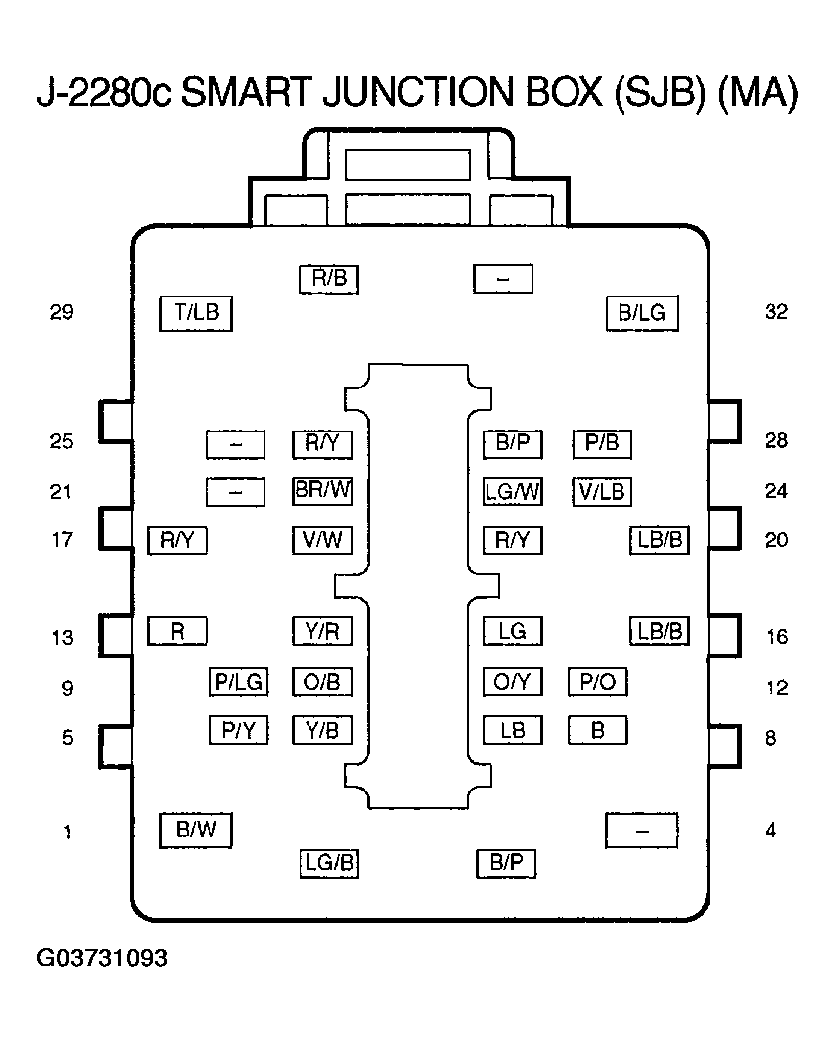

4	CHECK CIRCUIT R/B FOR SHORT TO POWER Disconnect: SJB J-2280c. Do the headlamps continue to illuminate?	Yes	Go to step 5.
4		No	Repair the circuit. Test the system for normal operation.

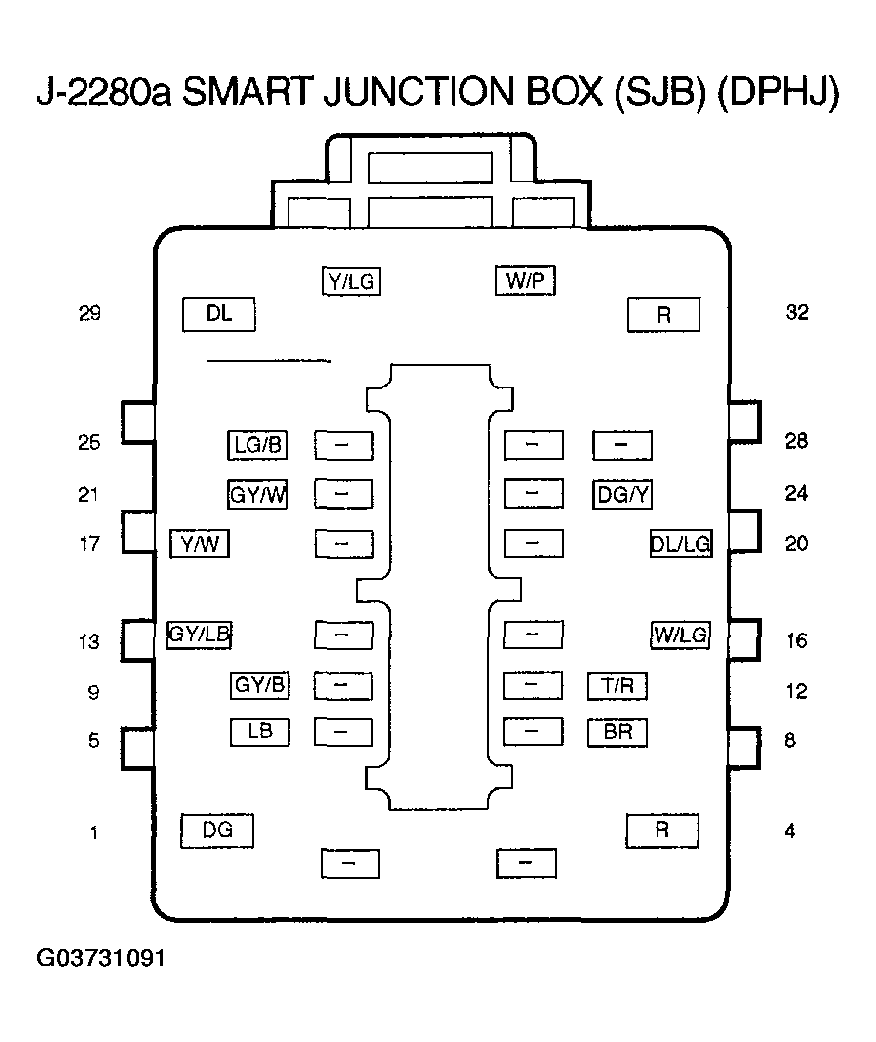

5	CHECK THE SJB FOR A SHORT TO POWER Disconnect: SJB J-2280a. Do the headlamps continue to illuminate?	Yes	If RH headlamp, Repair circuit DL/LG. Test the system for normal operation. If LH headlamp, Repair circuit W/LG. Test the system for normal operation.
5		No	Go to step 9.

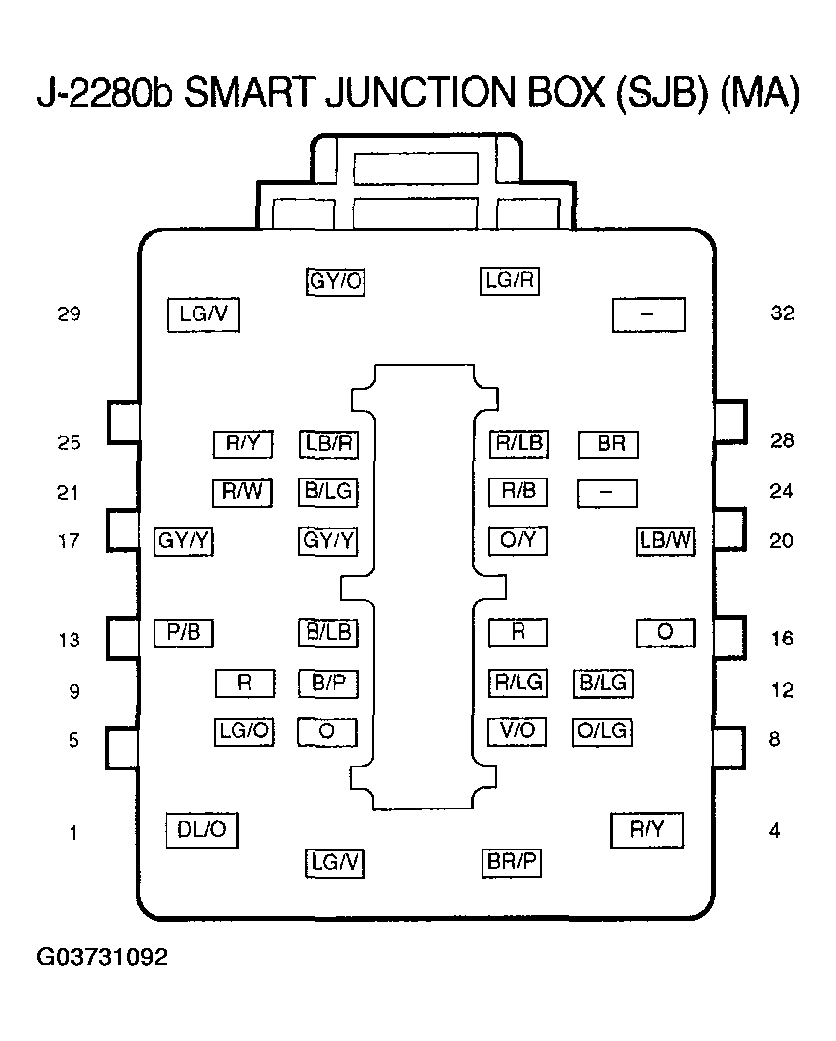

6	CHECK CIRCUIT GY/O FOR SHORT TO POWER Disconnect: SJB J-2280b. Do the headlamps continue to illuminate?	Yes	Go to step 7.
6		No	Repair circuit GY/O. Test the system for normal operation.
7	CHECK CIRCUIT LG/B FOR SHORT TO POWER Disconnect: SJB J-2280a. Connect: SJB J-2280b. Do the headlamps continue to illuminate?	Yes	Repair the circuit. Test the system for normal operation.
7		No	Go to step 8.
8	CHECK CIRCUIT GY/LB FOR SHORT TO POWER Observe the high beam indicator. Is the high beam indicator illuminated?	Yes	Repair the circuit. Test the system for normal operation.
8		No	Go to step 9.

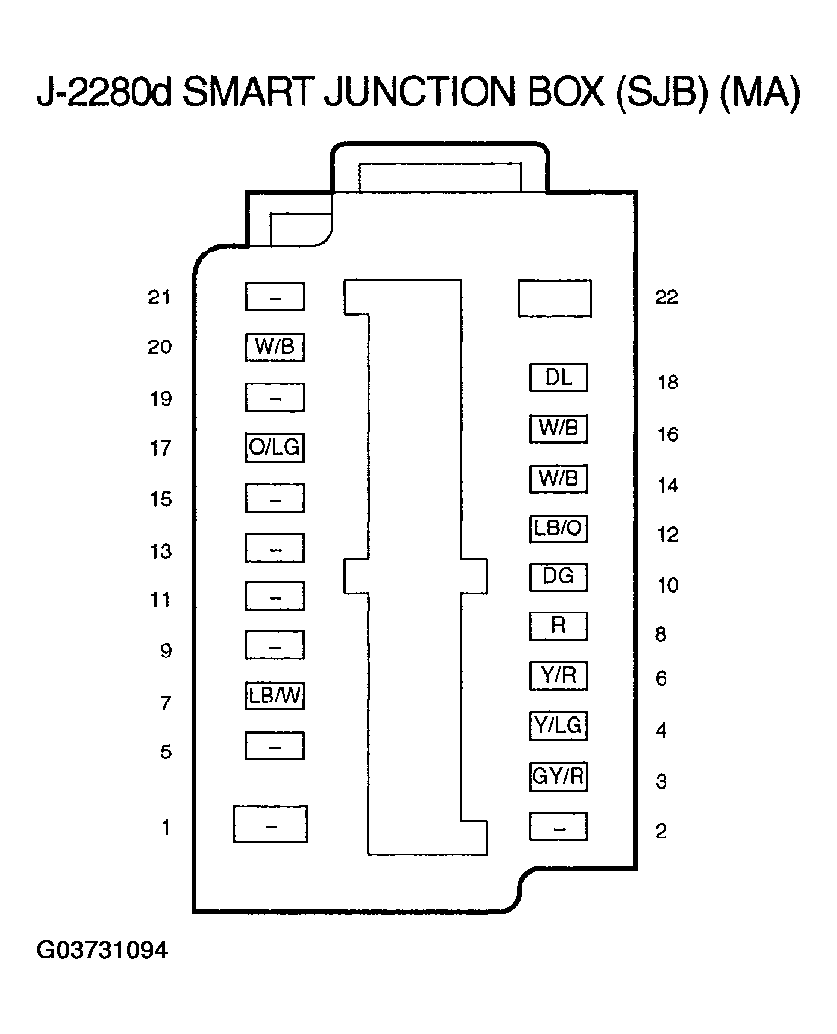

9	CHECK FOR CORRECT SJB OPERATION Key OFF. Disconnect all SJB connectors. Check for: corrosion pushed-out pins Connect all SJB connectors and make sure they seat correctly. Operate the system and verify the concern is still present. Is the concern still present?	Yes	Install a new SJB. Test the system for normal operation.
9		No	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. Clear the DTCs. REPEAT the self-test.
