Flash-To-Pass Feature Is Inoperative

PINPOINT TEST 5 - FLASH-TO-PASS FEATURE IS INOPERATIVE

PINPOINT TEST 5		FLASH-TO-PASS FEATURE IS INOPERATIVE
STEP	INSPECTION		ACTION
1	CHECK CIRCUIT DL/O FOR VOLTAGE Disconnect: Multifunction Switch 0918-105. Measure the voltage between the multifunction switch 0918-105 pin 6, circuit DL/O, harness side and ground. Is the voltage greater than 10 volts?	Yes	Install a new multifunction switch. See MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION . Test the system for normal operation.
1		No	Go to step 2.

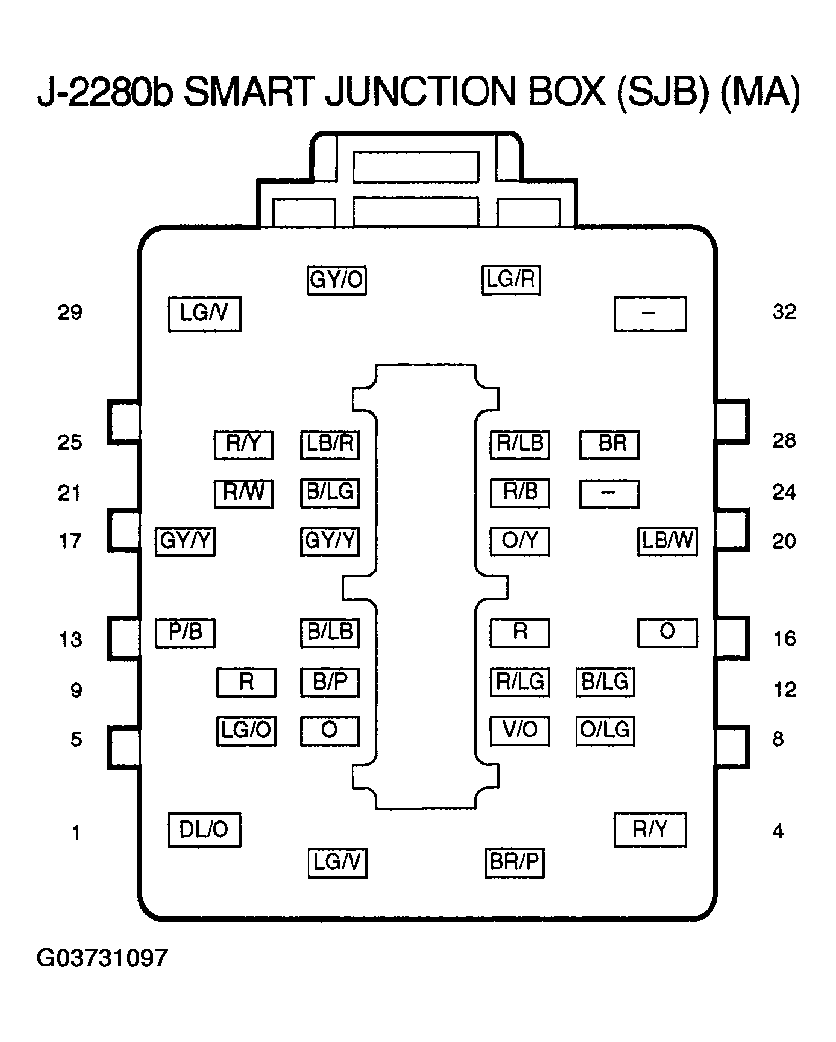

2	CHECK CIRCUIT DL/O FOR AN OPEN Disconnect: SJB J-2280b. Measure the resistance between the multifunction switch 0918-105 pin 6 circuit DUO, harness side and the SJB J-2280b pin 1, circuit DL/O, harness side. Is the resistance less than 5 ohms?	Yes	Go to step 3.
2		No	Repair the circuit. Test the system for normal operation.
3	CHECK FOR CORRECT SJB OPERATION Key OFF. Disconnect all SJB connectors. Check for: corrosion pushed-out pins Connect all SJB connectors and make sure they seat correctly. Operate the system and verify the concern is still present. Is the concern still present?	Yes	Install a new SJB. Test the system for normal operation.
3		No	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. Clear the DTCs. REPEAT the self-test.
