DTC P1714, P1715, P1716, P1717, P1740: Solenoid Mechanical Failure 5R44E And 5R55E Only

NOTE:

• Repair all other DTCs before repairing the following DTCs: P1714, P1715, P1716, P1717, P1740.

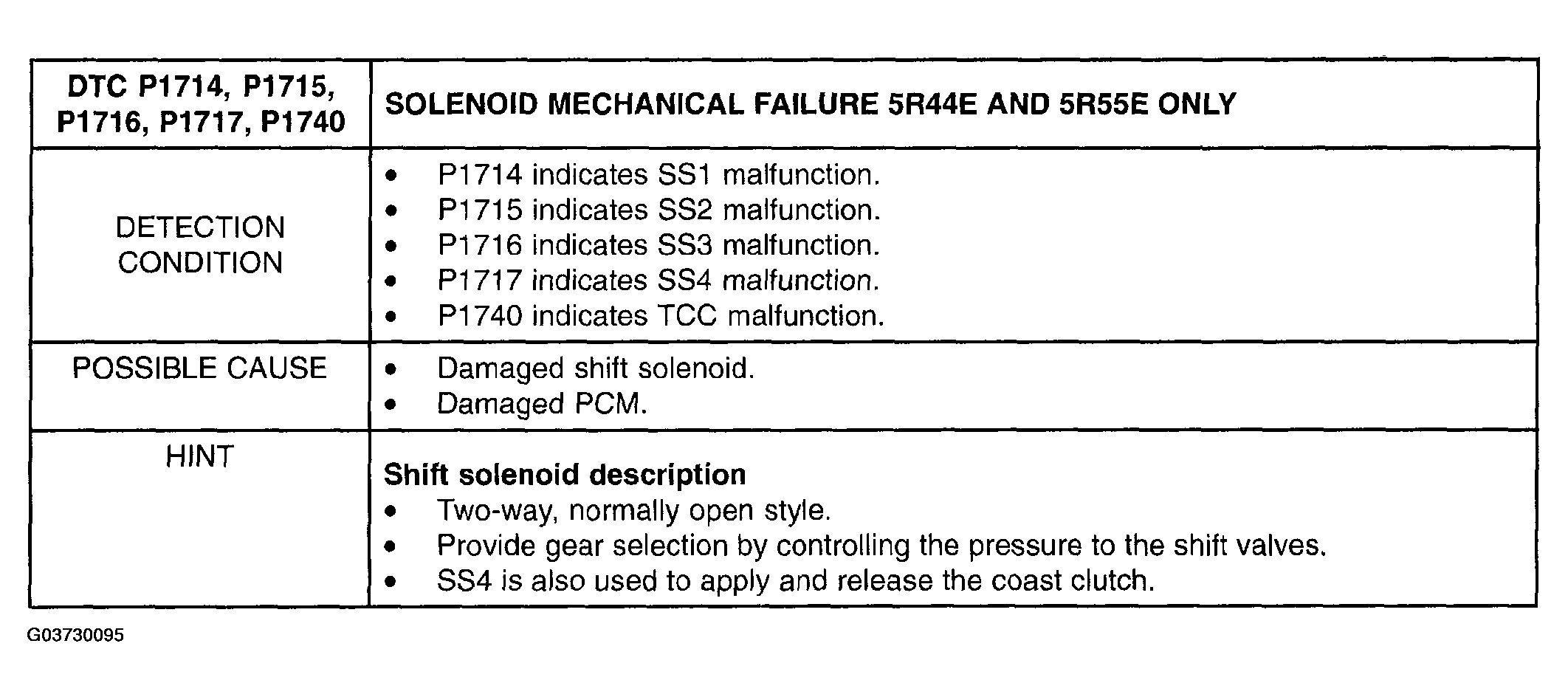

Fig 1: DTC P1714, P1715, P1716, P1717, P1740 - Detection Conditions And Possible Causes

Courtesy of MAZDA MOTORS CORP.

DTC P1714, P1715, P1716, P1717, P1740 SOLENOID MECHANICAL FAILURE 5R44E AND 5R55E ONLY

DTC P1714, P1715, P1716, P1717, P1740		SOLENOID MECHANICAL FAILURE 5R44E AND 5R55E ONLY
STEP	INSPECTION		ACTION
1	Was PCM Quick Test performed?	Yes	Go to step 2.
		No	Perform PCM Quick Test. See PCM QUICK TEST .
2	ELECTRONIC DIAGNOSIS Are other DTCs present for TFT or shift solenoids?	Yes	Repair the DTCs for TFT or shift solenoids first.
		No	Go to step 3.
3	TRANSMISSION DRIVE CYCLE TEST Perform transmission drive cycle test. See TRANSMISSION DRIVE CYCLE TEST . See AUTOMATIC TRANSMISSION DIAGNOSIS . Does the vehicle upshift and downshift OK?	Yes	Go to step 4.
		No	See SYMPTOM TROUBLESHOOTING CHART - AUTOMATIC TRANSMISSION  to diagnose shift concerns.
4	VERIFY TROUBLESHOOTING OF DTCs COMPLETED Make sure to reconnect all disconnected connectors. Clear DTCs from PCM memory using WDS or equivalent tester generic OBD-II function. Perform PCM Quick Test. Is same DTC present?	Yes	Replace PCM and repeat PCM Quick Test.
		No	If any other DTC is present, go to applicable DTC inspection. If no DTC is present, troubleshooting complete.
