DTC P0731, P0732, P0733, P0734, P0743, P0750, P0751, P0751, P0755, P0760, P0761, P0765: Shift Solenoids SS1, SS2, SS3, SS4 And Torque Converter Clutch Solenoid 5R44E And 5R55E Only

WARNING: This page is about a different variant/trim than selected.
NOTE:

Read and record all DTCs. All Digital TR sensor and VSS DTCs must be repaired before entering Output State Control (OSC).

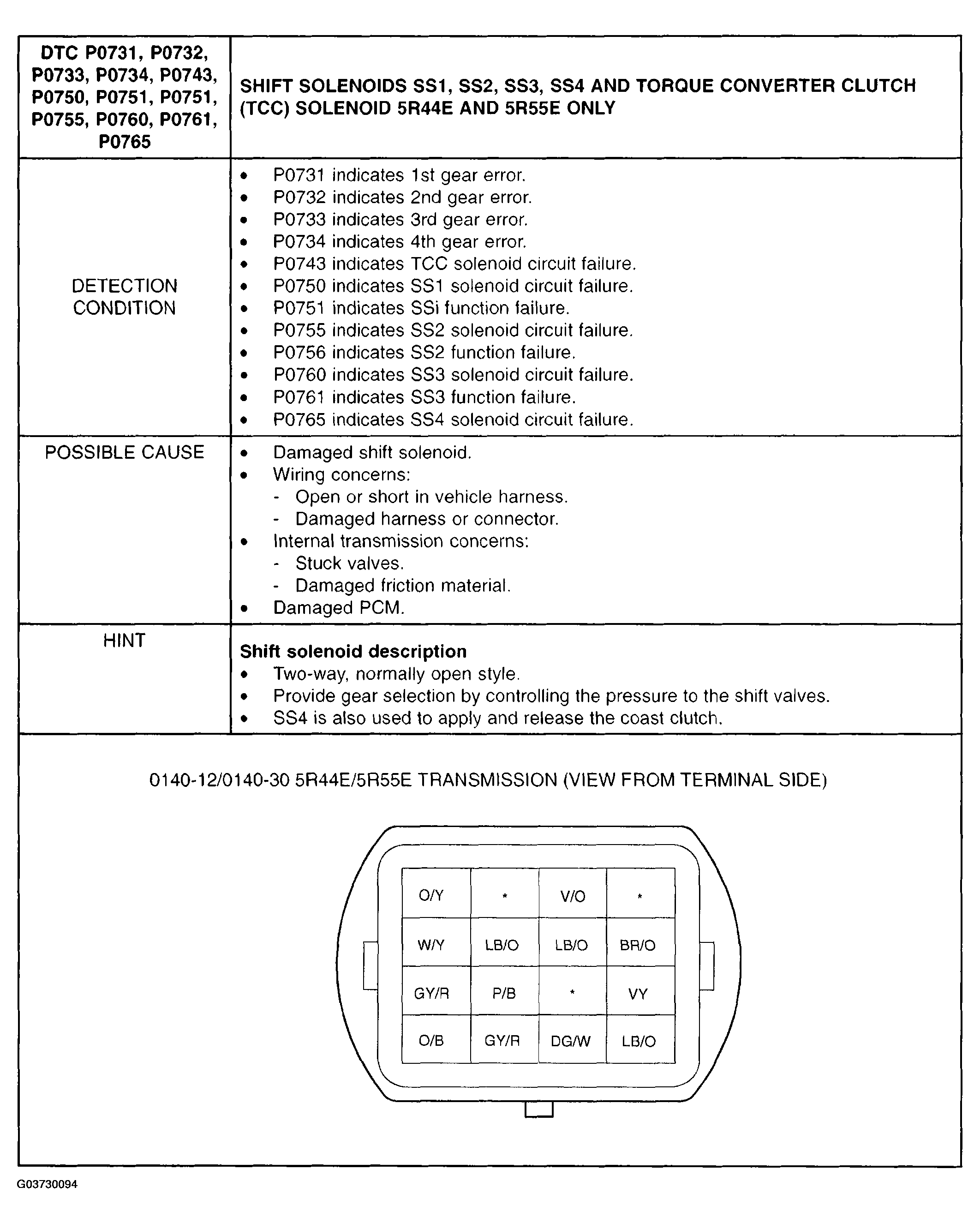

Fig 1: DTC P0731, P0732, P0733, P0734, P0743, P0750, P0751, P0751, P0755, P0760, P0761, P0765 - Detection Conditions And Possible Causes
G03730094Courtesy of MAZDA MOTORS CORP.
DTC P0731, P0732, P0733, P0734, P0743, P0750, P0751, P0751, P0755, P0760, P0761, P0765 - SHIFT SOLENOIDS SS1, SS2, SS3, SS4 AND TORQUE CONVERTER CLUTCH SOLENOID 5R44E AND 5R55E ONLY

DTC P0731, P0732, P0733, P0734, P0743, P0750, P0751, P0751, P0755, P0760, P0761, P0765 SHIFT SOLENOIDS SS1, SS2, SS3, SS4 AND TORQUE CONVERTER CLUTCH (TCC) SOLENOID 5R44E AND 5R55E ONLY
STEP INSPECTION ACTION
1
  • Was PCM Quick Test Performed?
 Yes Go to step 2.
No Perform PCM Quick Test. See PCM QUICK TEST .
2 LOOSE CONNECTION TEST
  • Key ON, Engine OFF (KOEO).
  • Access Output State Control (OSC) Mode. See AUTOMATIC TRANSMISSION DIAGNOSIS .
  • Enter Trans-Bench Mode.
  • Select PIDS to be monitored: SS1, SS2, SS3, SS4 or TCC.
  • Select "ON" to turn suspect solenoid on.
  • Press "SEND."
  • Wiggle all wiring and connectors to the transmission. Monitor the Solenoid State for changes.
  • Select "OFF" to turn solenoid off.
  • Press "SEND."
  • Does the suspect solenoid(s) fault state change?
 Yes Repair open or short in the vehicle harness or connector.
Go to step 9.
No Go to step 3.
3 SOLENOID FUNCTIONAL CHECK
  • Monitor each suspect solenoid state.
  • Turn each solenoid ON and OFF.
  • Does the solenoid turn ON and OFF when commanded and can solenoid activation be heard?
 Yes Go to step 4.
No Go to step 5.
4 OSC TRANS-DRIVE MODE (GR_CM OR TCC)
  • Perform OSC Trans-Drive Mode.
  • Select GR_CM for Shift Solenoid Failure and follow procedures for GR_CM as listed in AUTOMATIC TRANSMISSION DIAGNOSIS .
  • Select TCC for Torque Converter Clutch Solenoid Failure. Follow procedures of TCC in Drive Mode as listed in AUTOMATIC TRANSMISSION DIAGNOSIS .
  • Does the transmission upshift and downshift or torque converter engage/disengage when commanded?
 Yes Clear all DTCs. Road test to verify if concern is still present. If concern is still present, See SYMPTOM TROUBLESHOOTING CHART - AUTOMATIC TRANSMISSION  to diagnose shift or torque converter concern.
No Go to step 5.
5 CHECK FOR BATTERY VOLTAGE
 Yes Go to step 6.
No Check for open or short circuit in harness or solenoid.
Repair as necessary.
Go to step 9.
6 ELECTRICAL SIGNAL CHECK
  • Leave positive lead connected to VPWR solenoid terminal and connect negative lead to the signal terminal of the appropriate solenoid.
  • Perform Trans-Bench Mode.
  • Select Parameter SS1, SS2, SS3, SS4 or TCC.
  • Select "ON."
  • Press "SEND."
  • Turn the solenoids ON and OFF, while monitoring the voltage reading on the DVOM, solenoid state on the WDS or equivalent tester (ON and OFF), listen for the solenoid to activate (click).
  • Select "OFF," press "SEND."
  • Does the voltage and solenoid state change?
 Yes Go to step 7.
No Check for open or short circuit in harness, solenoid or a PCM concern.
Repair as necessary.
Go to step 9.
7 CHECK SOLENOID RESISTANCE AT SOLENOID
  • Disconnect the appropriate solenoid connector at the solenoid.
  • Check solenoid resistance by connecting an ohmmeter at the terminals of the solenoid.
  • Measure the resistance for suspect solenoid (SS1, SS2, SS3, SS4 or TCC).
  • Is the resistance for SS1-SS4 within 22-48 ohms or TCC within 8.9-16 ohms?
 Yes Go to step 8.
No Replace the solenoid.
See TRANSMISSION SOLENOID REMOVAL/INSTALLATION .
Go to step 9.
8 CHECK SOLENOID FOR SHORT TO GROUND
  • Check for continuity between engine ground and appropriate shift solenoid terminal with ohmmeter.
  • Is there continuity?
 Yes Replace the solenoid.
See TRANSMISSION SOLENOID REMOVAL/INSTALLATION .
No See SYMPTOM TROUBLESHOOTING CHART - AUTOMATIC TRANSMISSION  to diagnose shift or torque converter concerns.
Go to step 9.
9 VERIFY TROUBLESHOOTING OF DTCs COMPLETED
  • Make sure to reconnect all disconnected connectors.
  • Clear DTCs from PCM memory using WDS or equivalent tester generic OBD-II function.
  • Perform PCM Quick Test.
  • Is same DTC present?
 Yes Replace PCM and repeat PCM Quick Test.
No If any other DTC is present, go to applicable DTC inspection.
If no DTC is present, troubleshooting complete.
