Transfer Case Damper Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda B4000. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a hoist. See LIFTING .
Remove the four bolts and the damper.

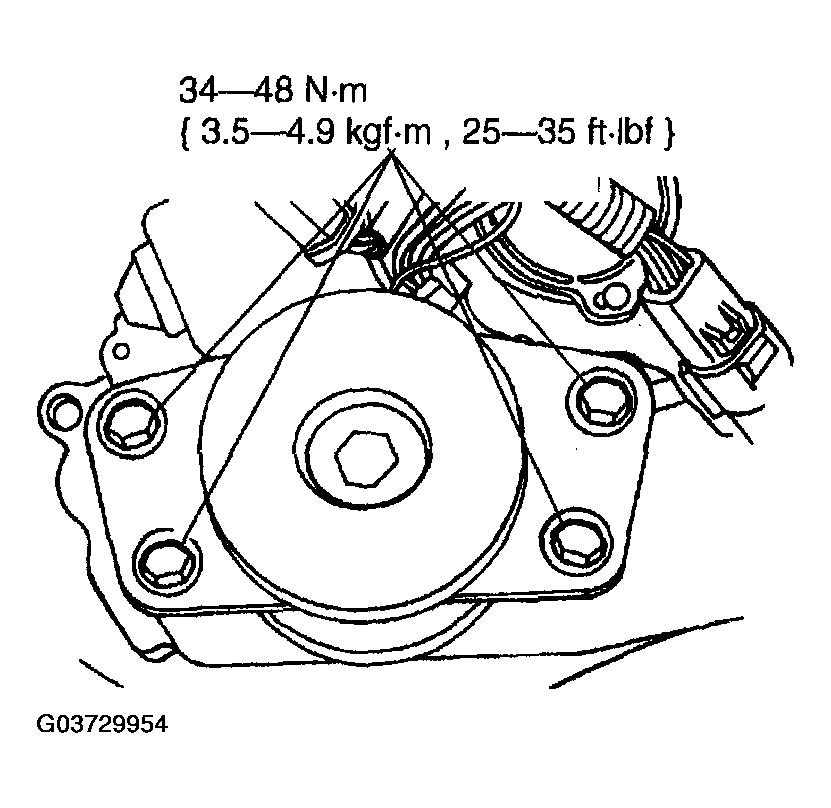

Fig 1: Removing Four Bolts And Damper - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If new bolts are not available, coat the threads of the used bolts with a loctite-type sealant.
Install in reverse order of removal.
