Oil Pressure Sensor Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Disconnect the engine control sensor wiring from the oil pressure sensor.
    Fig 1: Disconnecting Engine Control Sensor Wiring From Oil Pressure Sensor
    G03728774Courtesy of MAZDA MOTORS CORP.
  3. Remove the oil pressure sensor.
  4. To install, reverse the removal procedure.
    1. Apply sealant to oil pressure sender threads.

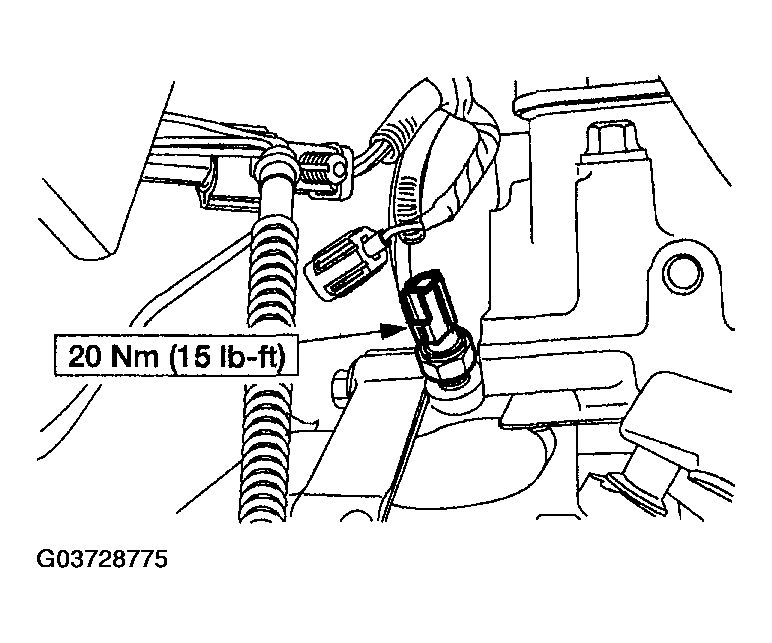

      Fig 2: Installing Oil Pressure Sensor - With Torque Specifications
      G03728775Courtesy of MAZDA MOTORS CORP.
