| 1 |
VERIFY THE INSTRUMENT CLUSTER WARNING INDICATOR OPERATION
- Key OFF.
- Key ON.
- Observe the instrument cluster charge, low fuel level and the speed control warning indicator operation.
- Does the instrument cluster brake warning indicator prove out?
|
Yes |
Go to step 3. |
| No |
Go to step 2. |
| 2 |
CHECK CIRCUIT B FOR AN OPEN

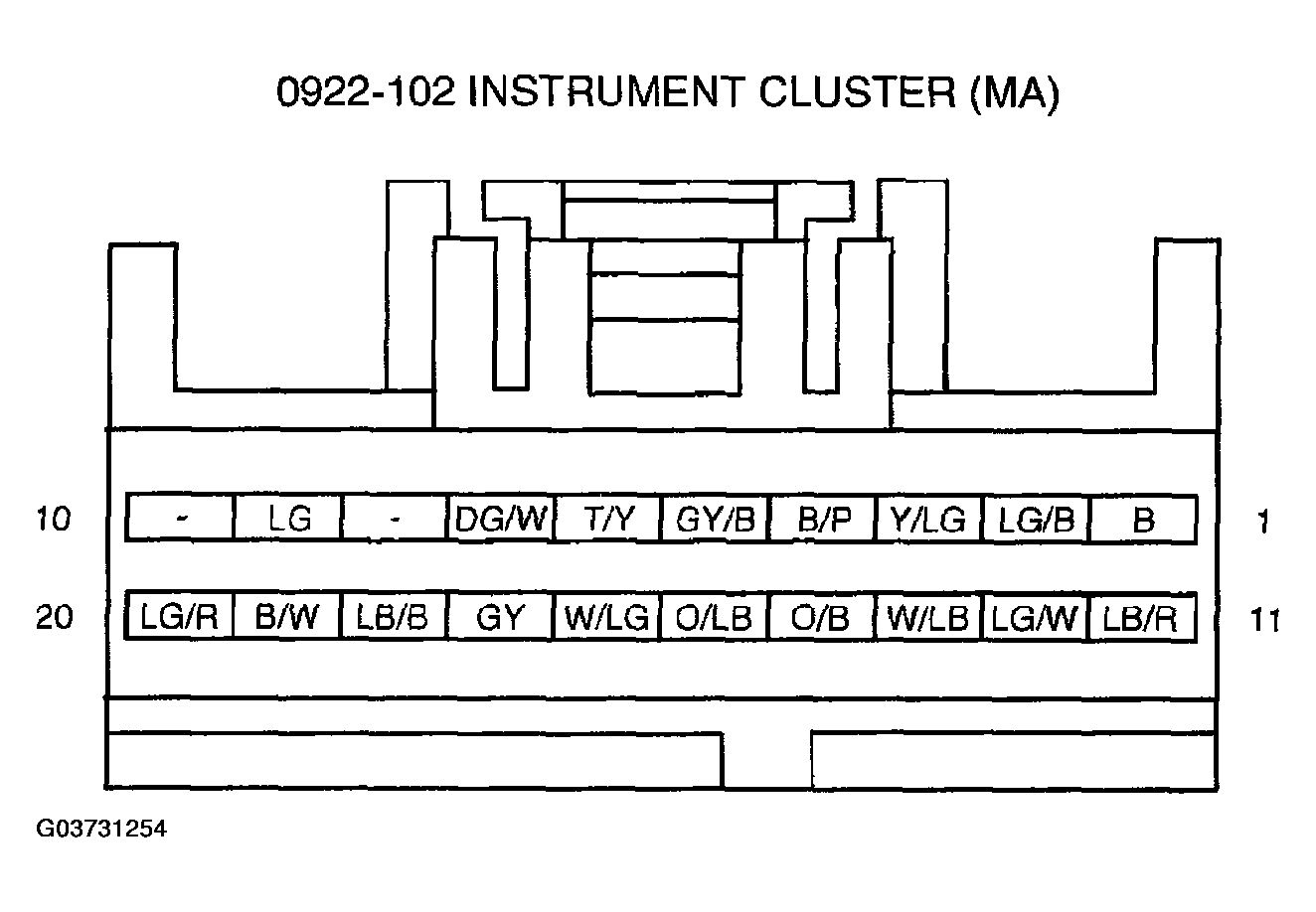

- Disconnect: Instrument Cluster 0922-102.
- Measure the resistance between the instrument cluster 0922-102 pin 1, circuit B, harness side and ground.
- Is the resistance less than 5 ohms?
|
Yes |
Go to step 11. |
| No |
Repair the circuit. Test the system for normal operation. |
| 3 |
CARRY OUT THE INSTRUMENT CLUSTER INDICATOR LAMP CONTROL ACTIVE COMMAND USING THE DIAGNOSTIC TOOL
- Connect the diagnostic tool.
- Key ON.
- Enter the following diagnostic mode on the diagnostic tool: Instrument Cluster Active Command.
- Select the instrument cluster indicator lamp control active command. Trigger the brake lamp active command on then off. Observe the brake warning indicator.
- Does the brake warning indicator illuminate when commanded on and turn off when commanded off?
|
Yes |
Go to step 4. |
| No |
Go to step 11. |
| 4 |
CHECK THE PARKING BRAKE SWITCH
- Key OFF.
- Disconnect: Parking Brake Switch 0918-502.
- Measure the resistance between the parking brake switch 0918-105 pin 1, circuit R/Y, component side and the parking brake switch 0918-105 pin 2, circuit B, component side while engaging the parking brake.
- Is the resistance less than 5 ohms with the parking brake engaged and greater than 10,000 ohms with the parking brake fully disengaged?
|
Yes |
Go to step 5. |
| No |
Install a new parking brake switch. |
| 5 |
CHECK CIRCUIT B FOR AN OPEN
- Measure the resistance between the parking brake switch 0918-105 pin 2, circuit B, harness side and ground.
- Is the resistance less than 5 ohms?
|
Yes |
Go to step 6. |
| No |
Repair the circuit. Test the system for normal operation. |
| 6 |
CHECK THE PARKING BRAKE INPUT
- Connect a fused (10A) jumper wire between the parking brake switch 0918-105 pin 1, circuit R/Y, harness side and the parking brake switch 0918-105 pin 2, circuit B harness side.
- Does the brake warning indicator illuminate?
|
Yes |
Go to step 7. |
| No |
Go to step 8. |
| 7 |
CHECK THE ABS MODULE OPERATION
- Key OFF.

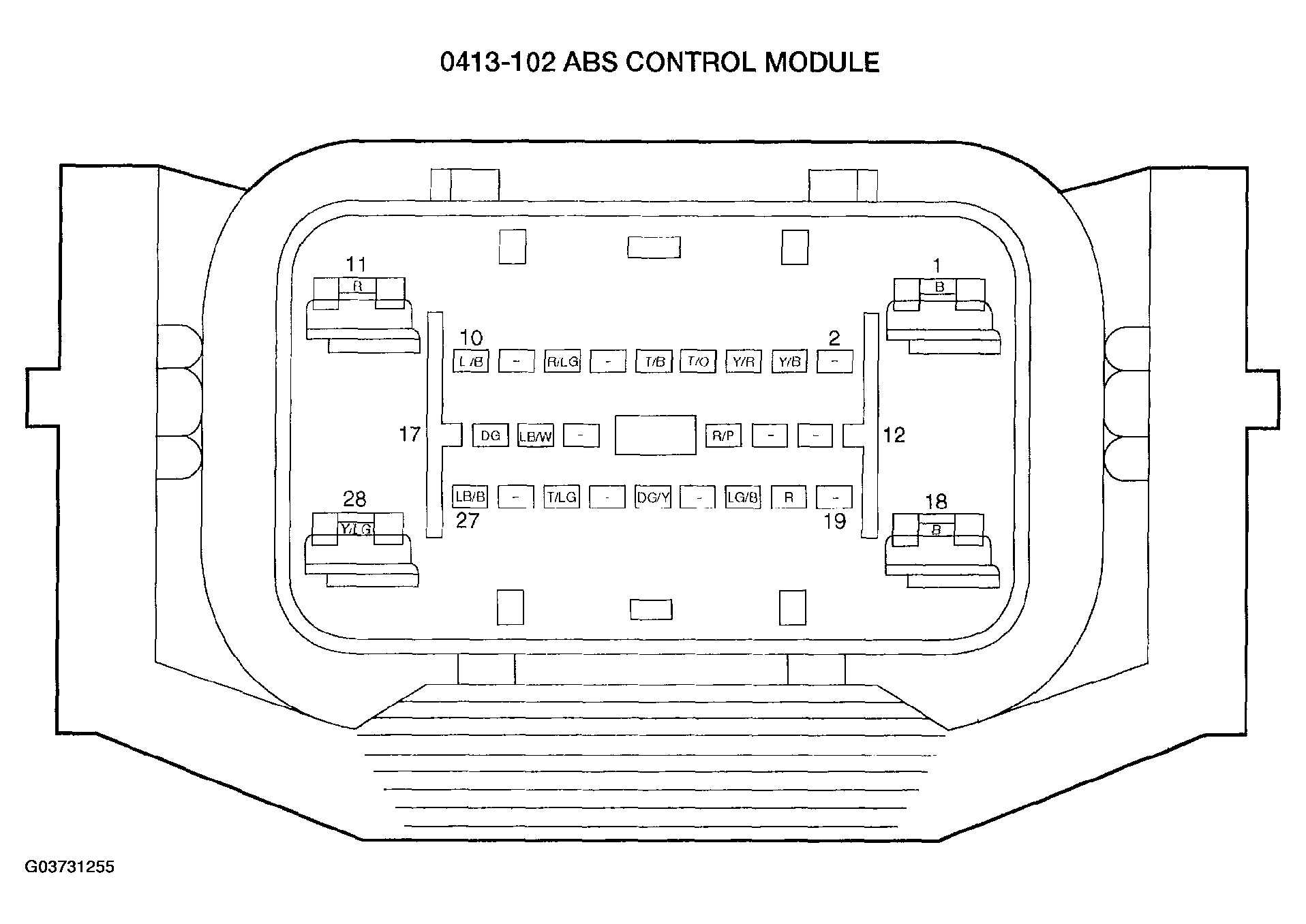

- Disconnect: ABS Module 0413-102.
- Connect a fused (10A) jumper wire between the ABS module 0413-102 pin 27, circuit LB/B, harness side and ground.
- Key ON.
- Observe the brake warning indicator.
- Does the brake warning indicator illuminate with the jumper wire disconnected and turn off with the jumper wire connected?
|
Yes |
Go to step 13. |
| No |
Repair the circuit. Test the system for normal operation. |
| 8 |
CHECK CIRCUITS V/W AND LG/R FOR AN OPEN

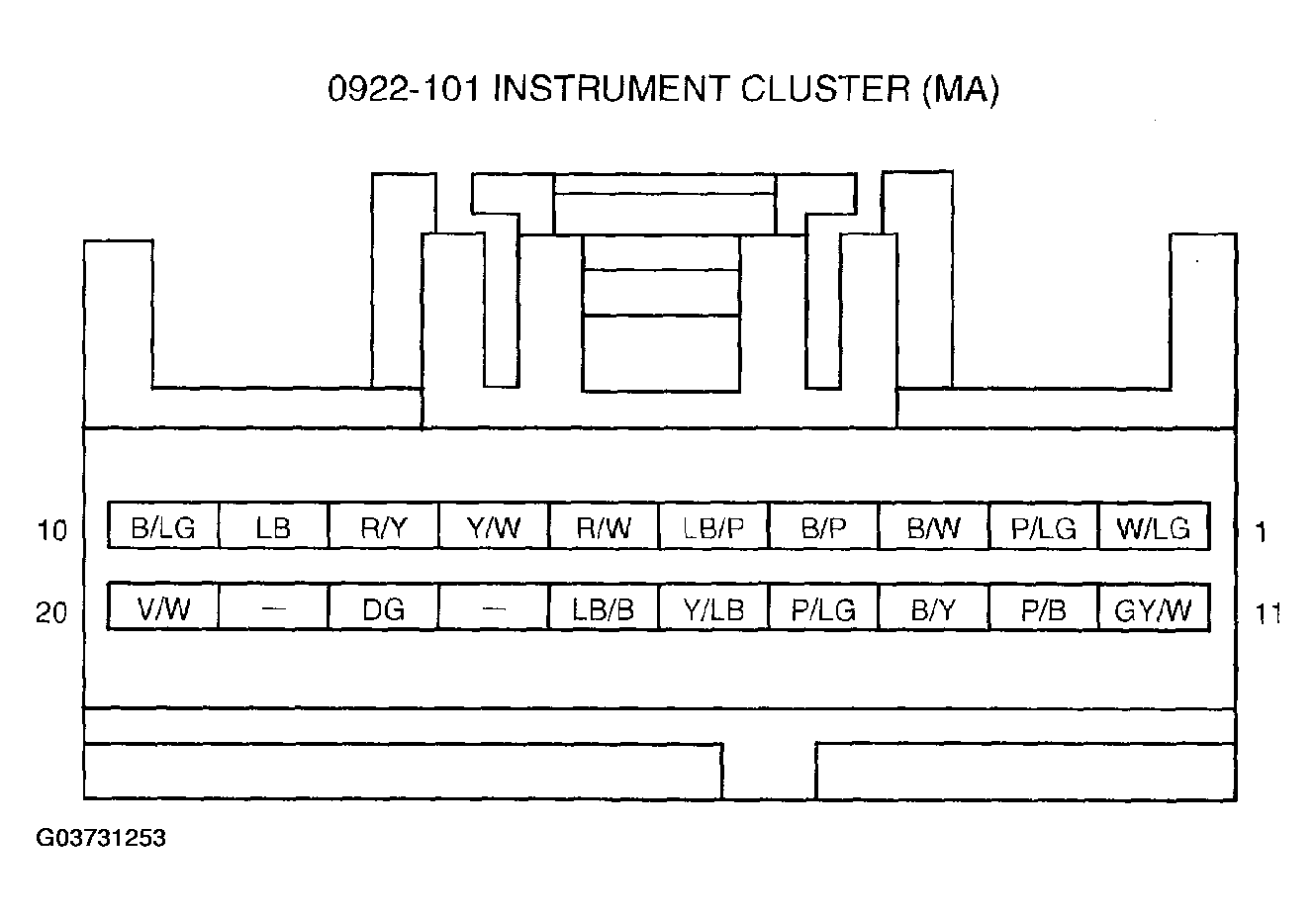

- Disconnect: Instrument Cluster 0922-101.
- Measure the resistance between the instrument cluster 0922-101 pin 20, circuit V/W, harness side and the parking brake switch 0918-105 pin 1, circuit R/Y, harness side.
- Is the resistance less than 5 ohms?
|
Yes |
Go to step 11. |
| No |
Go to step 9. |
| 9 |
CHECK CIRCUIT LG/R FOR AN OPEN

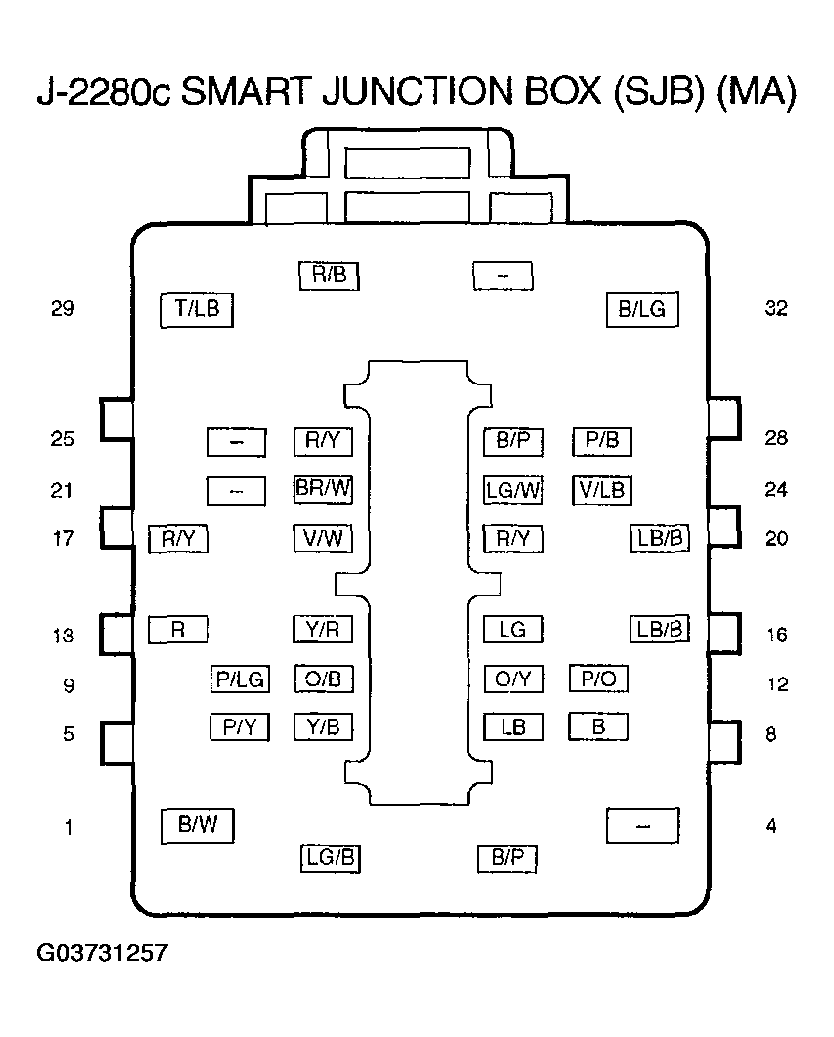

- Disconnect: Smart Junction Box (SJB) J-2280C.
- Measure the resistance between the parking brake switch 0918-105 pin 1, circuit R/Y, harness side and the SJB J-2280c pin 17, circuit R/Y, harness side.
- Is the resistance less than 5 ohms?
|
Yes |
Go to step 10. |
| No |
Repair the circuit. Test the system for normal operation. |
| 10 |
CHECK CIRCUIT V/W FOR AN OPEN
- Measure the resistance between the instrument cluster 0922-101 pin 20, circuit V/W, harness side and the SJB J-2280c pin 18, circuit V/W, harness side.
- Is the resistance less than 5 ohms?
|
Yes |
Go to step 12. |
| No |
Repair the circuit. Test the system for normal operation. |
| 11 |
CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION
- Disconnect all instrument cluster connectors.
- Check for:
- corrosion
- pushed-out pins
- Connect all instrument cluster connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
|
Yes |
Install a new instrument cluster. See INSTRUMENT CLUSTER REMOVAL/INSTALLATION
. Clear the DTCs. REPEAT the instrument cluster self-test. |
| No |
The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. Clear the DTCs. REPEAT the instrument cluster self-test. |
| 12 |
CHECK FOR CORRECT SJB OPERATION
- Disconnect all SJB connectors.
- Check for:
- corrosion
- pushed-out pins
- Connect all SJB connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
|
Yes |
Install a new SJB. Clear the DTCs. REPEAT the self-test. |
| No |
The system is operating correctly at this time.
The concern may have been caused by a loose or corroded connector. Clear the DTCs. REPEAT the self-test. |
| 13 |
CHECK FOR CORRECT ABS MODULE OPERATION
- Disconnect all ABS module connectors.
- Check for:
- corrosion
- pushed-out pins
- Connect all ABS module connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
|
Yes |
Install a new ABS module. Clear the DTCs. REPEAT the PCM self-test. |
| No |
The system is operating correctly at this time.
The concern may have been caused by a loose or corroded connector. Clear the DTCs. REPEAT the self-test. |
|
|
|
|
|
|
|
|
|
|
