Propeller Shaft Rear (4X2) Removal/Installation

With the vehicle in neutral, raise and support the vehicle. See LIFTING .
Index the propeller shaft to rear companion flange.

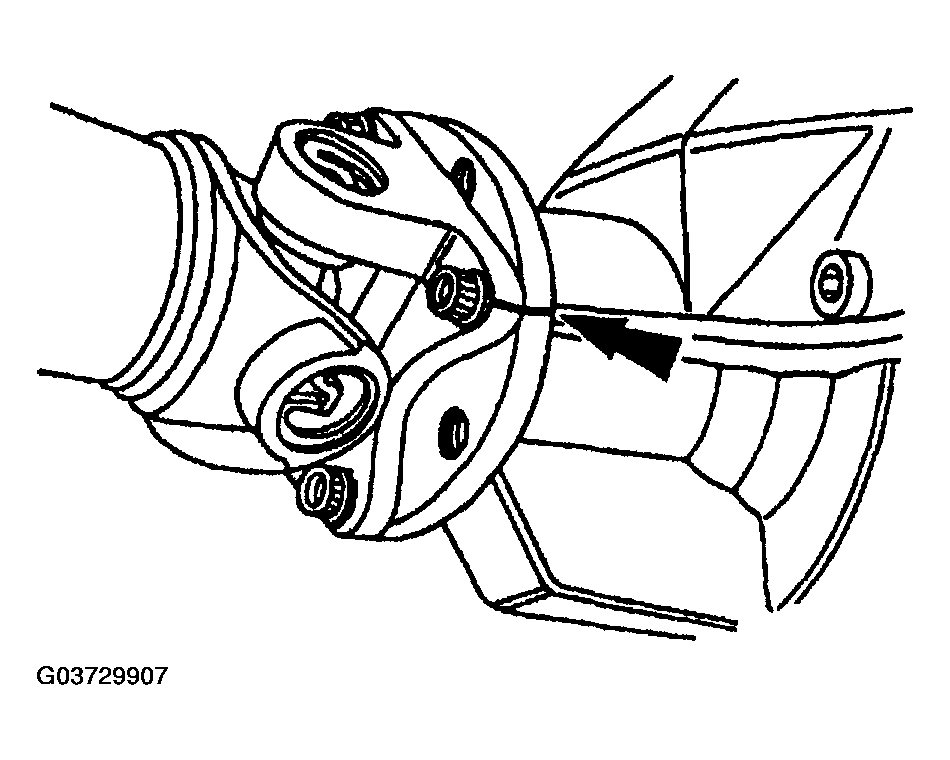

Fig 1: Indexing Propeller Shaft To Rear Companion Flange
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Mark the slip yoke to index the transmission output shaft.
Remove the propeller shaft.
1. Remove the four bolts and disconnect the propeller shaft.
2. Lower the propeller shaft and slide the propeller shaft rearward out of the transmission.
3. Plug the extension housing to prevent fluid loss.

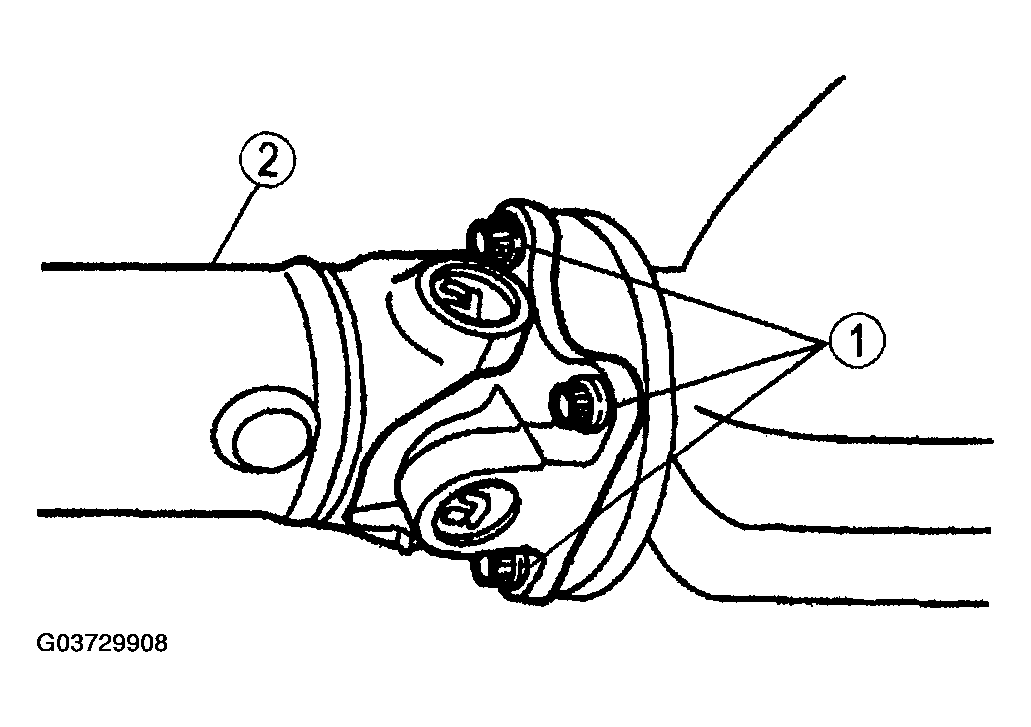

  Fig 2: Removing Propeller Shaft
  Courtesy of MAZDA MOTORS CORP.
  NOTE:
  - Install new bolts.
Install in reverse order of removal.

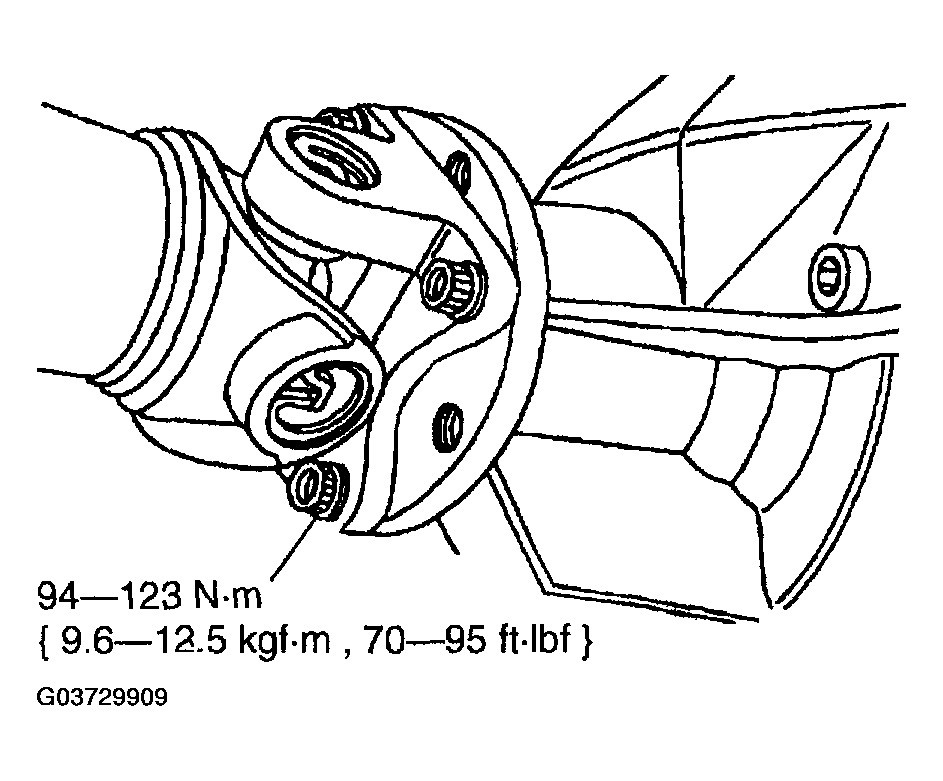

Fig 3: Installing Propeller Shaft Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
