Turn Signal Lamps Are Inoperative

PINPOINT TEST 1 - TURN SIGNAL LAMPS ARE INOPERATIVE

PINPOINT TEST 1		TURN SIGNAL LAMPS ARE INOPERATIVE
STEP	INSPECTION		ACTION
1	CHECK THE TURN SIGNALS Key ON. Place the multifunction switch in the LH or RH turn position. Are the turn signal lamps illuminated but not flashing?	Yes	Go to step 9.
1		No	Go to step 2.
2	CHECK THE STOPLAMPS Observe the rear lamps while pressing and releasing the brake pedal. Do the stoplamps operate correctly?	Yes	Go to step 3.
2		No	REFER to Stoplamps, See SYMPTOM TROUBLESHOOTING CHART - STOPLAMP. .
3	CHECK CIRCUIT LB FOR A SHORT TO GROUND Listen to the indicator flasher while placing the multifunction switch in the LH and RH turn positions. Is there a rapid clicking sound coming continuously from the indicator flasher?	Yes	Repair the circuit. Test the system for normal operation.
3		No	Go to step 4.

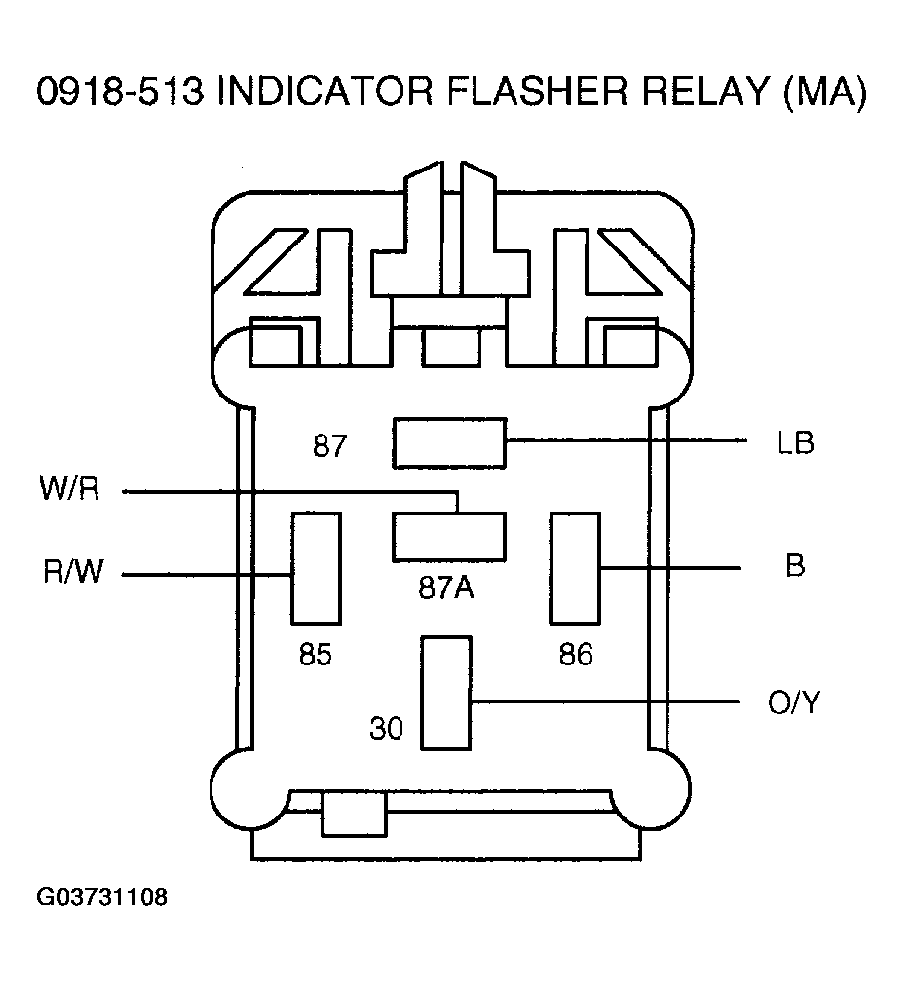

4	CHECK THE VOLTAGE TO THE INDICATOR FLASHER Key OFF. Disconnect: Indicator Flasher Relay 0918-513. Key ON. Measure the voltage between the indicator flasher relay 0918-513 pin 30, circuit O/Y, harness side and ground. Is the voltage greater than 10 volts?	Yes	Go to step 6.
4		No	Go to step 5.

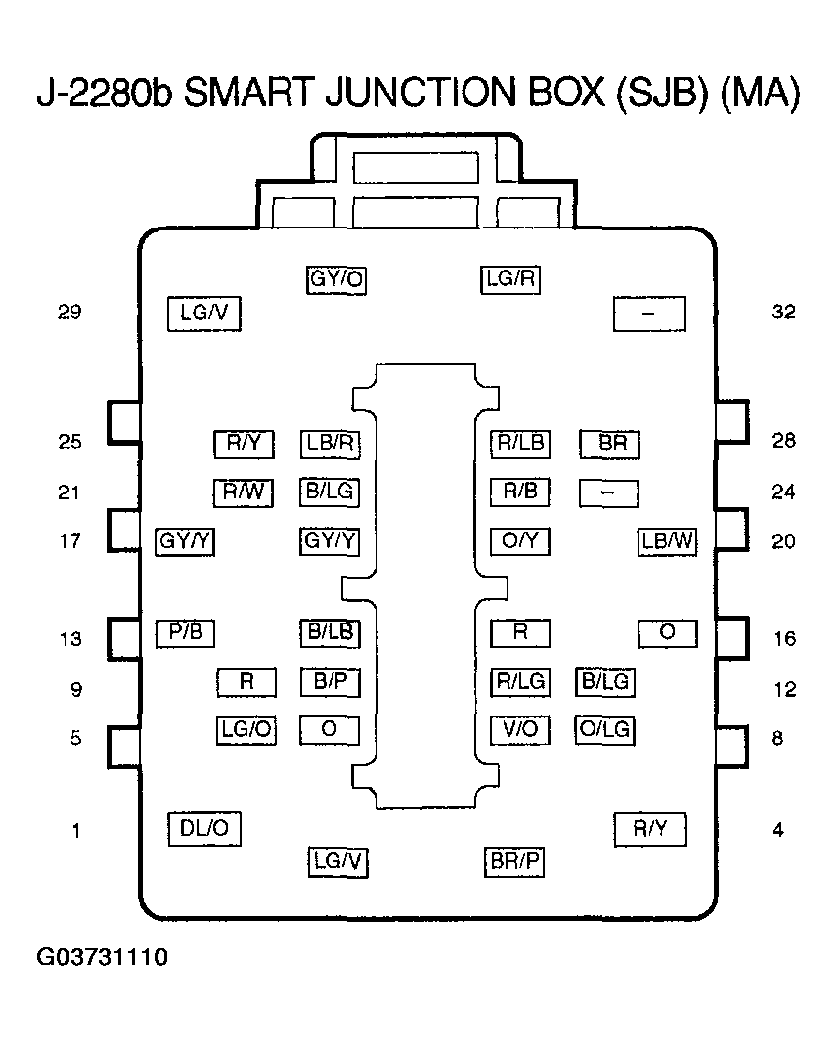

5	CHECK CIRCUIT O/Y FOR AN OPEN Key OFF. Disconnect: SJB J-2280b. Measure the resistance between the indicator flasher relay 0918-513 pin 30, circuit O/Y, harness side and the SJB J-2280b pin 19, circuit O/Y, harness side. Is the resistance less than 5 ohms?	Yes	Go to step 8.
5		No	Repair the circuit. Test the system for normal operation.
6	CHECK CIRCUIT LB FOR AN OPEN Key OFF. Disconnect: Multifunction Switch 0918-105. Measure the resistance between the multifunction switch 0918-105 pin 2, circuit LB, harness side and the indicator flasher relay 0918-513 pin 87, circuit LB, harness side. Is the resistance less than 5 ohms?	Yes	Go to step 7.
6		No	Repair the circuit. Test the system for normal operation.
7	CHECK THE MULTIFUNCTION SWITCH Carry out the multifunction switch component test. See the appropriate System Wiring Diagrams article. Is the multifunction switch OK?	Yes	Go to step 11.
7		No	Replace the multifunction switch. See MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION .

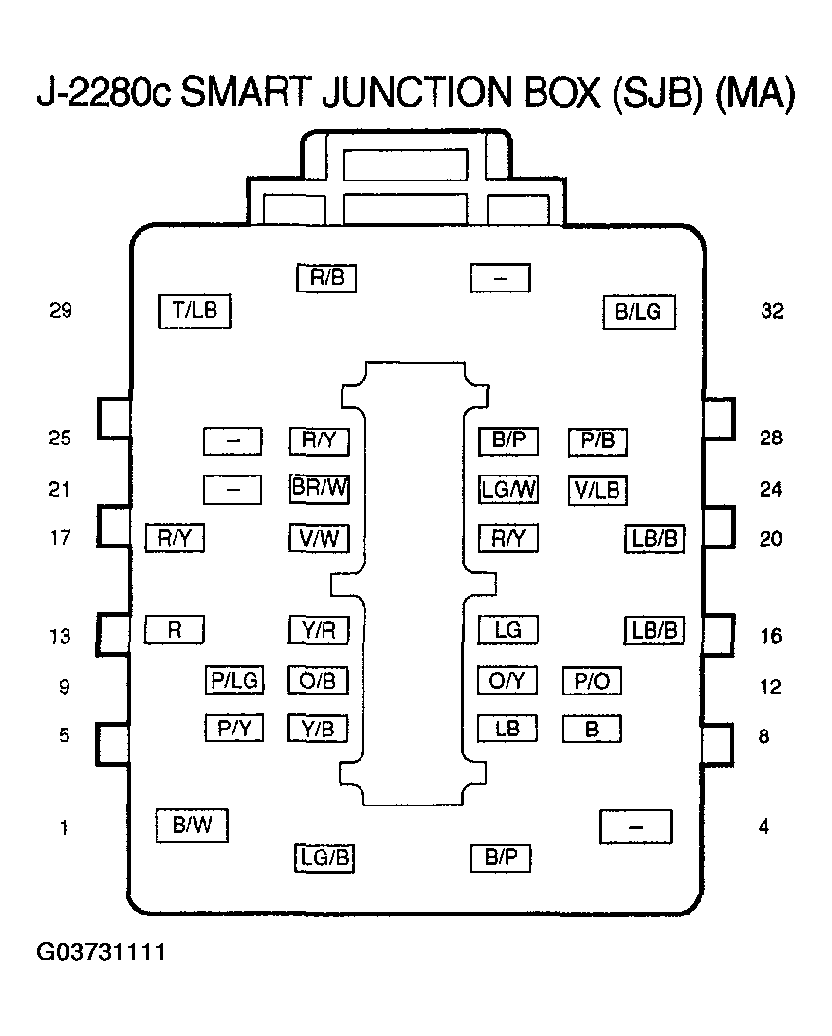

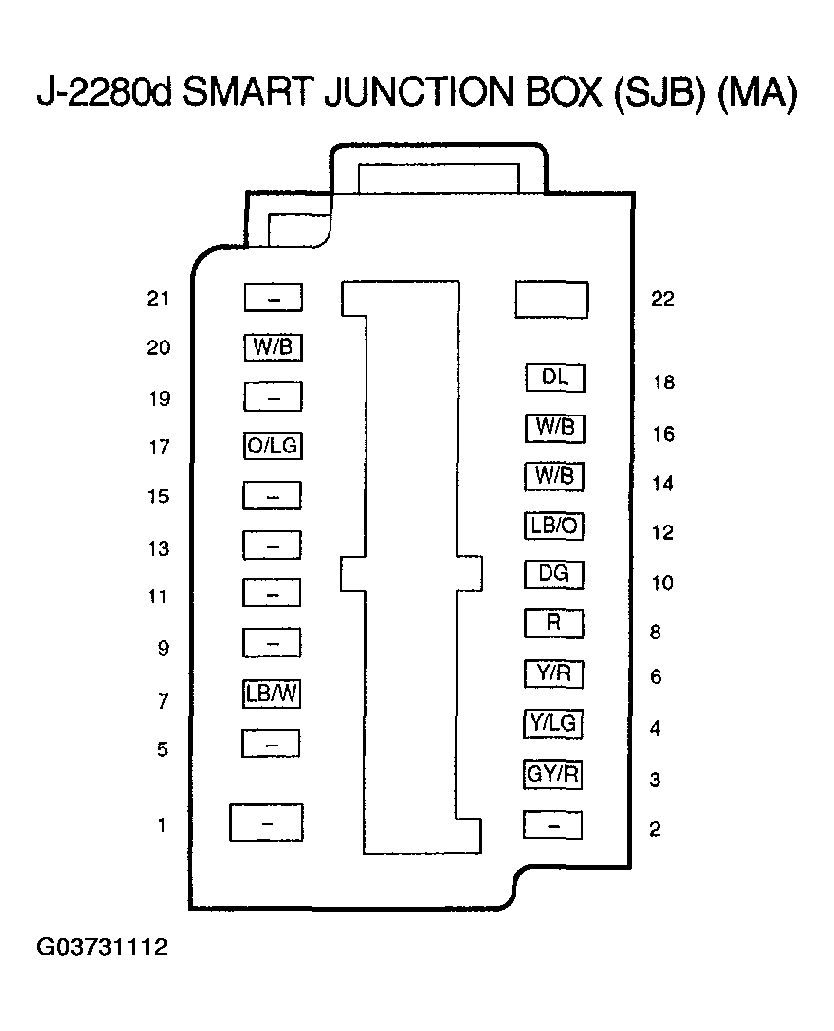

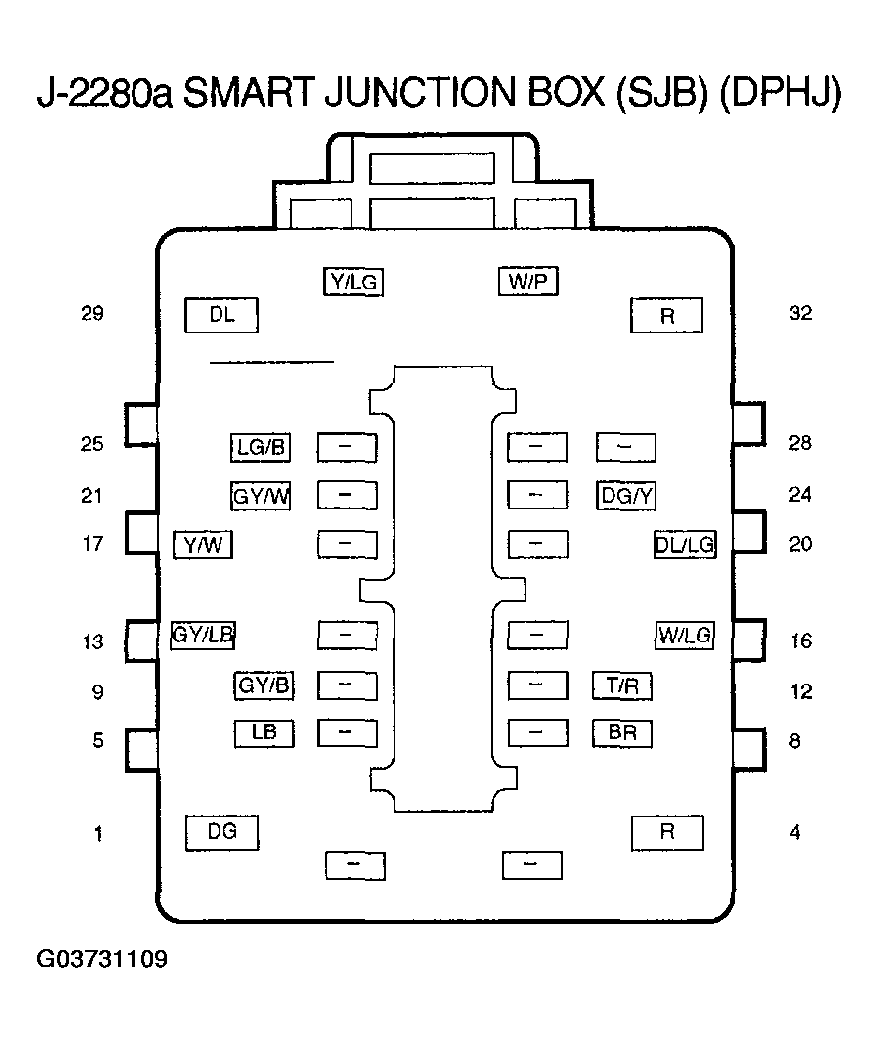

8	CHECK FOR CORRECT SMART JUNCTION BOX (SJB) OPERATION Key OFF. Disconnect all SJB connectors. Check for: corrosion pushed-out pins Connect all SJB connectors and make sure they seat correctly. Operate the system and verify the concern is still present. Is the concern still present?	Yes	Install a new SJB. Test the system for normal operation.
8		No	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
9	CHECK THE MULTIFUNCTION SWITCH FOR A SHORT TO POWER Carry out the multifunction switch component test. See the appropriate System Wiring Diagrams article. Is the multifunction switch OK?	Yes	Go to step 10.
9		No	Replace the multifunction switch. See MULTI-FUNCTION SWITCH REMOVAL/INSTALLATION . Test the system for normal operation.
10	CHECK CIRCUIT LB FOR A SHORT TO POWER Disconnect: Indicator Flasher Relay 0918-513. Measure the voltage between the indicator flasher relay 0918-513 pin 87, circuit LB, harness side and ground. Is any voltage present?	Yes	Repair the circuit. Test the system for normal operation.
10		No	Install a new indicator flasher. Test the system for normal operation.
11	CHECK CIRCUIT B FOR AN OPEN Measure the resistance between the indicator flasher relay 0918-513 pin 86, circuit B, harness side and ground. Is the resistance less than 5 ohms?	Yes	Install a new indicator flasher. Test the system for normal operation.
11		No	Repair the circuit. Test the system for normal operation.

See auxiliary relay box X-03 for relay location.
