Dimmer Switch Removal/Installation

Remove the instrument cluster finish panel. See INSTRUMENT PANEL REMOVAL/INSTALLATION .
Remove in the order shown in Fig 1.

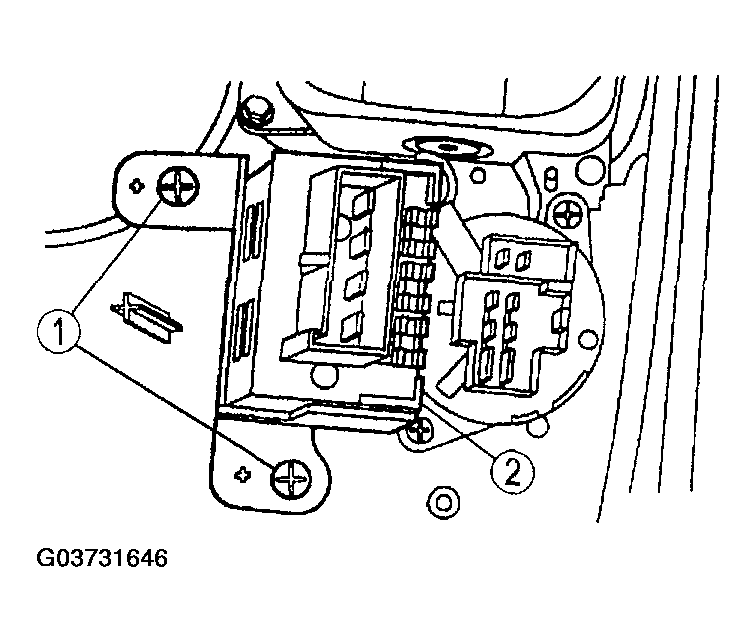

Fig 1: Removing Dimmer Switch
Courtesy of MAZDA MOTORS CORP.
1. Screws
2. Dimmer switch
Install in reverse order of removal.
Tightening torque

2 - 3 N.m { 20 - 31 kgf.cm, 18 - 27 in.lbf}
