Illumination Inoperative - Instrument Cluster

PINPOINT TEST 2 - INSTRUMENT CLUSTER

PINPOINT TEST 2		ILLUMINATION IS INOPERATIVE - INSTRUMENT CLUSTER
STEP	INSPECTION		ACTION

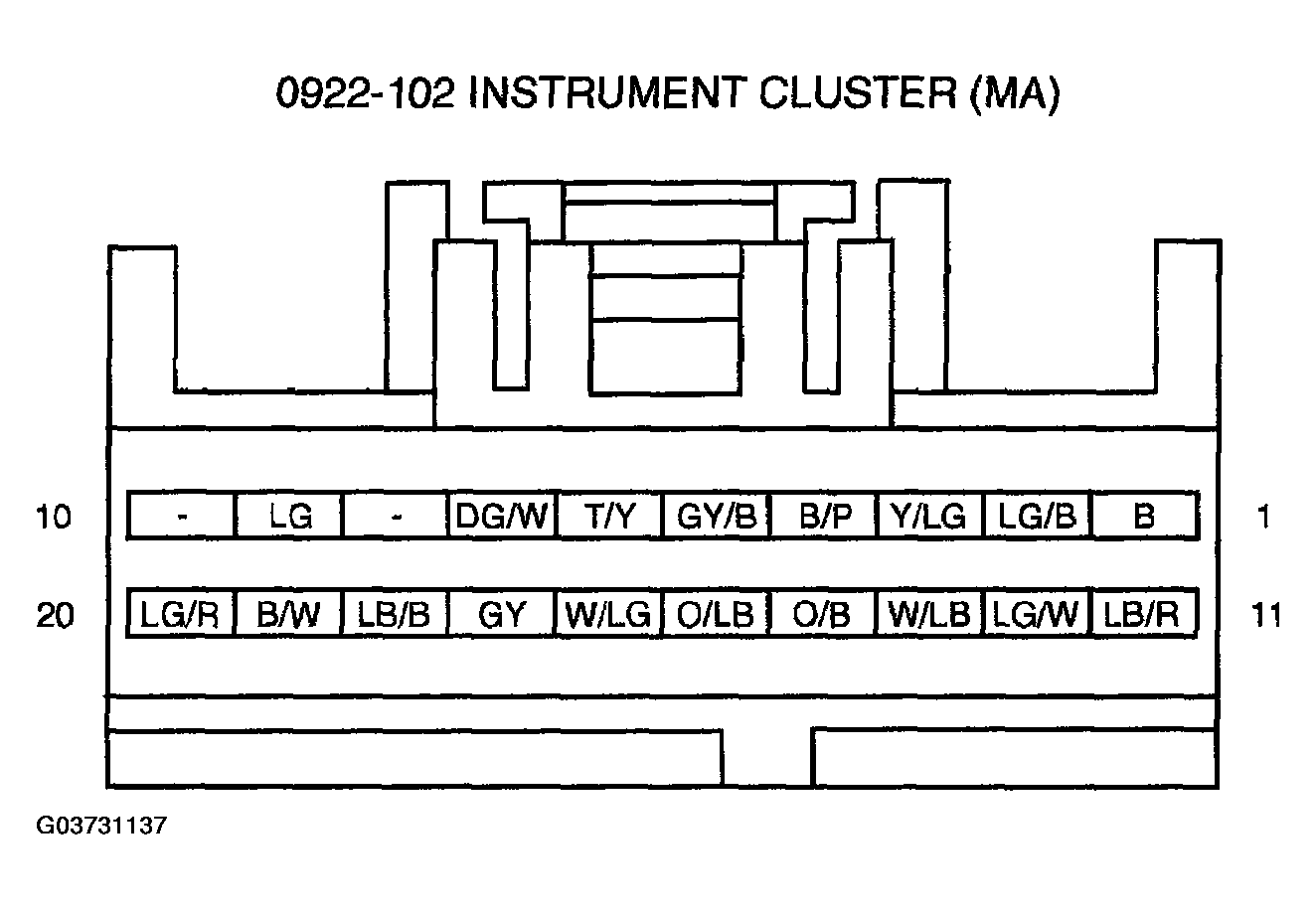

1	CHECK FOR POWER TO THE INSTRUMENT CLUSTER Disconnect Instrument Cluster 0922-102. Place the headlamp switch in the PARK position. Rotate the instrument panel dimmer switch to the full illumination position. Measure the voltage between the instrument cluster 0922-102 pin 11, circuit LB/R, harness side and ground. Is the voltage greater than 10 volts?	Yes	Go to step 2.
1		No	Repair the circuit. Test the system for normal operation.
2	CHECK THE INSTRUMENT CLUSTER GROUND Measure the resistance between the instrument cluster 0922-102 pin 1, circuit B, harness side and ground. Is the resistance less than 5 ohms?	Yes	Go to step 3.
2		No	Repair the circuit. Test the system for normal operation.
3	CHECK FOR CORRECT INSTRUMENT CLUSTER OPERATION Disconnect all instrument cluster connectors. Check for: corrosion pushed-out pins Connect all instrument cluster connectors and make sure they seat correctly. Operate the system and verify the concern is still present. Is the concern still present?	Yes	Install a new instrument cluster. See INSTRUMENT CLUSTER ILLUMINATION BULBS REMOVAL/INSTALLATION . Test the system for normal operation.
3		No	The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. Clear the DTCs. Test the system for normal operation.
