Illumination Inoperative - Audio System
PINPOINT TEST 4 - ILLUMINATION INOPERATIVE - AUDIO SYSTEM
| PINPOINT TEST 4 | ILLUMINATION IS INOPERATIVE - AUDIO SYSTEM | ||
|---|---|---|---|
| STEP | INSPECTION | ACTION | |

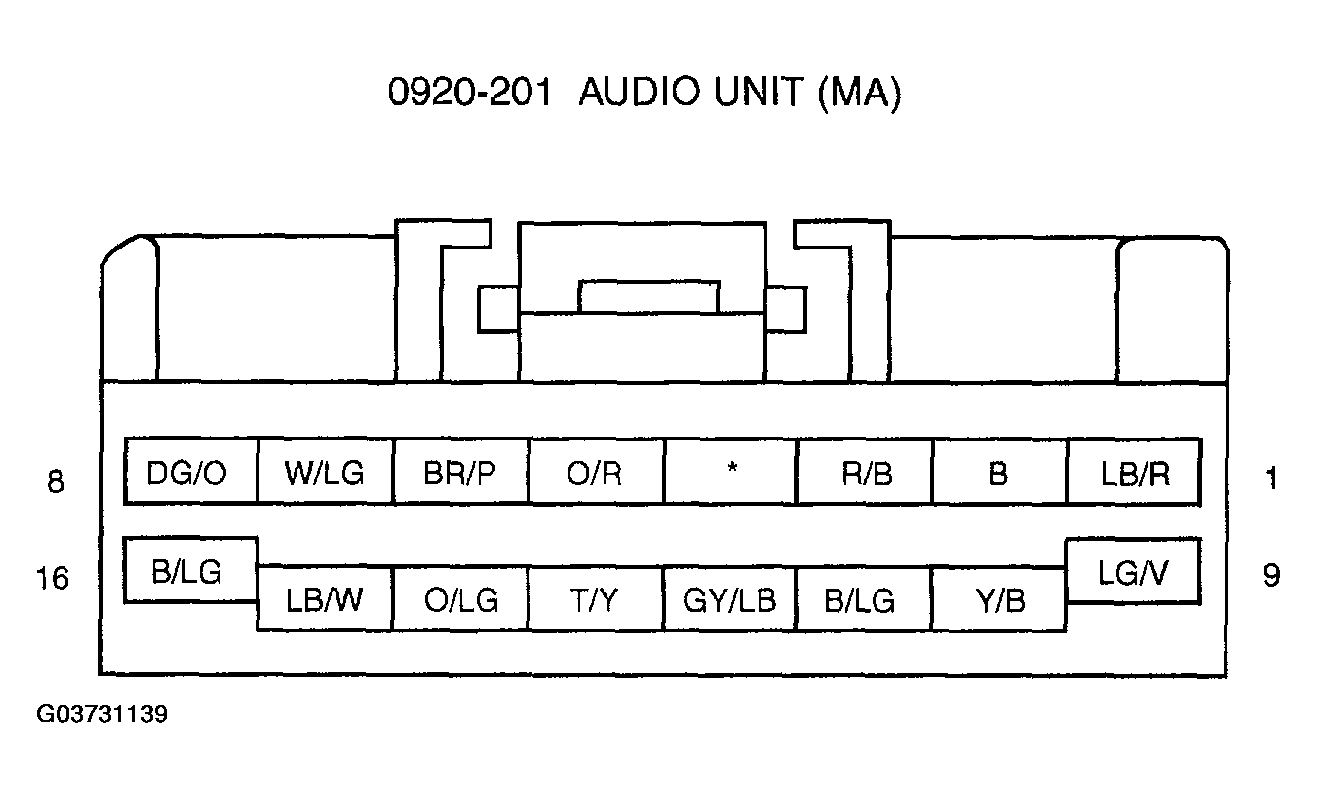

| 1 | CHECK FOR POWER TO THE AUDIO UNIT
|
Yes | Go to step 2. |
| No | Repair the circuit. Test the system for normal operation. | ||
| 2 | CHECK FOR GROUND AT THE AUDIO UNIT
|
Yes | REMOVE the audio unit and SEND it to an authorized audio system repair facility. After the repair, Test the system for normal operation. |
| No | Repair the circuit. Test the system for normal operation. | ||
