Home >> Mazda >> 2005 >> 6 L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Locations >> Door Lock-Link Switch LF

Door Lock-Link Switch LF

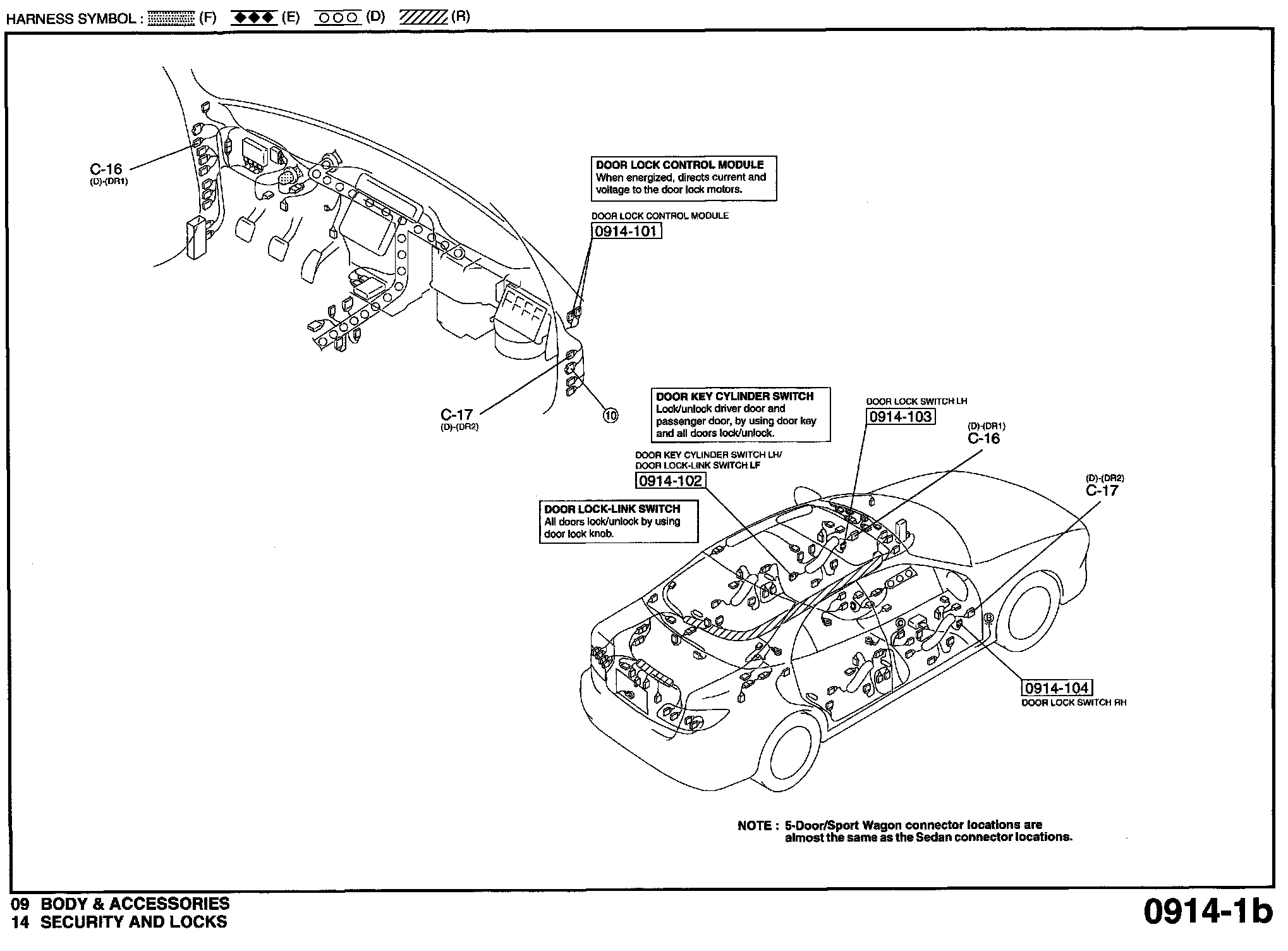

Routing View 0914-1b:
