Home >> Mazda >> 2005 >> 6 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0918-6 (Back-Up Light)

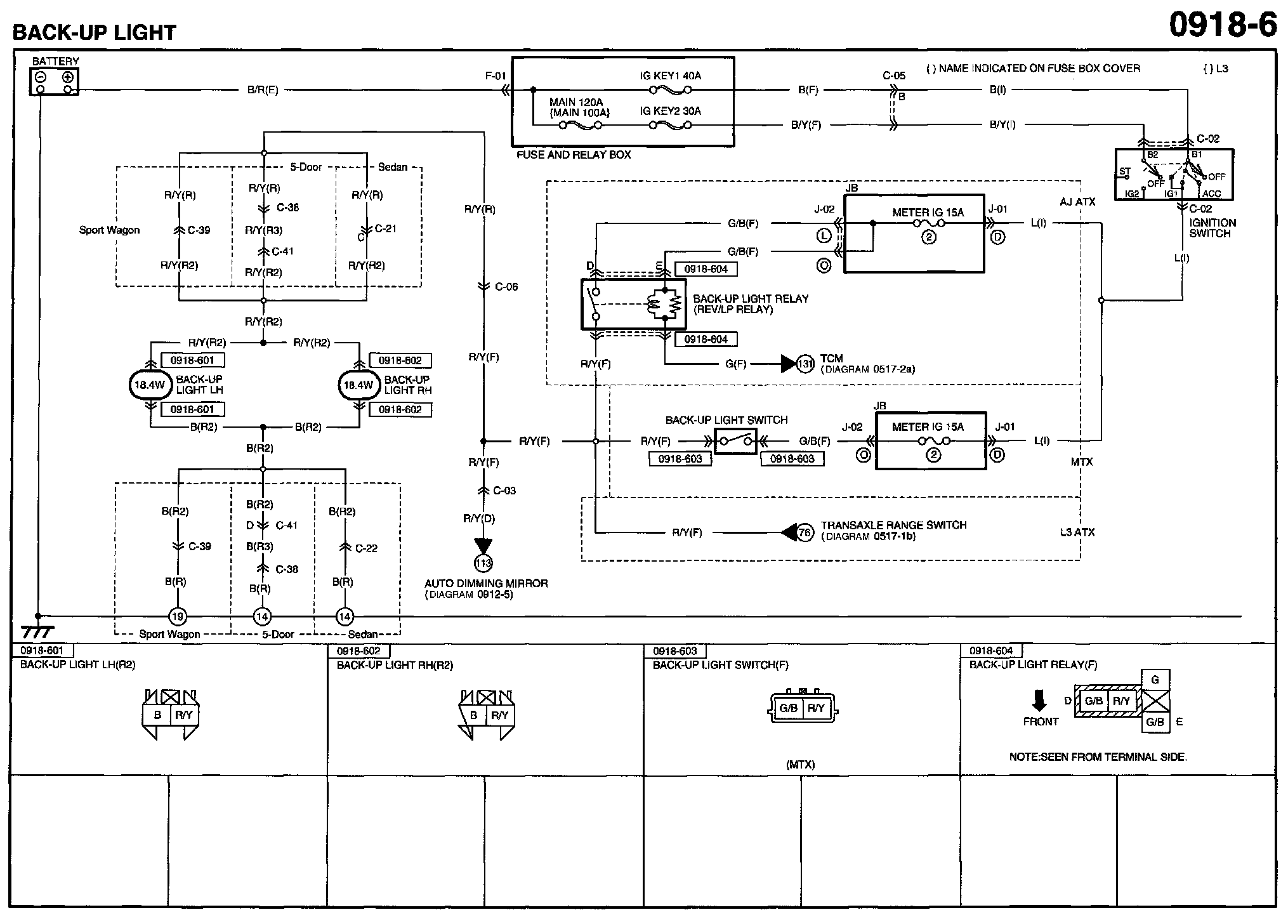

Diagram 0918-6 (Back-Up Light)

Diagram 0918-6:
