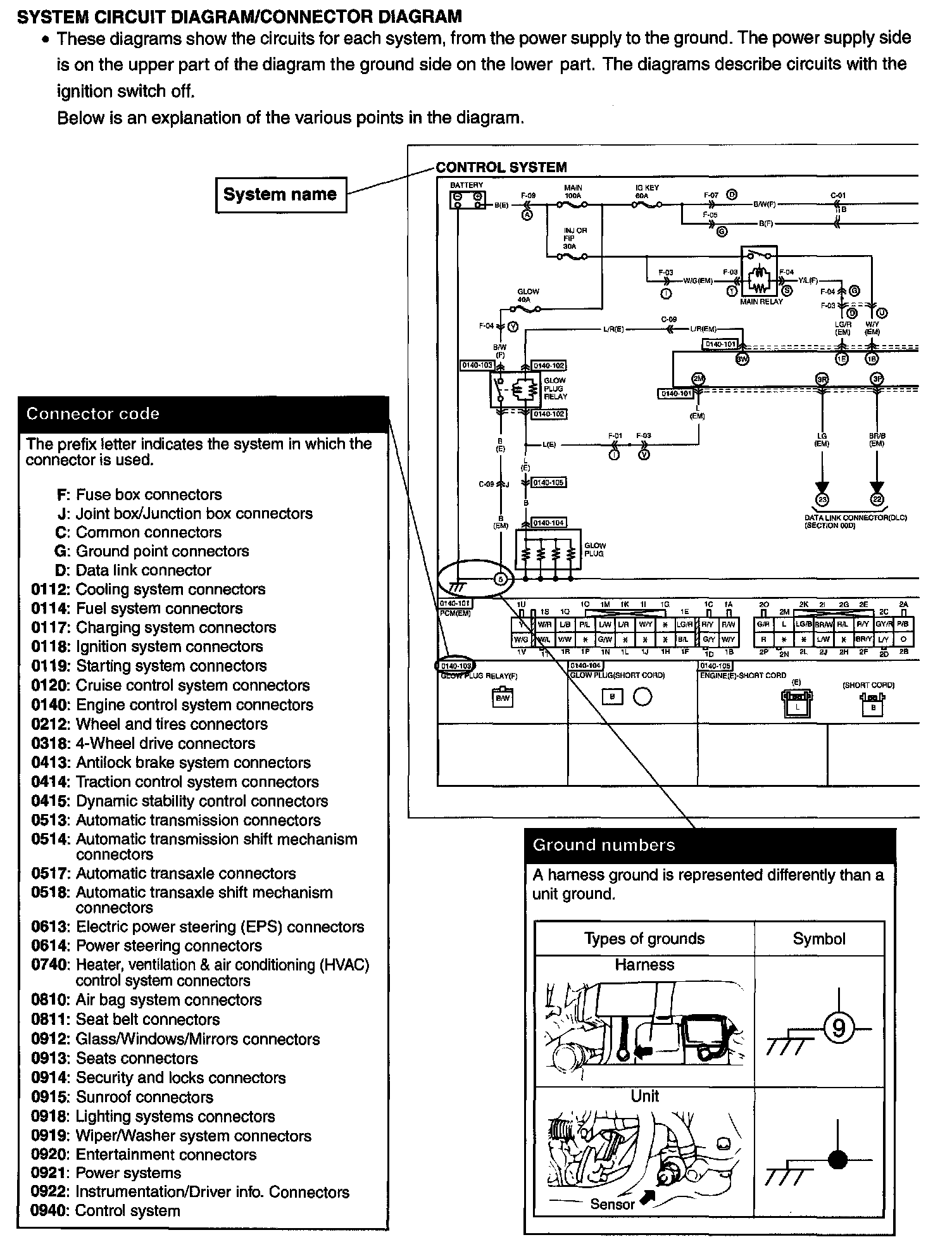

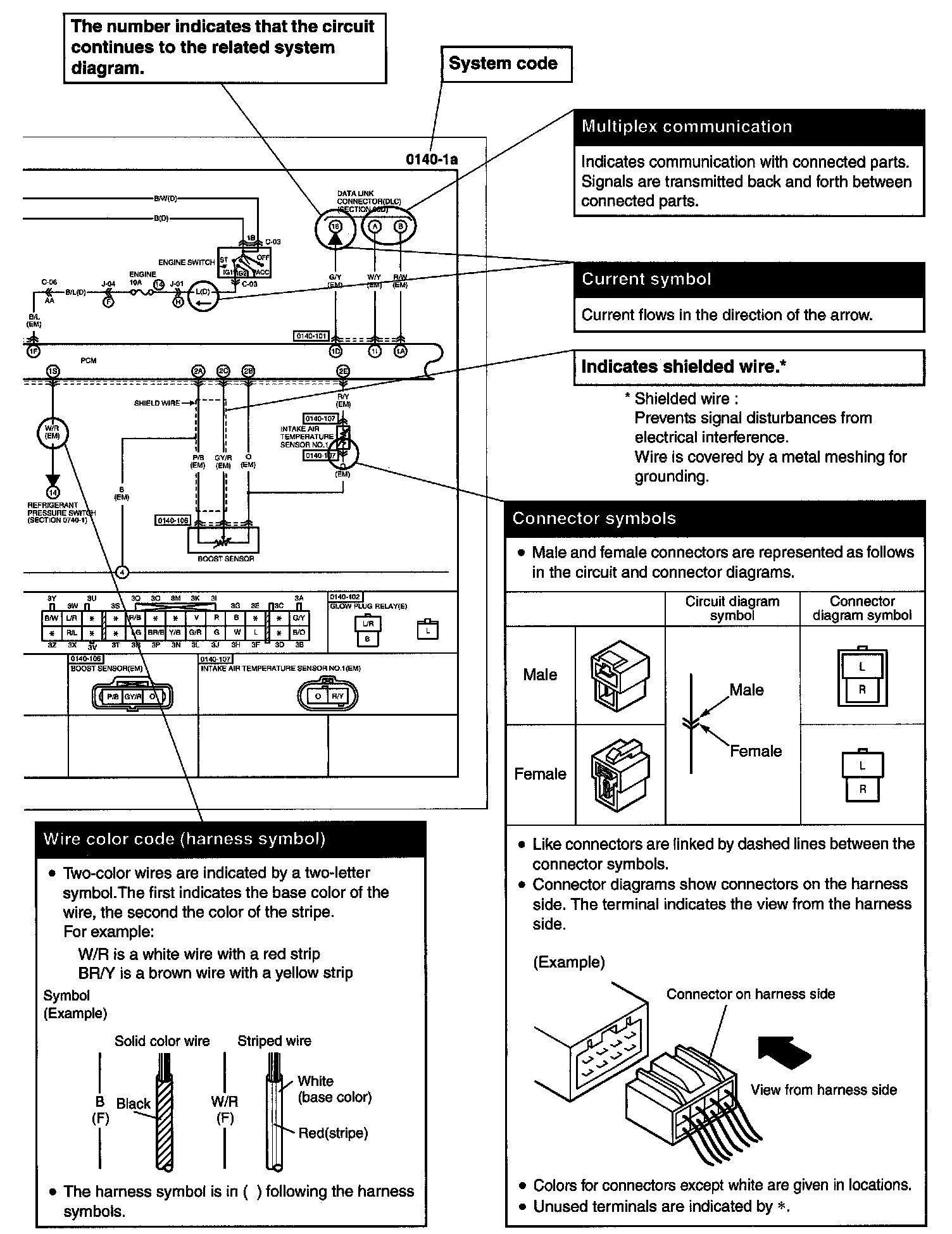

Home >> Mazda >> 2005 >> 3 L4-2.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Diagrams >> Diagram Information and Instructions >> How to Read System Circuit Diagrams
