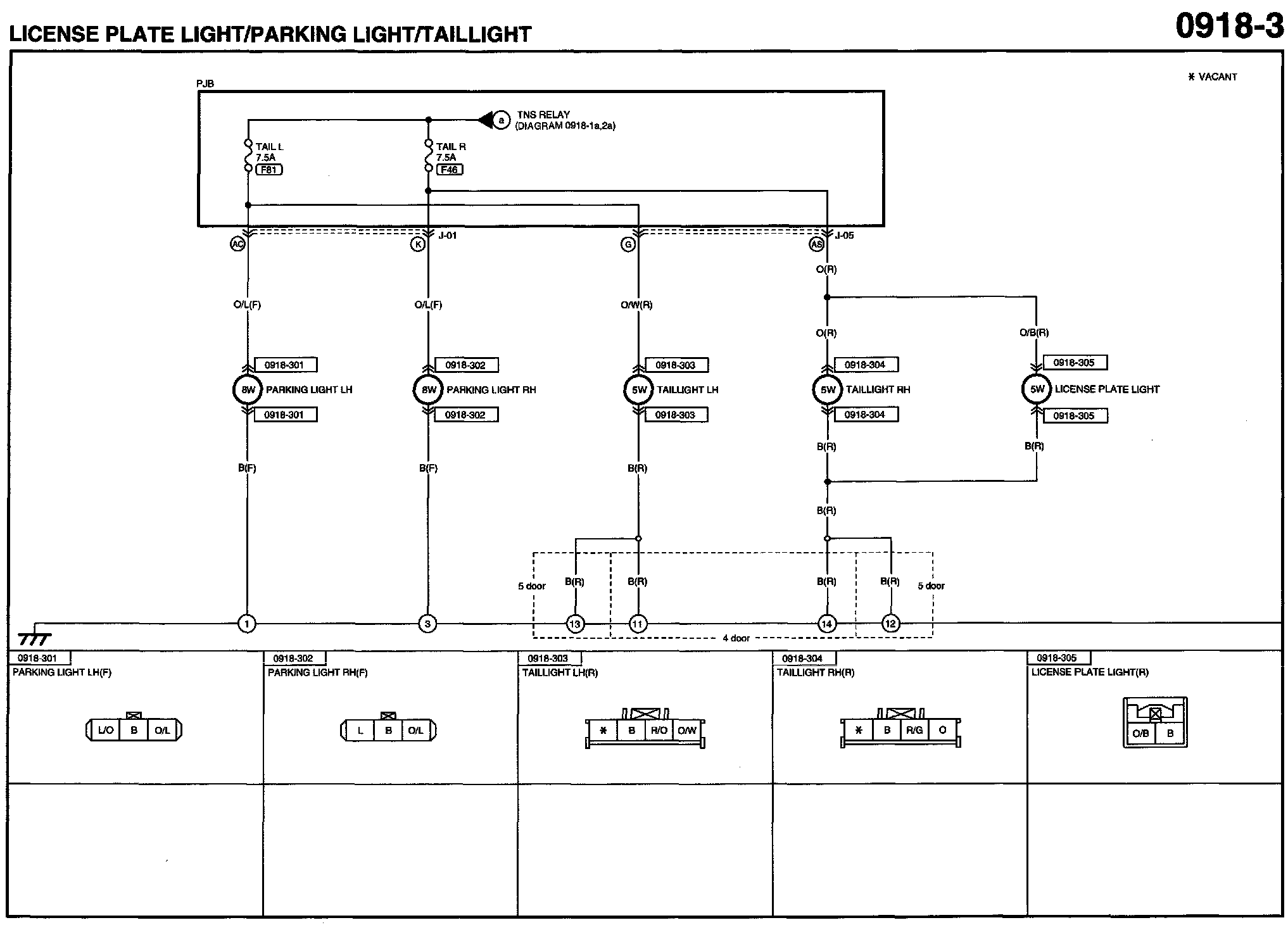

Diagram 0918-3 (License Plate Light/Parking Light-Taillight)
Diagram 0918-3 (License Plate Light/Parking Light-Taillight)
Diagram 0918-3:
