Pinpoint Test 3: Incorrect Fuel Gauge Indication

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

Fig 1: Pinpoint Test 3: Incorrect Fuel Gauge Indication - Test Procedure (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Pinpoint Test 3: Incorrect Fuel Gauge Indication - Test Procedure (Steps 3-5)

Courtesy of MAZDA MOTORS CORP.

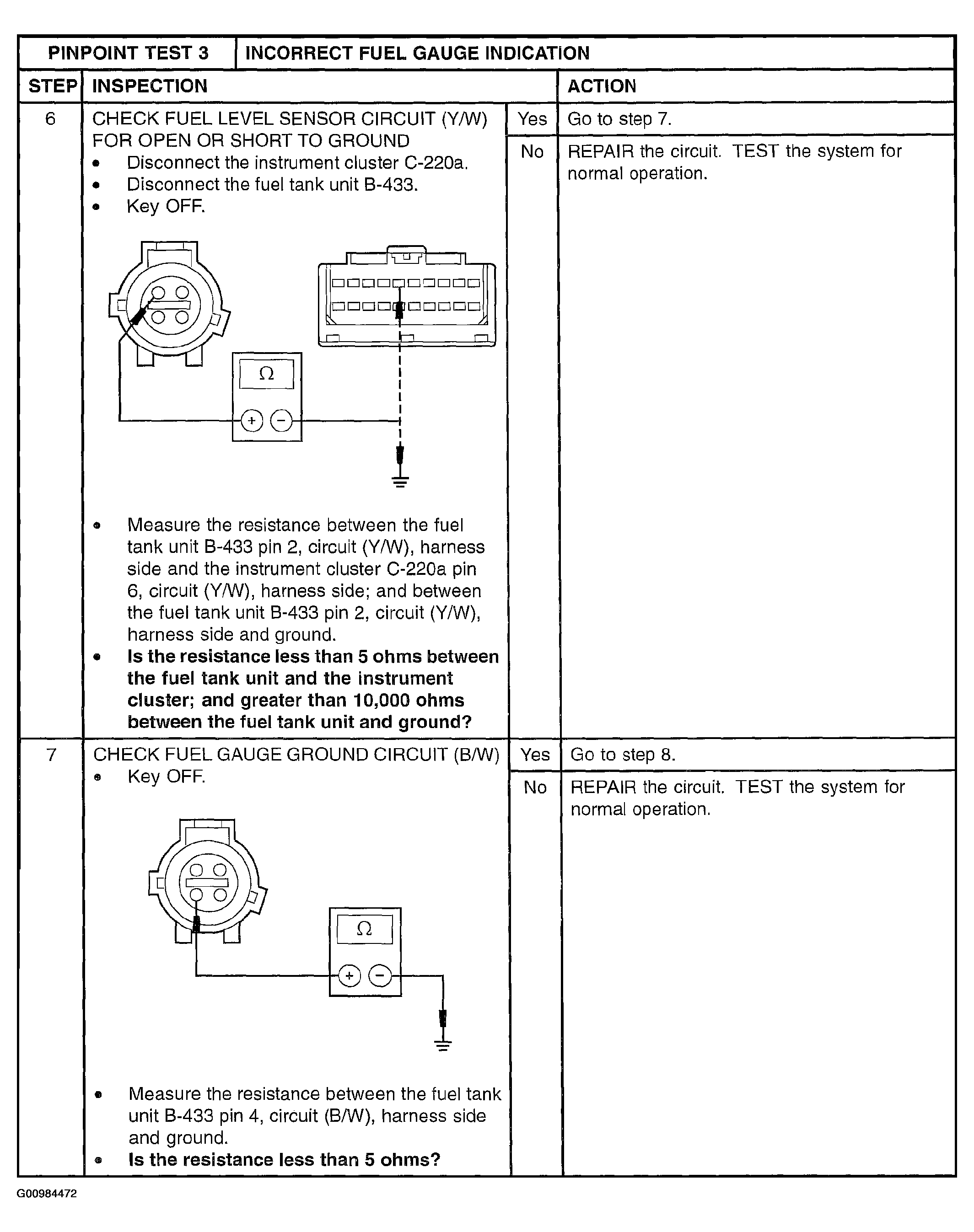

Fig 3: Pinpoint Test 3: Incorrect Fuel Gauge Indication - Test Procedure (Steps 6 & 7)

Courtesy of MAZDA MOTORS CORP.

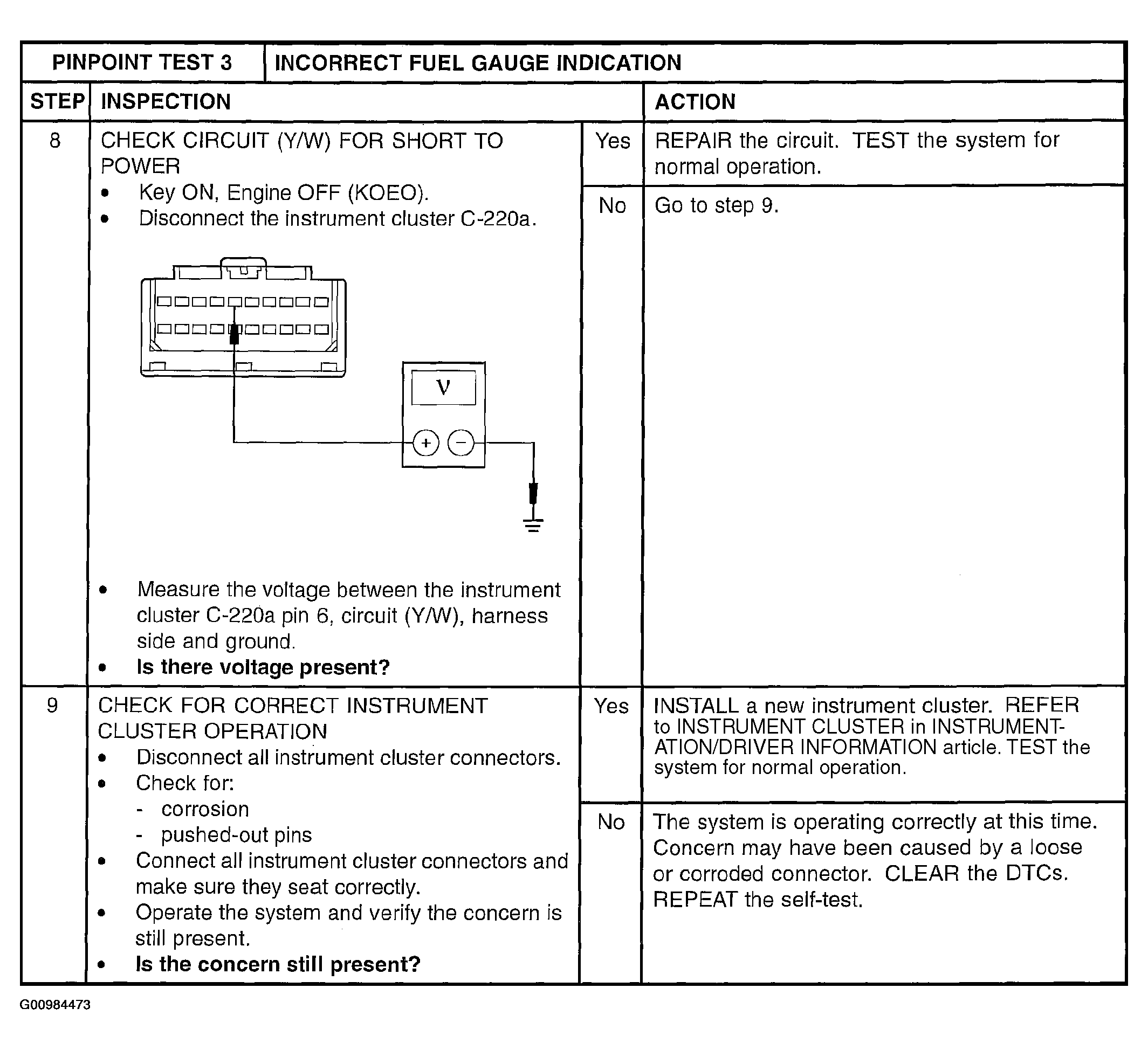

Fig 4: Pinpoint Test 3: Incorrect Fuel Gauge Indication - Test Procedure (Step 8 & 9)

Courtesy of MAZDA MOTORS CORP.
