Pinpoint Test 12: The Low Oil Pressure Indicator Is Inoperative/Always On

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

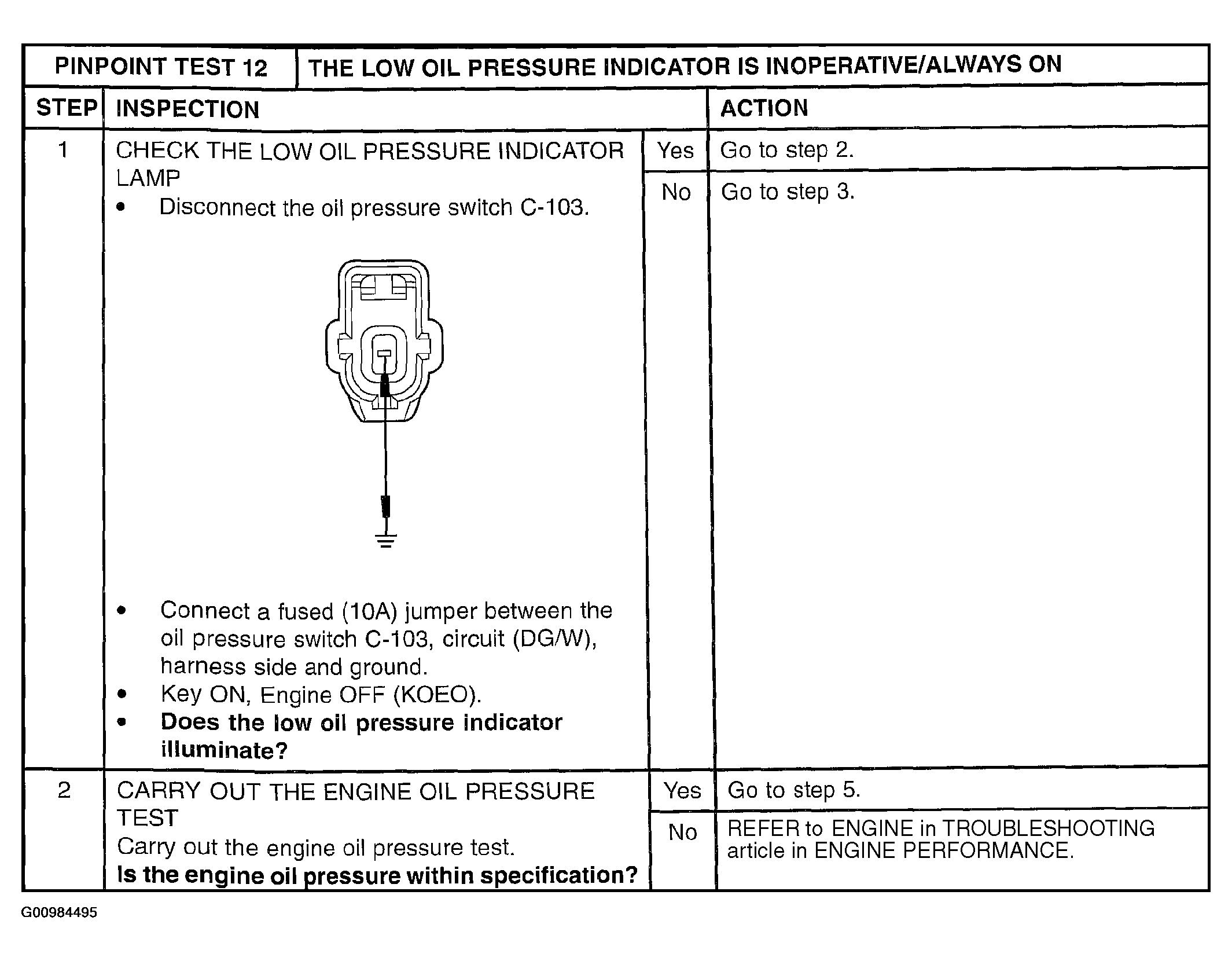

Fig 1: Pinpoint Test 12: The Low Oil Pressure Indicator Is Inoperative/Always On - Test Procedure (Step 1 & 2)

Courtesy of MAZDA MOTORS CORP.

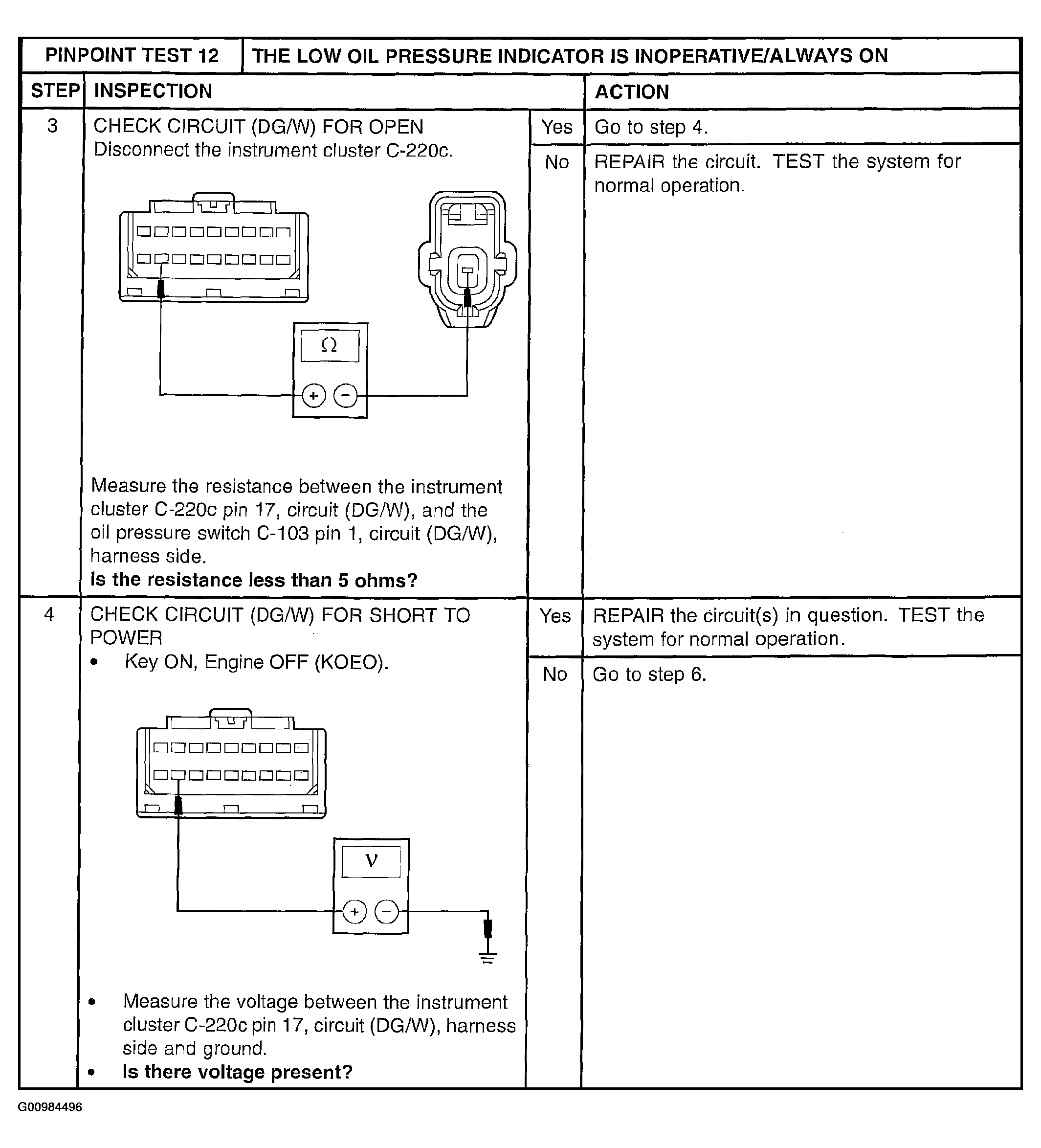

Fig 2: Pinpoint Test 12: The Low Oil Pressure Indicator Is Inoperative/Always On - Test Procedure (Step 3 & 4)

Courtesy of MAZDA MOTORS CORP.

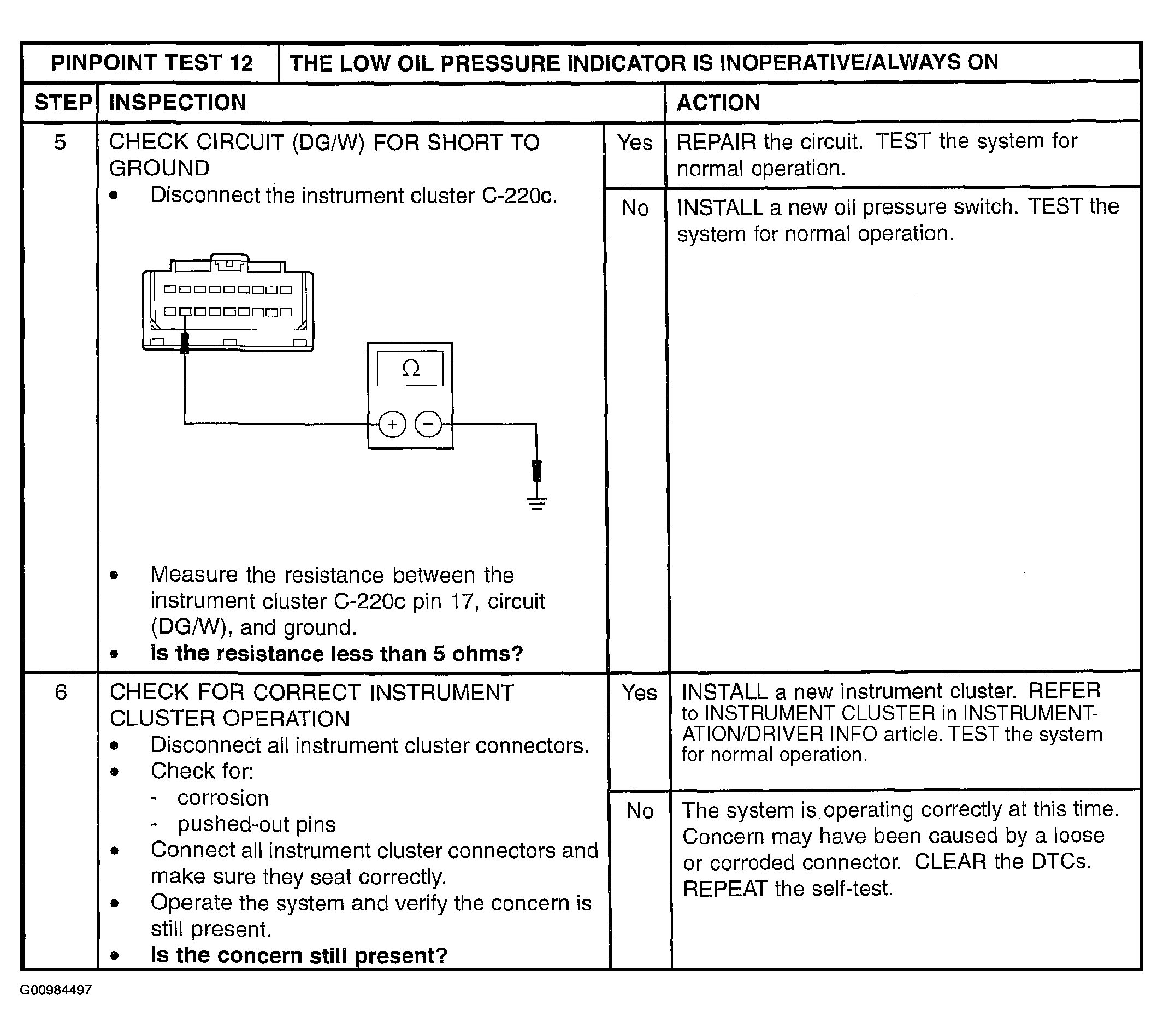

Fig 3: Pinpoint Test 12: The Low Oil Pressure Indicator Is Inoperative/Always On - Test Procedure (Steps 5 & 6)

Courtesy of MAZDA MOTORS CORP.
