DTC P0605, P0606, P0614, P1562, P1600, P1601, P1602, P1603, P1604, P1605, P1608, P1609, P1621, P1622, P1623, P1633, P1639: Pcm Malfunction

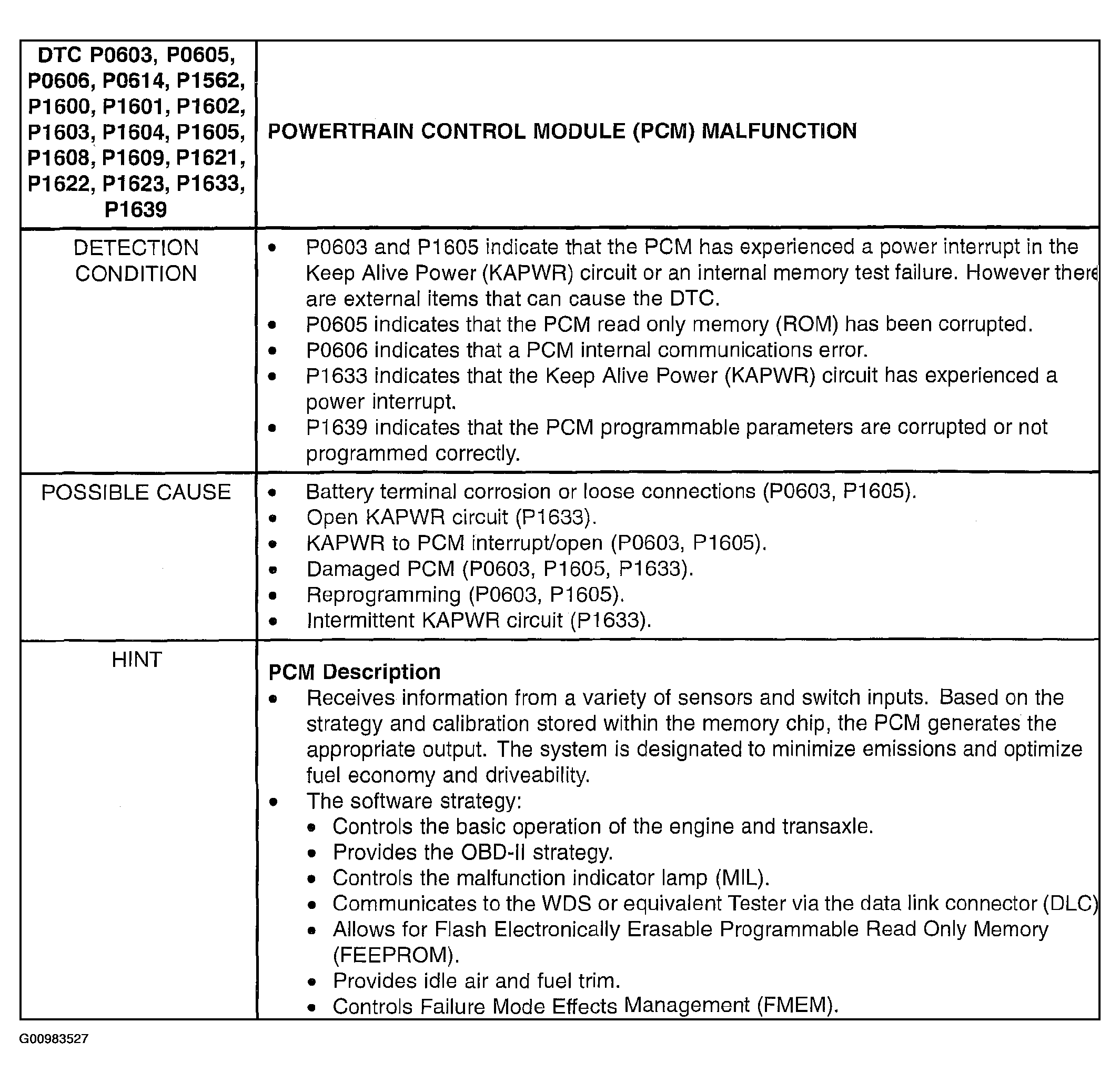

Fig 1: DTC P0605, P0606, P0614, P1562, P1600, P1601, P1602, P1603, P1604, P1605, P1608, P1609, P1621, P1622, P1623, P1633, P1639 Powertrain Control Module (PCM) Malfunction: Detection Condition, Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

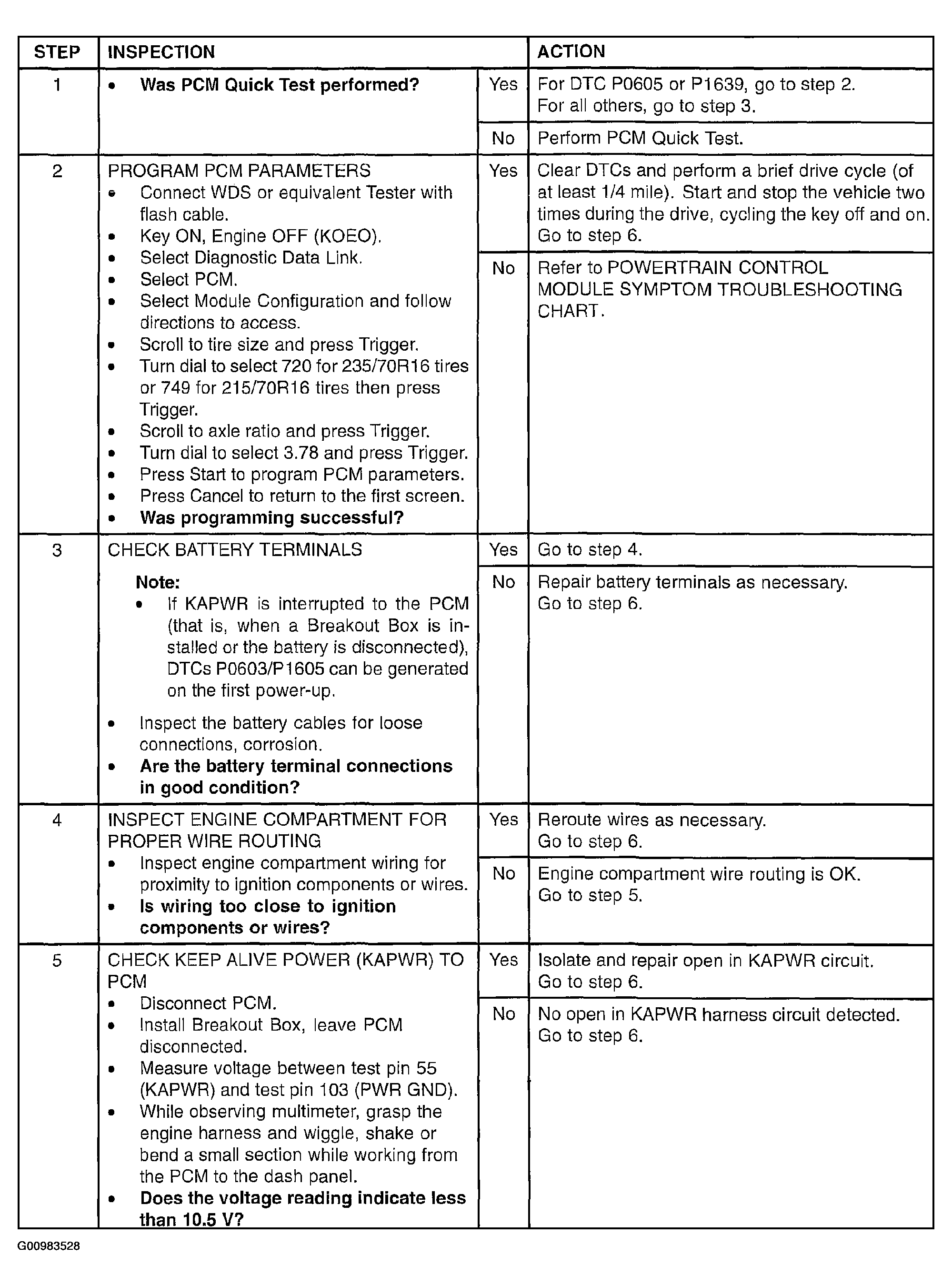

Fig 2: DTC P0605, P0606, P0614, P1562, P1600, P1601, P1602, P1603, P1604, P1605, P1608, P1609, P1621, P1622, P1623, P1633, P1639 Powertrain Control Module (PCM) Malfunction: Inspection (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

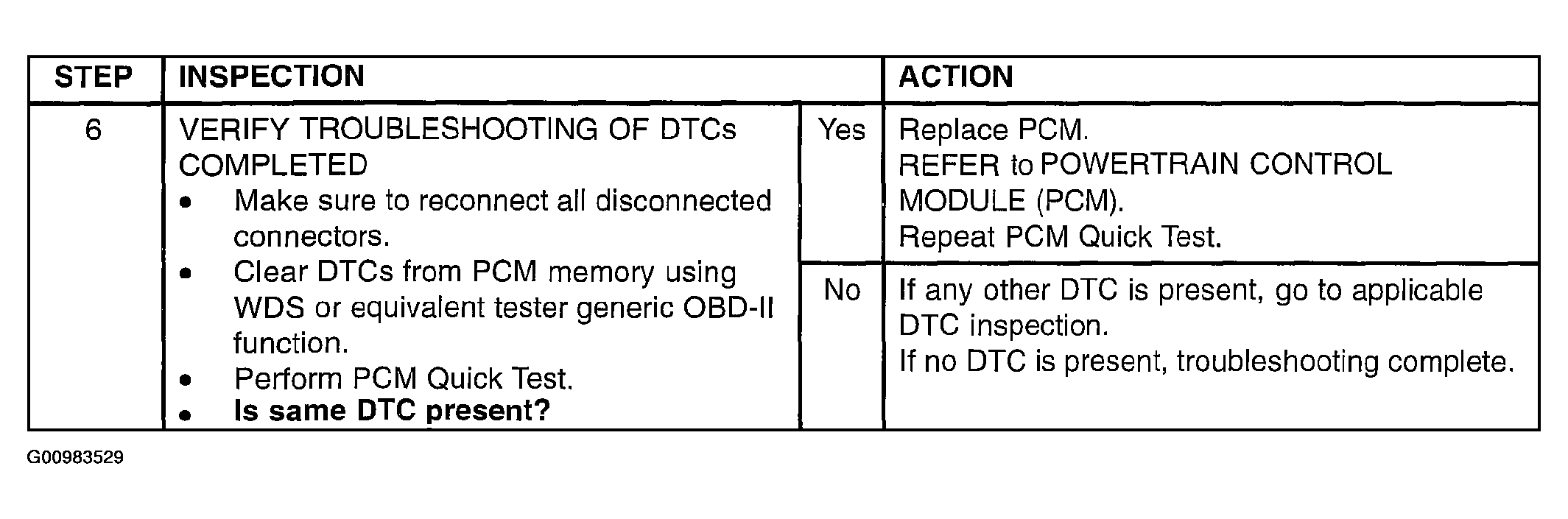

Fig 3: DTC P0605, P0606, P0614, P1562, P1600, P1601, P1602, P1603, P1604, P1605, P1608, P1609, P1621, P1622, P1623, P1633, P1639 Powertrain Control Module (PCM) Malfunction: Inspection (Step 6)

Courtesy of MAZDA MOTORS CORP.
