DTC P0037, P0043, P0136, P0140, P0142, P0146, P0147, P0156, P0157, P0158, P0160, P1133, P1134, P1137, P1138, P1143, P1144, P1157, P1158, P2270, P02271, P2272, P2273: Ho2S

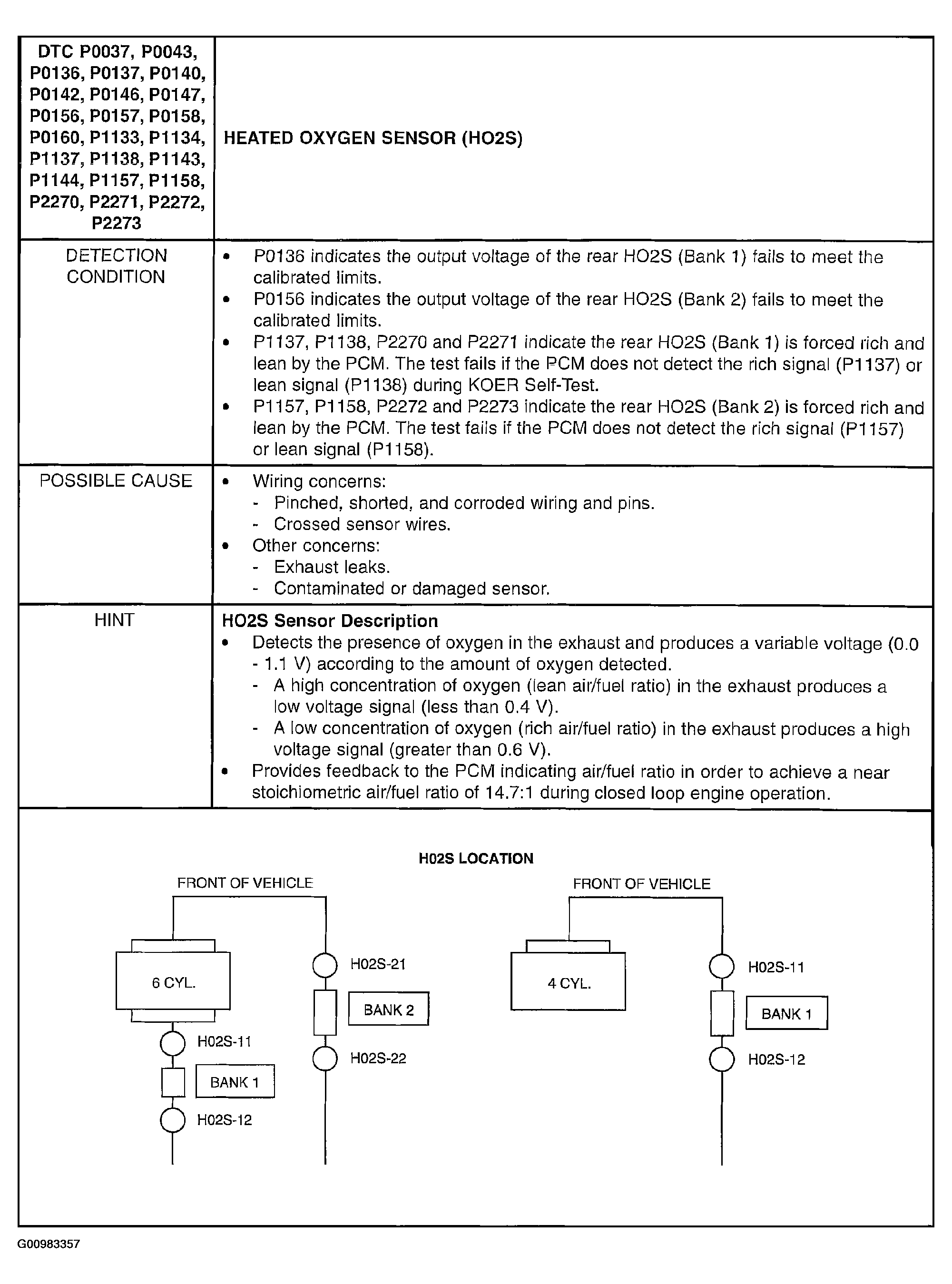

Fig 1: DTC P0037, P0043, P0136, P0140, P0142, P0146, P0147, P0156-P0158, P0160, P1133, P1134, P1137, P1138, P1143, P1144, P1157, P1158, P2270-P2273 HO2S: Detection Condition, Possible Cause, Hint & HO2S Locations

Courtesy of MAZDA MOTORS CORP.

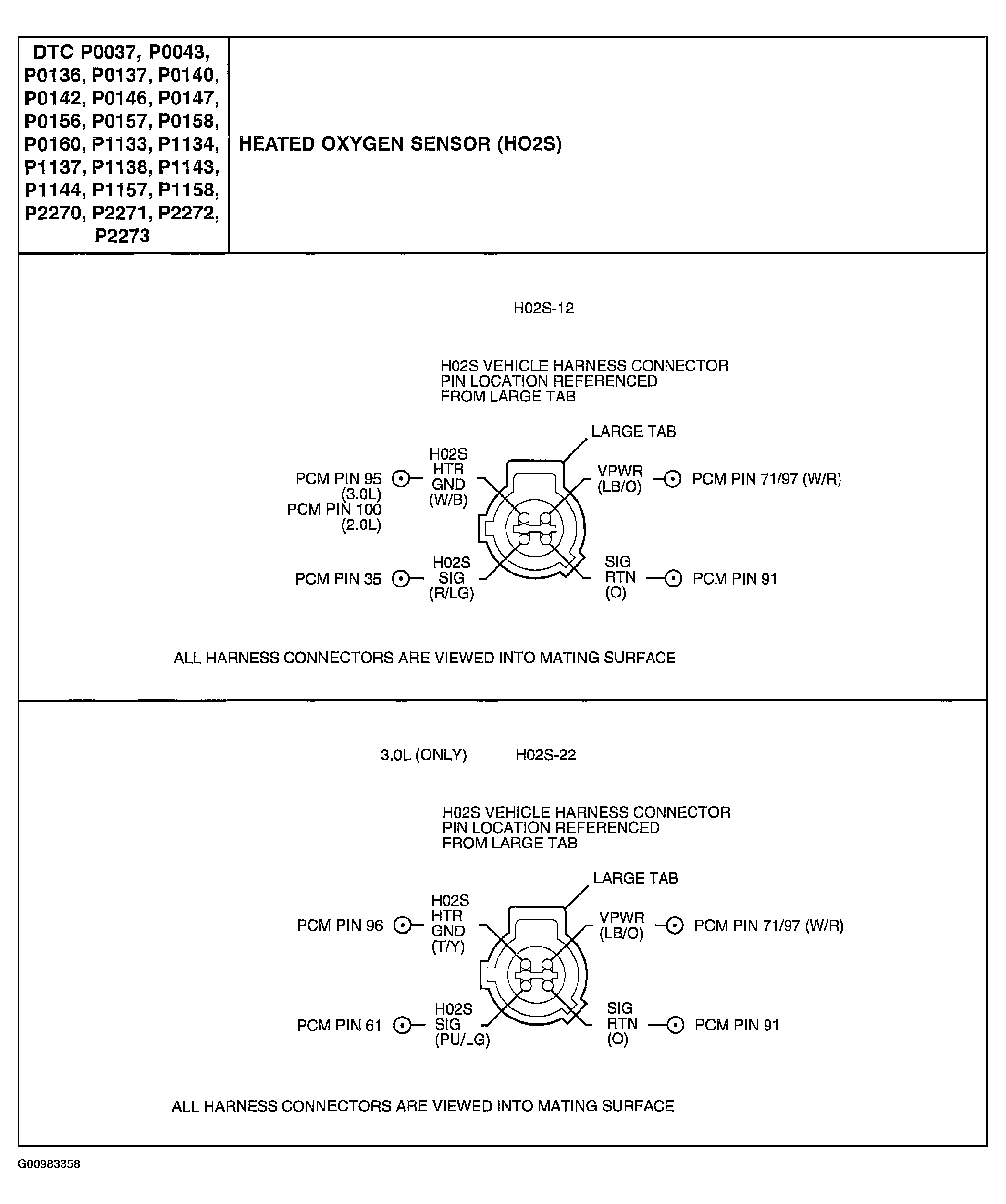

Fig 2: DTC P0037, P0043, P0136, P0140, P0142, P0146, P0147, P0156-P0158, P0160, P1133, P1134, P1137, P1138, P1143, P1144, P1157, P1158, P2270-P2273 HO2S: HO2S Harness Connector Pin Locations

Courtesy of MAZDA MOTORS CORP.

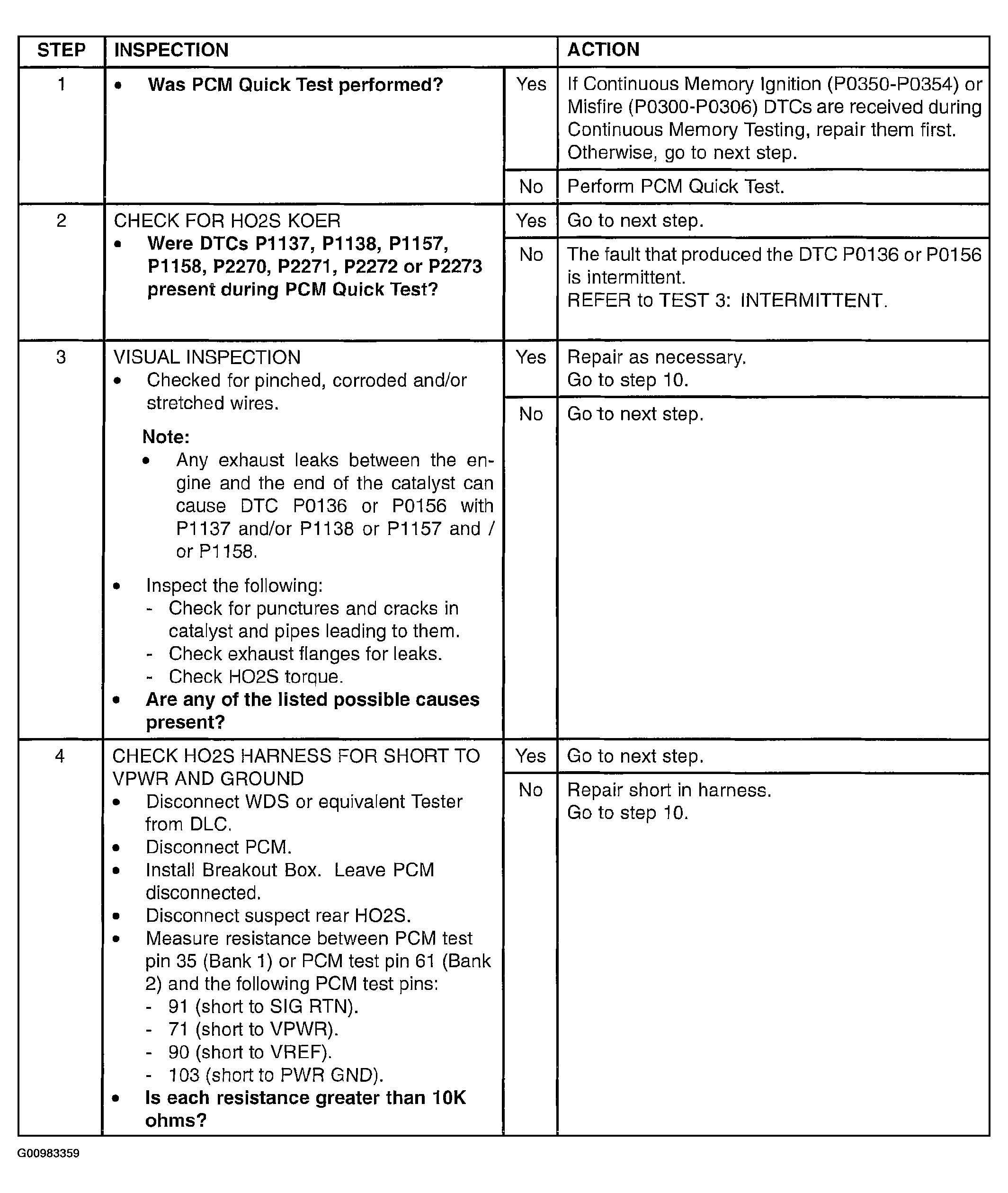

Fig 3: DTC P0037, P0043, P0136, P0140, P0142, P0146, P0147, P0156-P0158, P0160, P1133, P1134, P1137, P1138, P1143, P1144, P1157, P1158, P2270-P2273 HO2S: Inspection (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

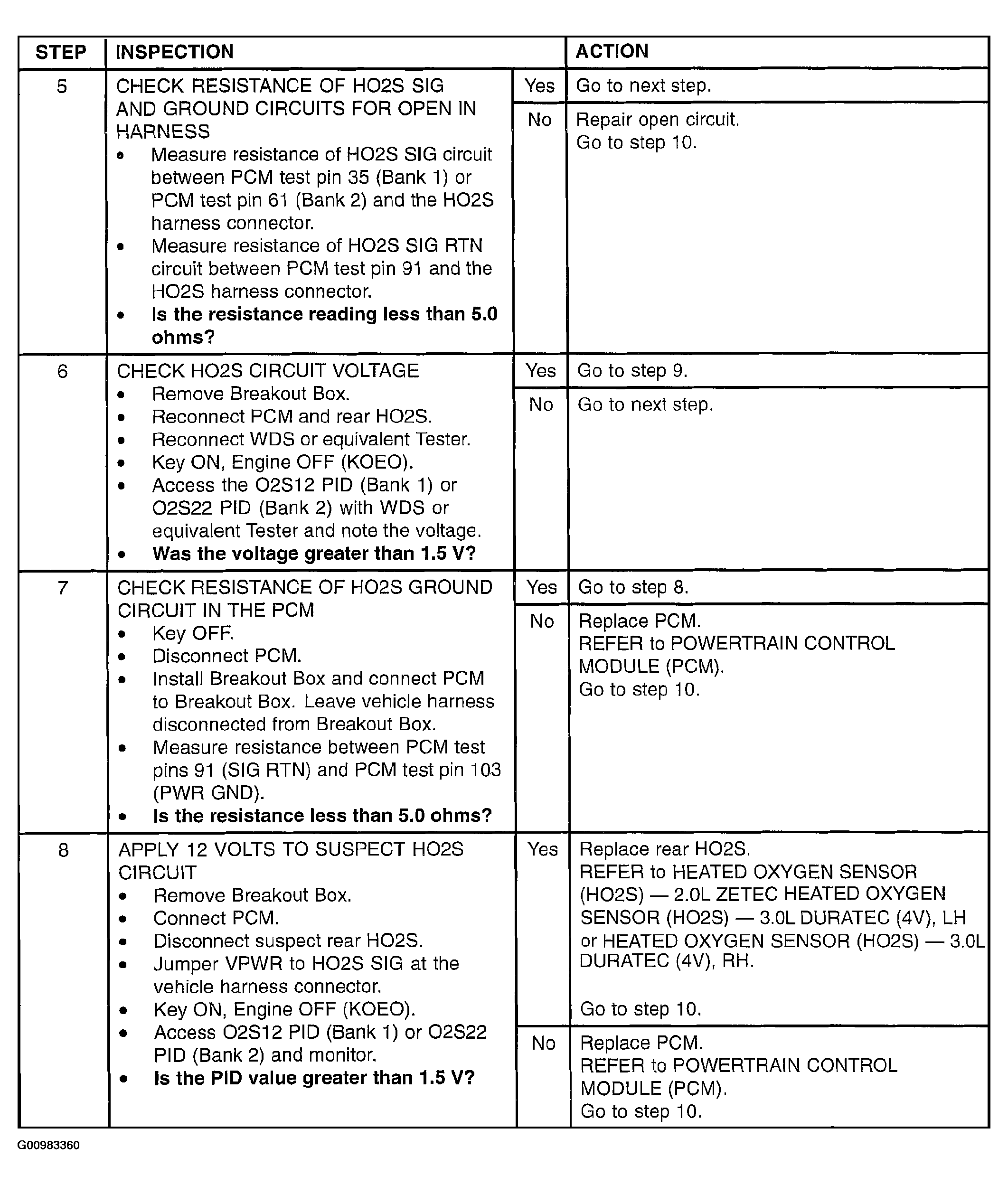

Fig 4: DTC P0037, P0043, P0136, P0140, P0142, P0146, P0147, P0156-P0158, P0160, P1133, P1134, P1137, P1138, P1143, P1144, P1157, P1158, P2270-P2273 HO2S: Inspection (Steps 5-8)

Courtesy of MAZDA MOTORS CORP.

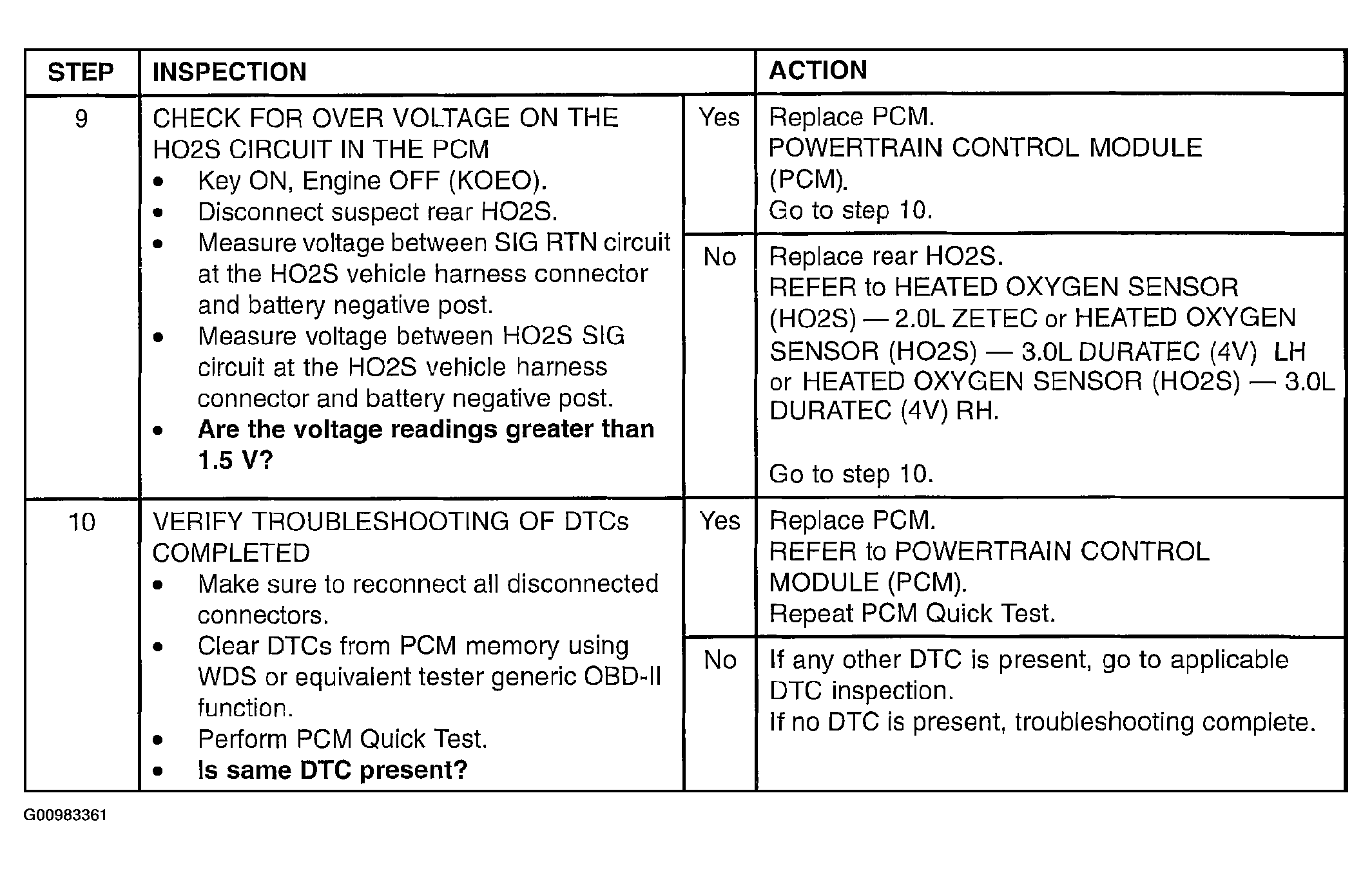

Fig 5: DTC P0037, P0043, P0136, P0140, P0142, P0146, P0147, P0156-P0158, P0160, P1133, P1134, P1137, P1138, P1143, P1144, P1157, P1158, P2270-P2273 HO2S: Inspection (Steps 9-10)

Courtesy of MAZDA MOTORS CORP.
