DTC P0032, P0051, P0052, P0057, P0058, P0134, P0135, P0141, P0155, P0161, P1135, P1136, P1141, P1142, P1153, P1154, P1169, P1170: Ho2S Heater Circuit

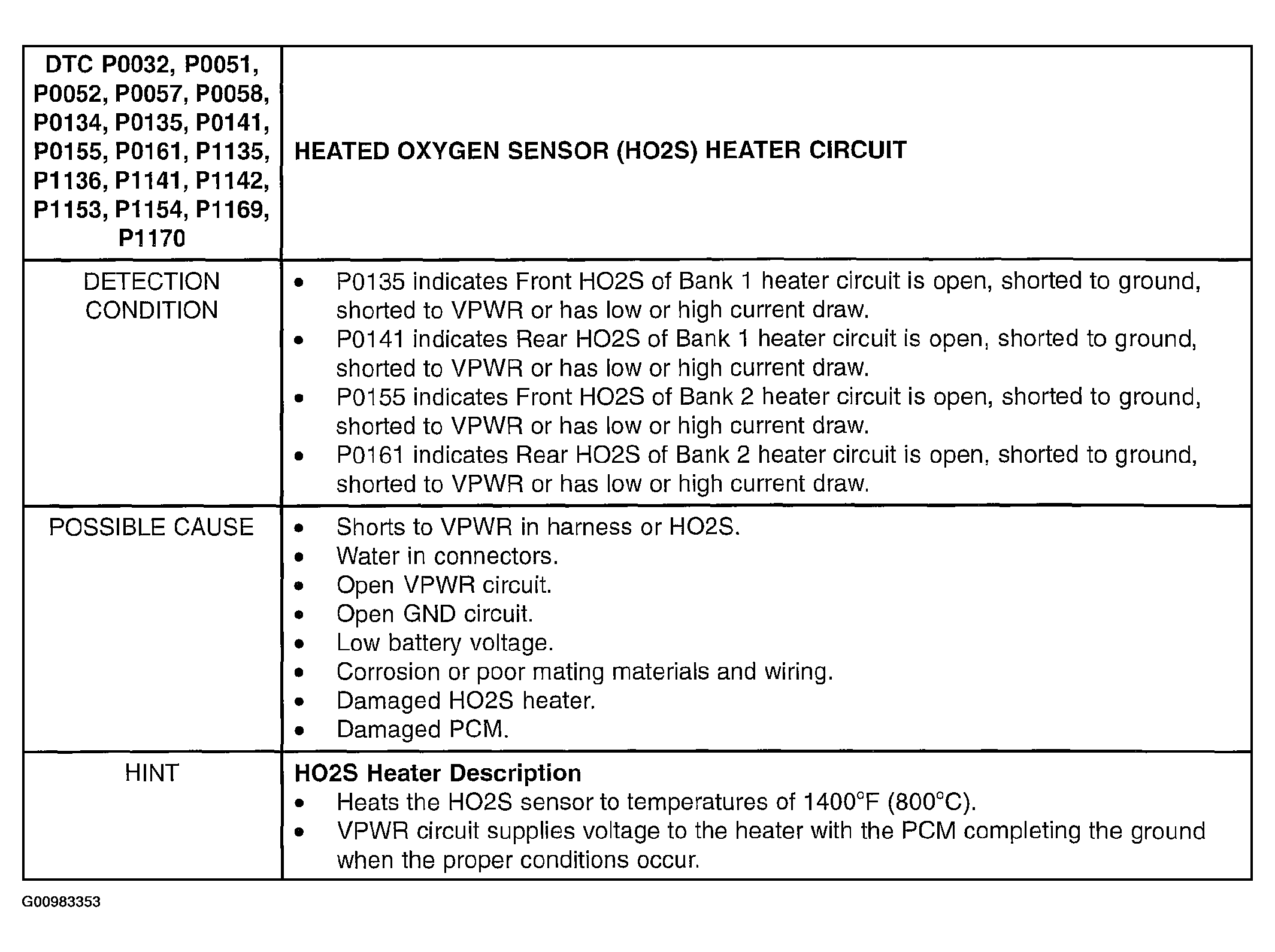

Fig 1: DTC P0032, P0051, P0052, P0057, P0058, P0134, P0135, P0141, P0155, P0161, P1135, P1136, P1141, P1142, P1153, P1154, P1169, P1170 HO2S Heater Circuit: Detection Condition, Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

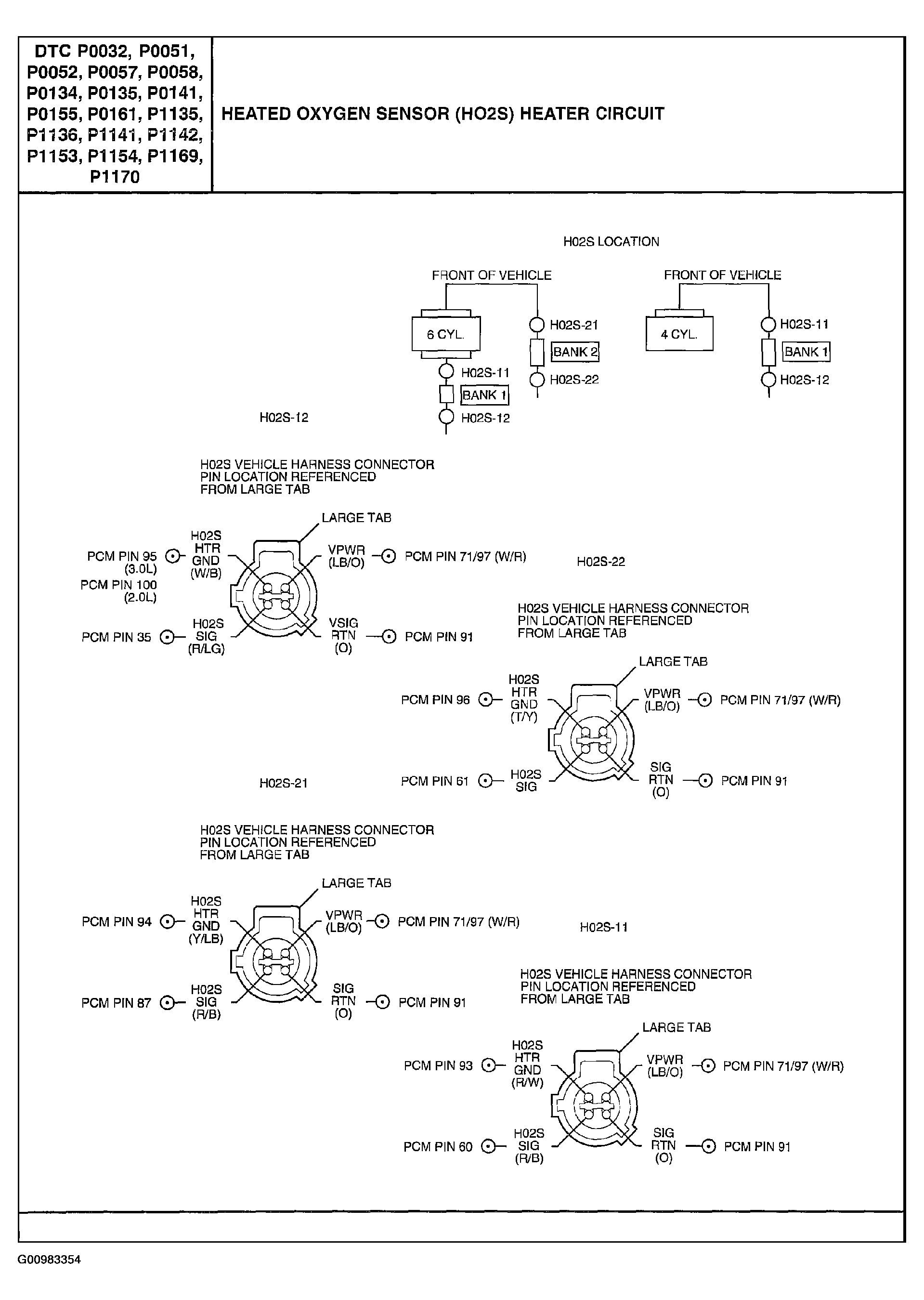

Fig 2: DTC P0032, P0051, P0052, P0057, P0058, P0134, P0135, P0141, P0155, P0161, P1135, P1136, P1141, P1142, P1153, P1154, P1169, P1170 HO2S Heater Circuit: HO2S Location & Connector Views

Courtesy of MAZDA MOTORS CORP.

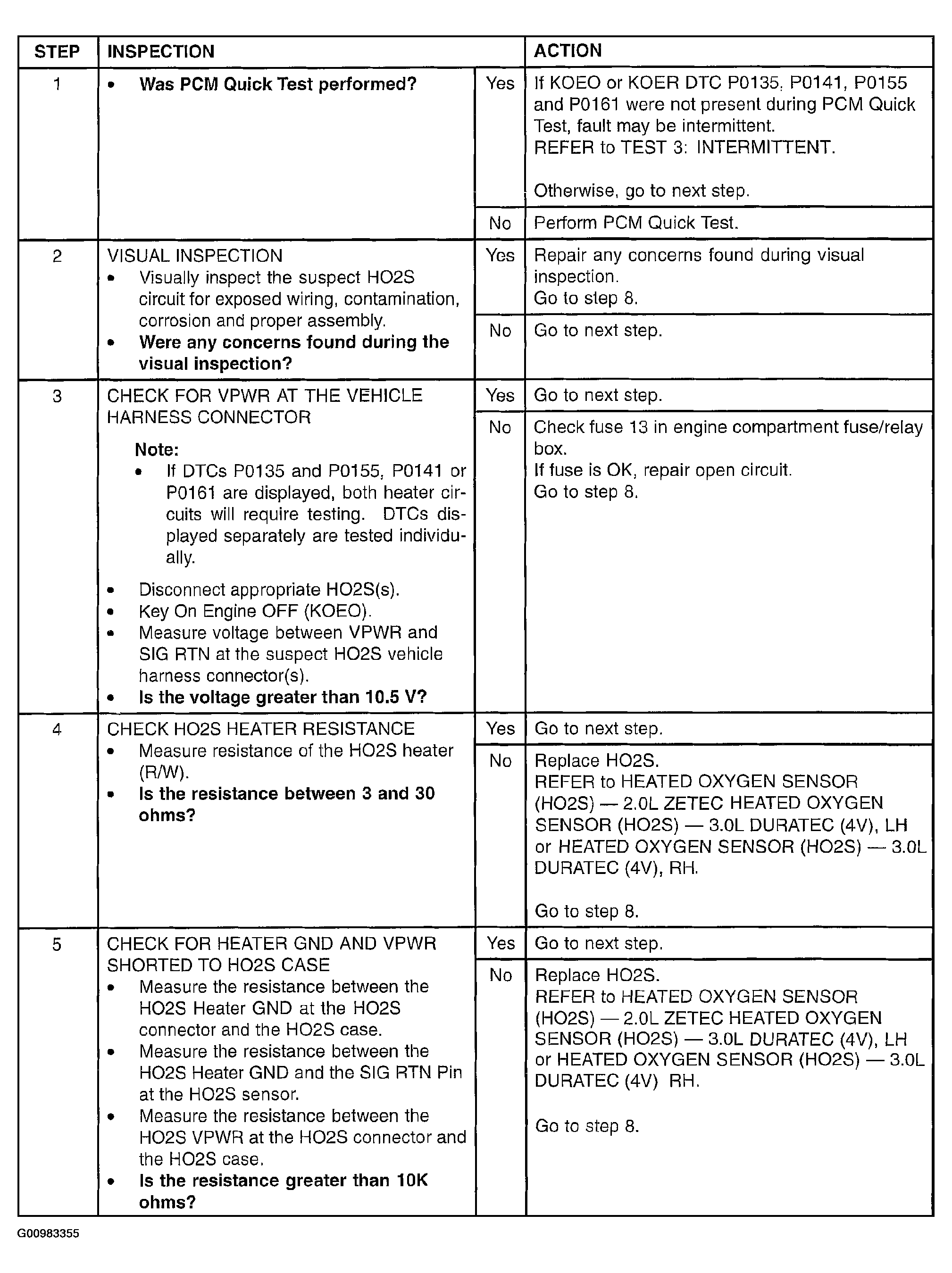

Fig 3: DTC P0032, P0051, P0052, P0057, P0058, P0134, P0135, P0141, P0155, P0161, P1135, P1136, P1141, P1142, P1153, P1154, P1169, P1170 HO2S Heater Circuit: Inspection (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

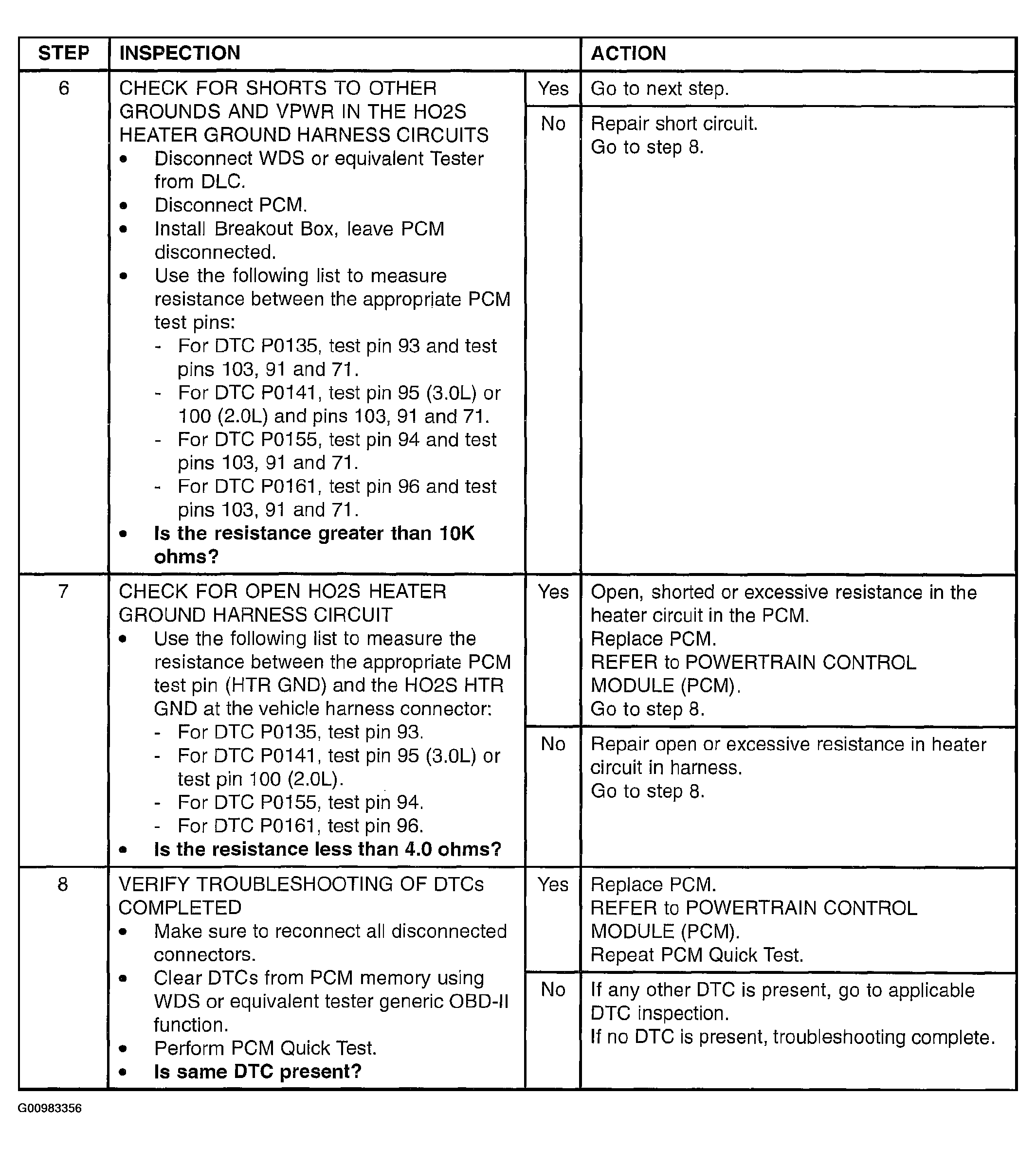

Fig 4: DTC P0032, P0051, P0052, P0057, P0058, P0134, P0135, P0141, P0155, P0161, P1135, P1136, P1141, P1142, P1153, P1154, P1169, P1170 HO2S Heater Circuit: Inspection (Steps 6-8)

Courtesy of MAZDA MOTORS CORP.
